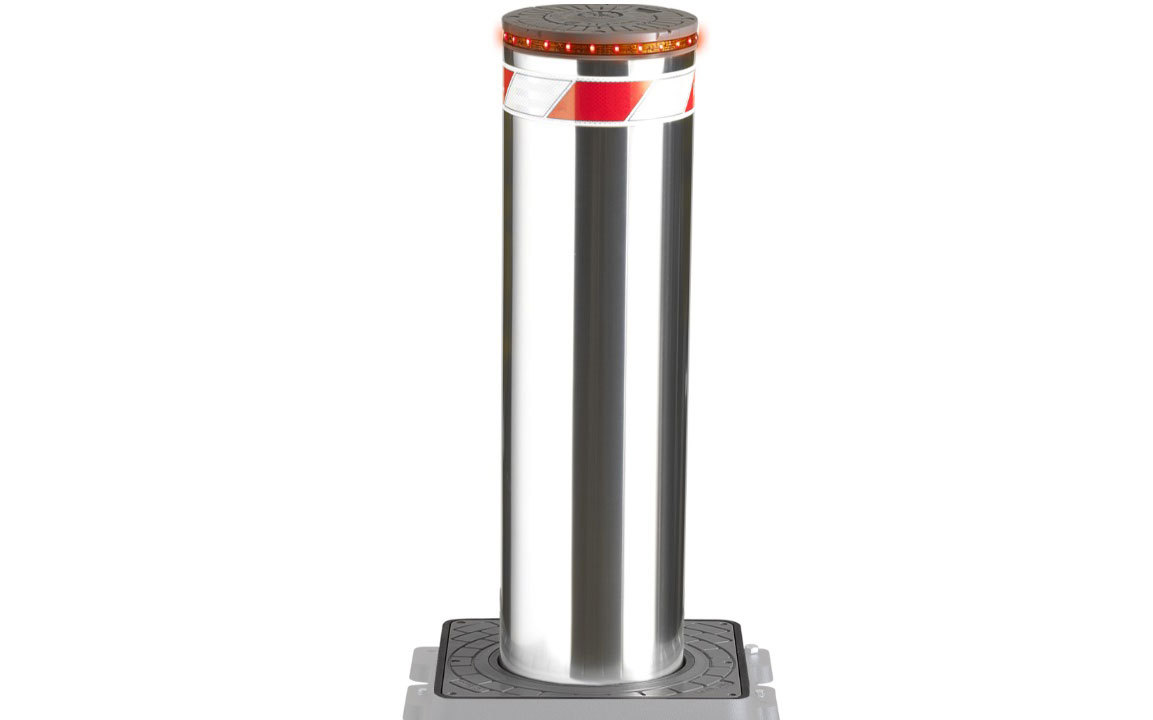

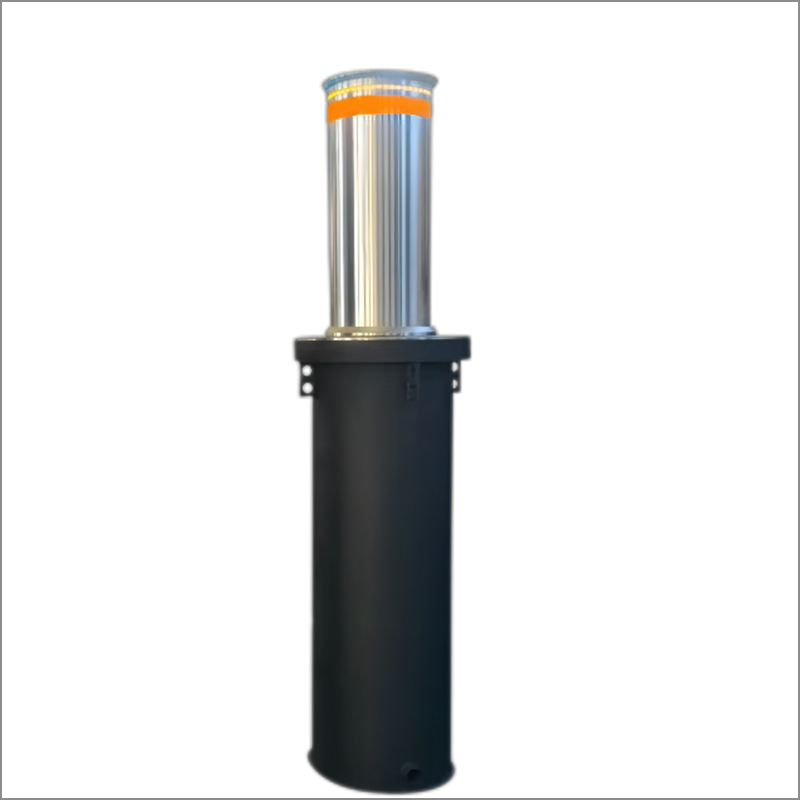

220GS-600 Automatic Hydraulic Bollard

Product Description

GS hydraulic Rising Bollard is an electric-hydraulic-mechanically operated retractable bollard system.The system can be quickly and easily operated. It is suitable for both security and access control applications.The system is designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter access without providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.

The 220-GS600 Hydraulic Automatic Bollard is a heavy-duty vehicle access control solution designed to provide reliable perimeter protection and controlled entry management for high-security environments.


This automatic rising bollard is powered by a stable hydraulic drive system and constructed with a SUS304 stainless steel rising cylinder, ensuring excellent corrosion resistance, structural strength, and long-term durability. The bollard is engineered to withstand intensive daily operation and harsh outdoor conditions, making it suitable for continuous use in security-critical locations.

The system features a fully integrated PLC control cabinet, allowing seamless connection with multiple access control and security systems, including RFID card readers, license plate recognition (LPR) systems, traffic signal lights, inductive loop detectors, and central security management platforms. Authorized vehicles can be granted access smoothly, while unauthorized vehicles are effectively blocked.

With an IP68 waterproof and dustproof rating, the 220-GS600performs reliably in rain, snow, dust, and extreme temperature environments. The fast response time ensures efficient traffic flow without compromising security. In the event of a power failure, the emergency lowering function allows the bollard to retract safely, maintaining operational flexibility and safety.

Equipped with integrated LED warning lights and optional reflective strips, the bollard offers high visibility to drivers and pedestrians, enhancing safety during both day and night operation. The system supports customization options, including rising height, surface finish, logo engraving, heating systems, and control logic, enabling it to meet the specific requirements of different projects.

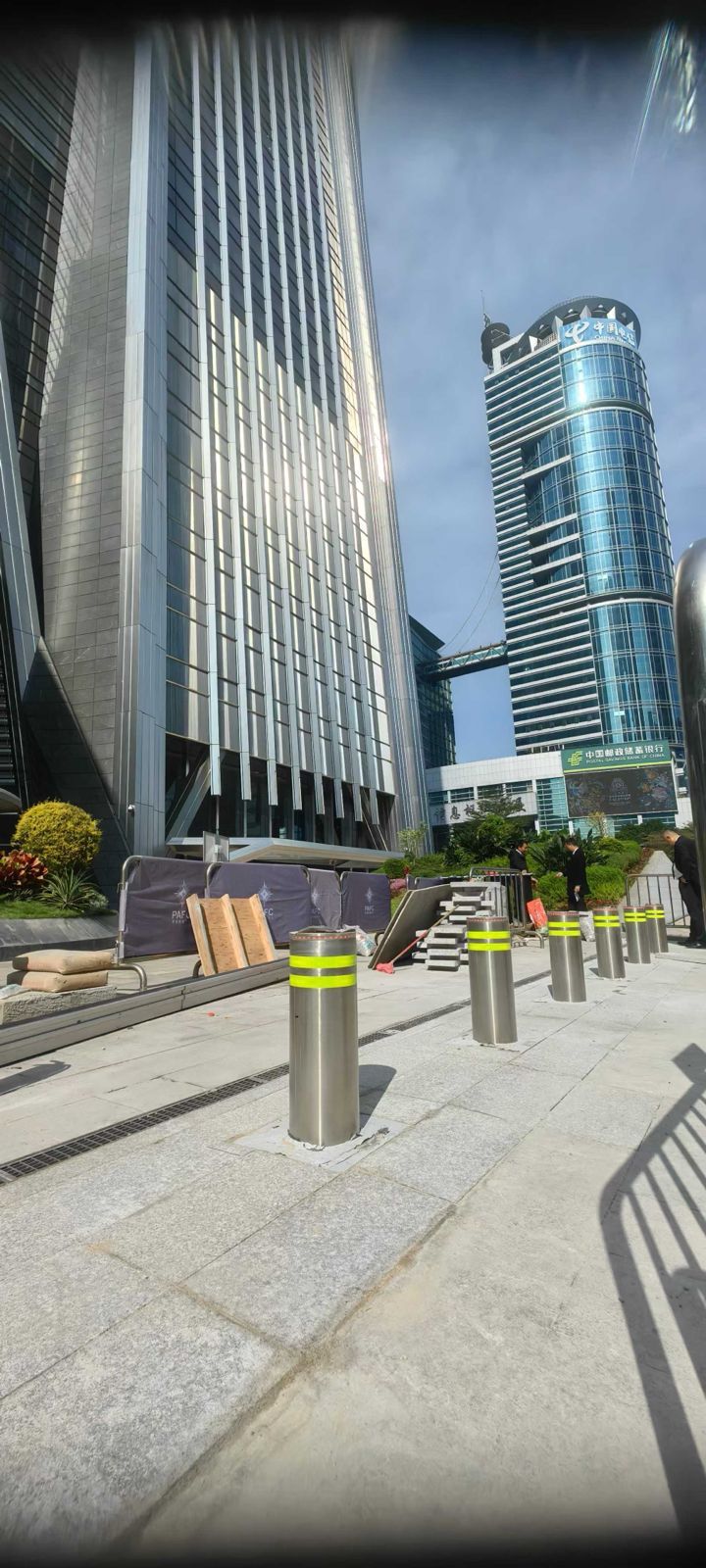

The 220-GS600 Hydraulic Automatic Bollard is widely used in government facilities, military bases, airports, ports, commercial buildings, industrial parks, and restricted vehicle access zones, providing a professional and dependable solution for modern vehicle access control and perimeter security.

100% Duty Rated hydraulic Rising Bollards: designed for continuous and frequent use. Power is supplied from a three phase 380V power supply as standard. GS Automated Rising Bollards flagship rising bollard combines exceptional strength with elegance. The bollards pleasing aesthetics enhance the look of the area, a non-stop duty cycle ensures lasting performance, whilst the added safety pressure switch offers additional protection.

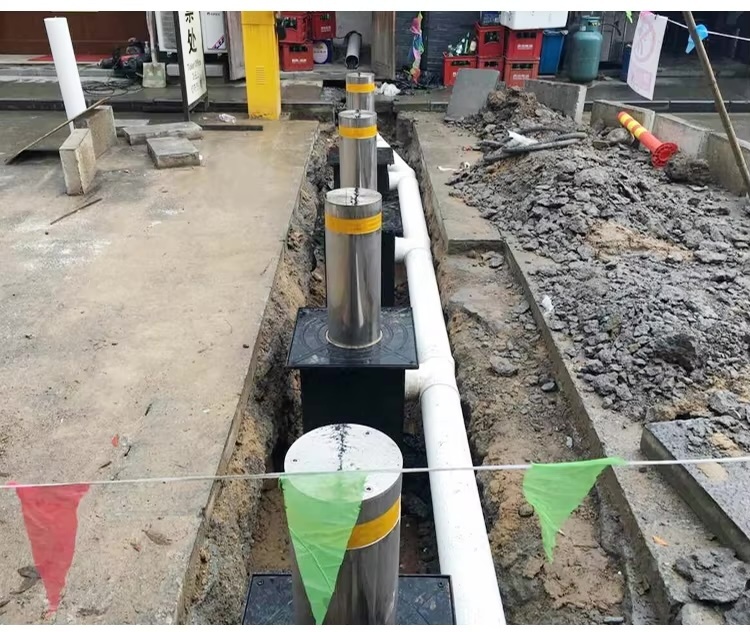

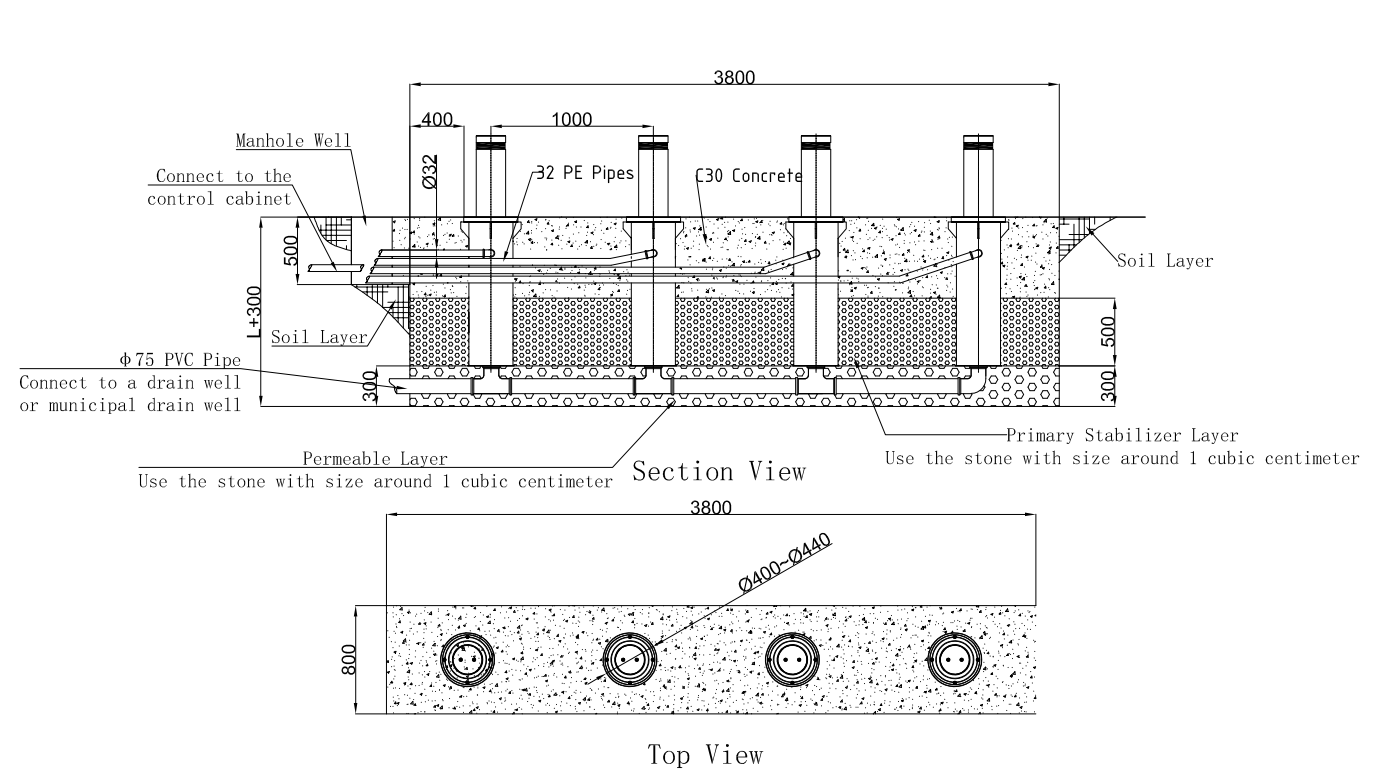

• Cut the ground surface and excavate,the foundation base need around 800mm and 1130mm.
• Fill the bottom with 20-30mm pebble and sand as water seepage stratum.
• Embed the bollard,make sure the head of the bottom is at the same level with the horizontal ground.
• Install the wiring tube and drainage pipe.Make sure each wire should be secured by waterproof tape.
• to avoid water vapor permeated into the wire.
• Power on to test. Make sure the bollards can work well.Then cover the head of the bollard to avoid the concrete dirty it.All the drainage pipe hole need to be covered by structural adhesive.
• Pour the concrete into the foundation base.Be careful to avoid the movement of bollard.
• Tidy up the bollard head and ground surface, complete installation.
