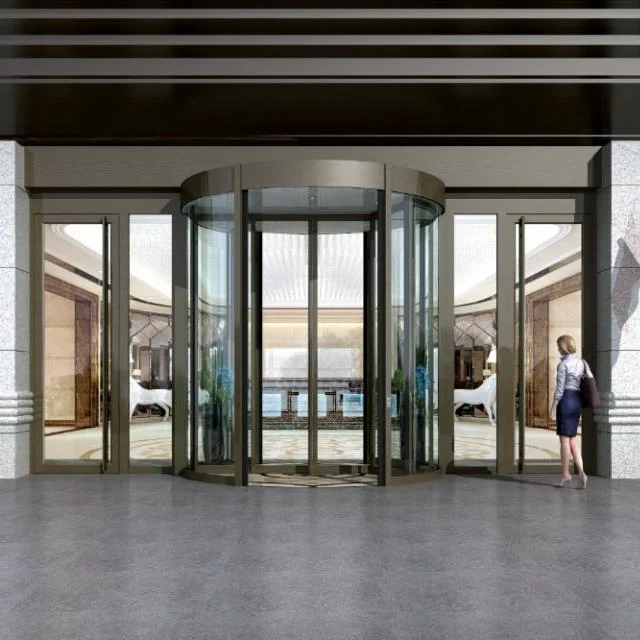

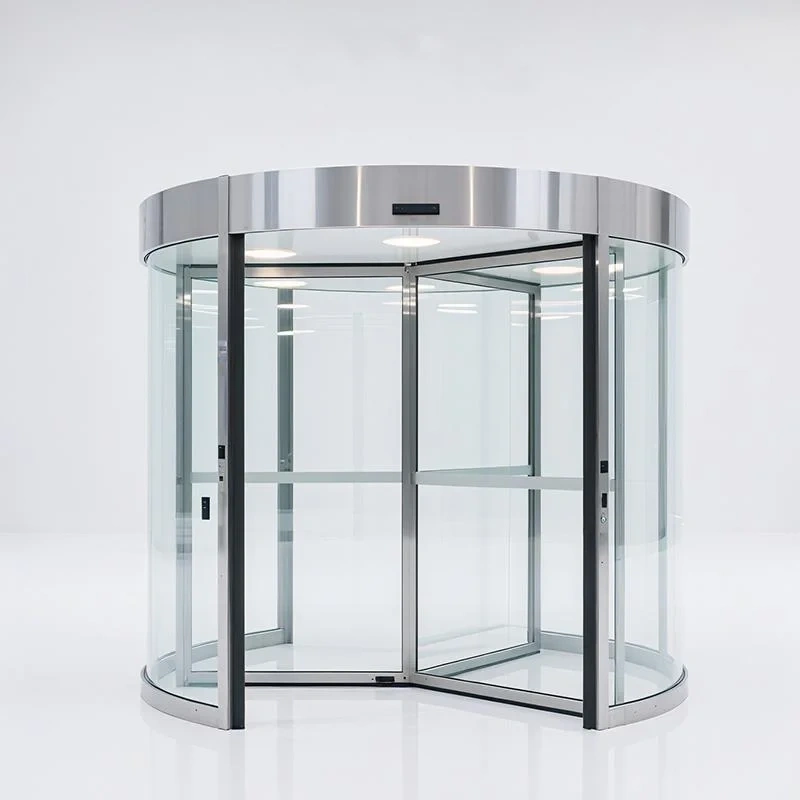

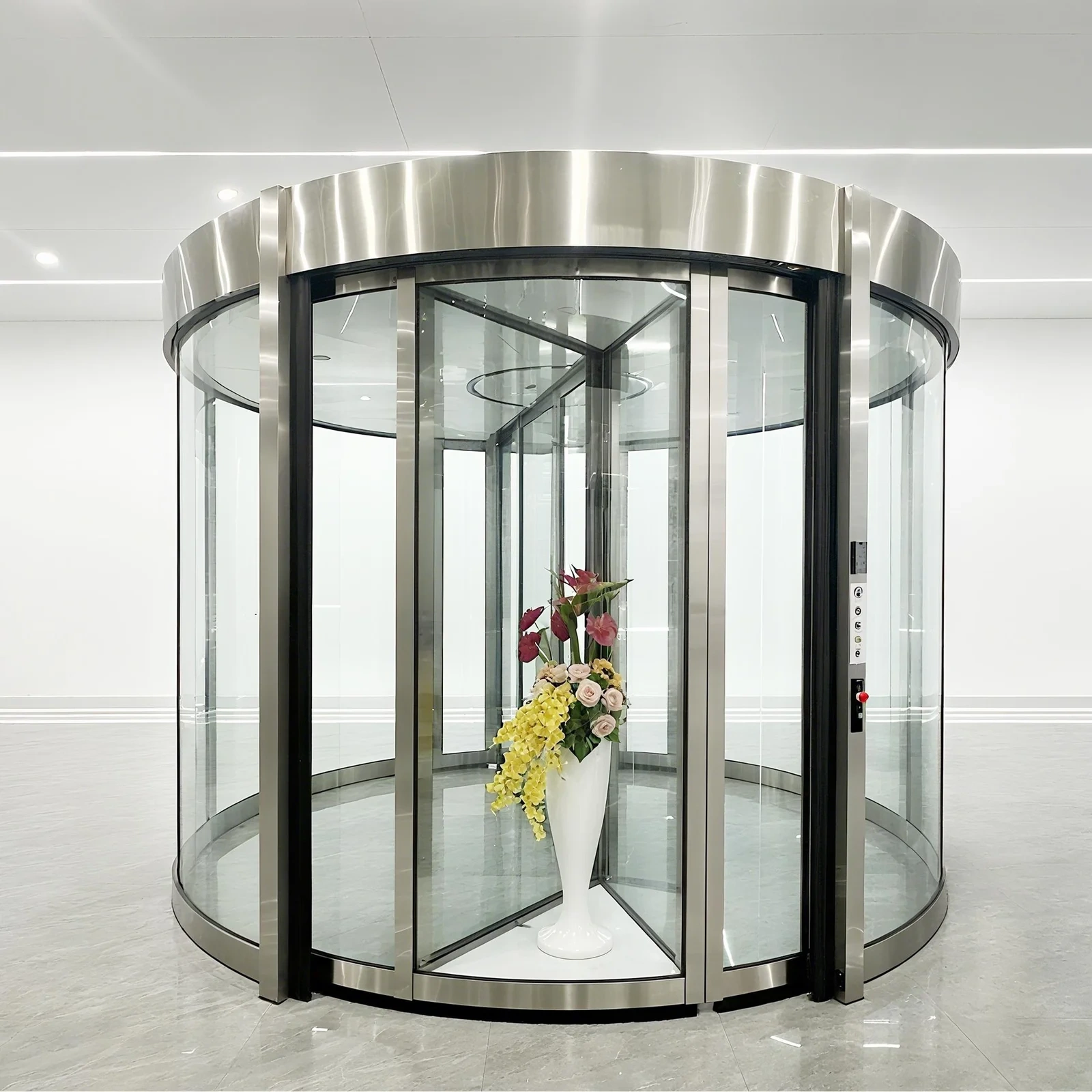

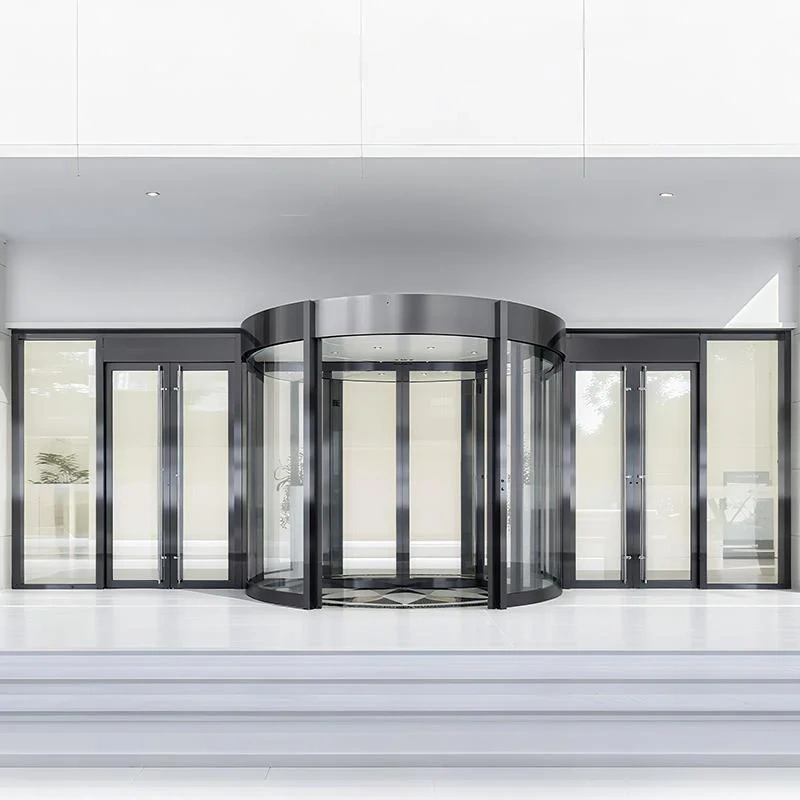

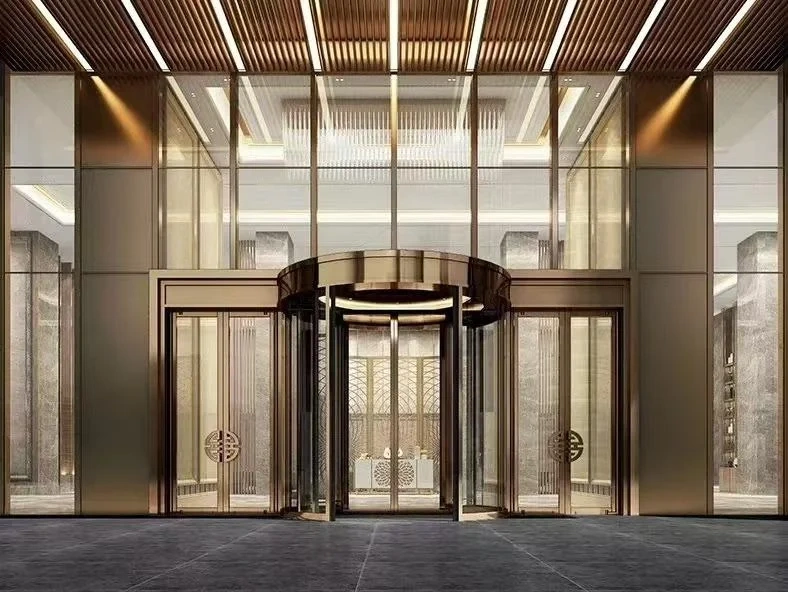

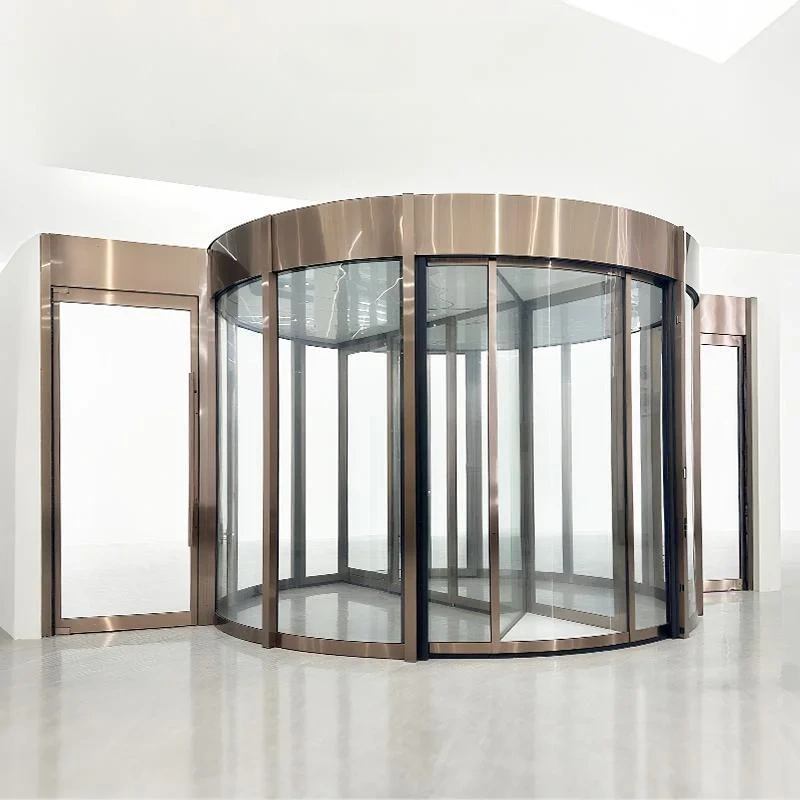

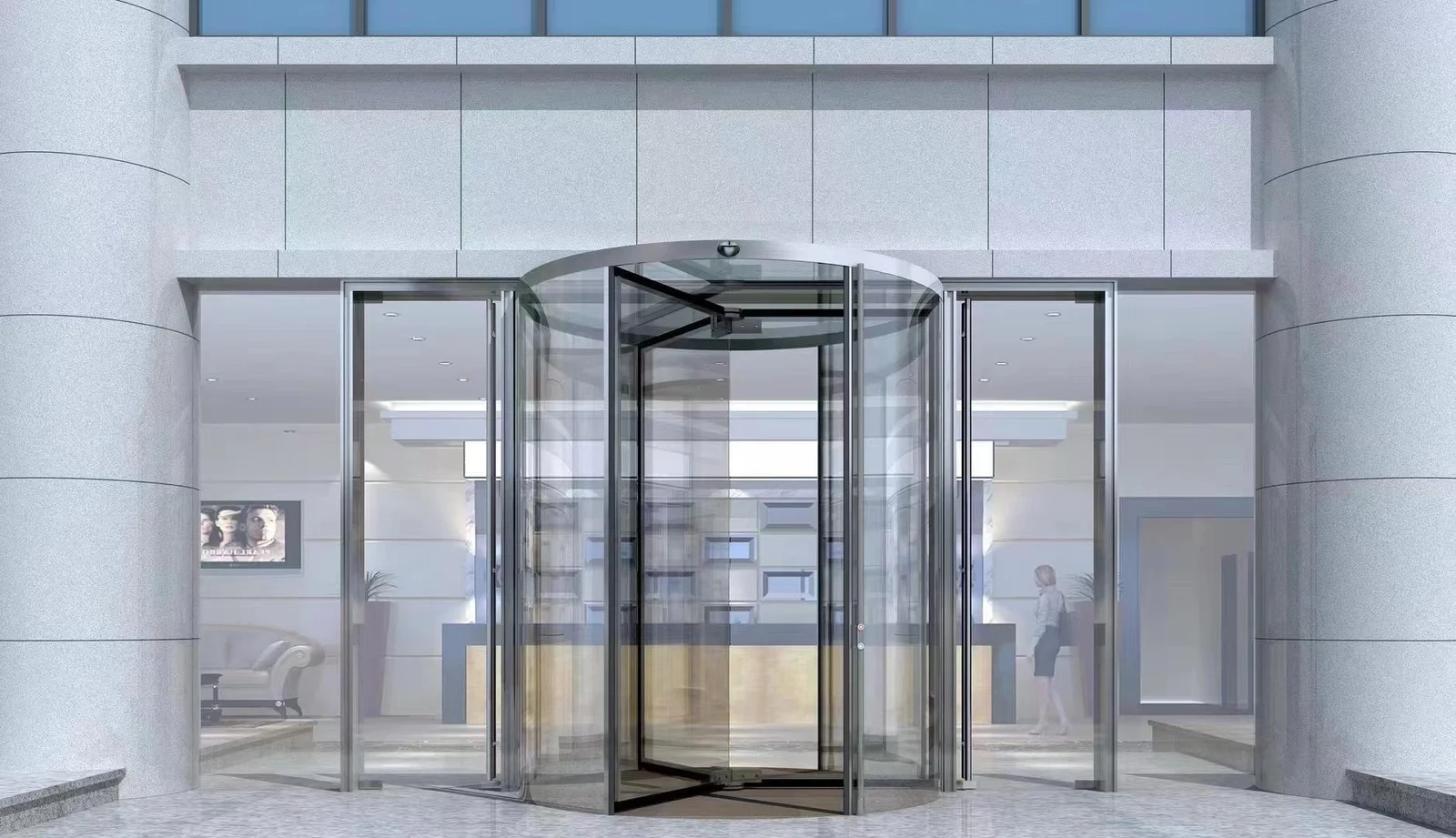

GS8500 Automatic Revolving Door

Product Overview

The GS8500 Automatic Revolving Door is designed to meet the demands of high pedestrian flow and premium architectural entrances.

Built with a high-strength 6063-T5 aluminum alloy frame and equipped with an intelligent sensing control system, GS8500 delivers smooth, stable, and contactless automatic rotation.

Powered by international first-tier components, including high-performance motors and safety sensors from Germany and Japan, GS8500 ensures long-term reliability, safety, and comfort even under continuous operation.

It is widely used in office buildings, shopping malls, hotels, banks, exhibition centers, and government buildings, where both traffic efficiency and building image are critical.

Intelligent Operation & Safety Design

GS8500 supports multiple operation modes to adapt to seasonal and functional requirements, including idle modes, low-speed rotation, automatic sliding, and emergency evacuation.

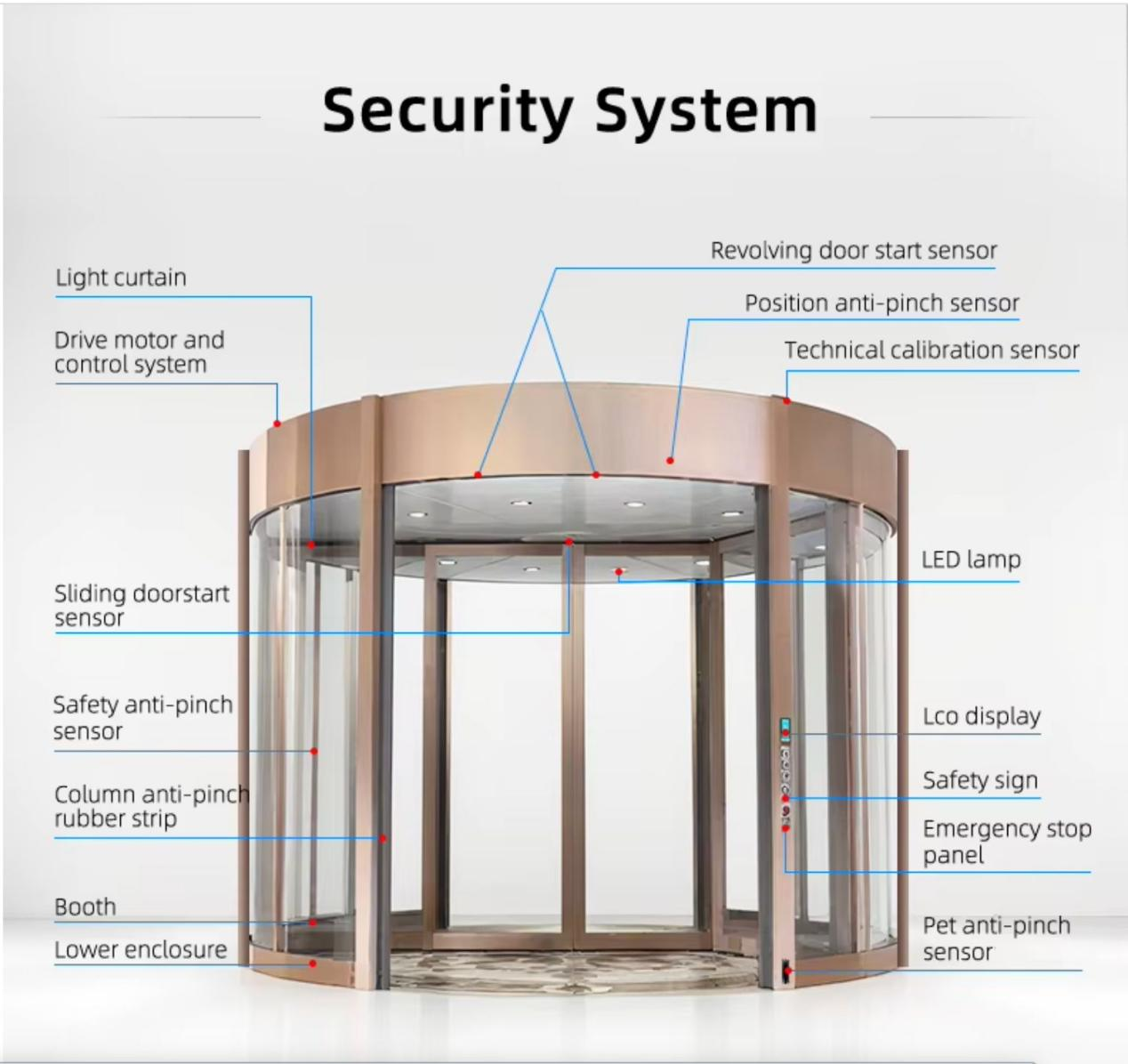

Advanced anti-pinch safety sensors continuously monitor pedestrian movement, ensuring safe passage for adults, children, and elderly users.

Premium Materials & Architectural Aesthetics

The revolving door structure combines aluminum alloy framing, steel crossbeam reinforcement, and tempered safety glass, delivering both structural strength and elegant appearance.

Multiple façade finish options allow seamless integration with different architectural styles, enhancing the overall building grade and visual impact.

Key Features

Key Features of GS8500 Automatic Revolving Door

• High-strength 6063-T5 aluminum alloy frame

• Intelligent sensing control system

• Smooth and contactless automatic rotation

• International first-tier brand components

• Advanced anti-pinch safety protection

• Multiple operation and idle modes

• Supports emergency evacuation

• Designed for continuous high-traffic operation

Applications

Typical Application Scenarios

GS8500 is ideal for high-traffic and image-sensitive buildings, including:

• Office buildings and corporate headquarters

• Shopping malls and commercial complexes

• Hotels and hospitality facilities

• Banks and financial institutions

• Exhibition and convention centers

• Government and public buildings

Technical Specifications

Structure & Materials

• Frame: 6063-T5 aluminum alloy

• Crossbeam: Steel structure

• Vertical column thickness: 5 mm

• Glass: 8 mm tempered glass (optional)

Main Components

• Main motor: Germany LENZE

• Sliding door unit: Germany dormakaba

• Safety sensors: OMRON (Japan), P+F (Germany), Panasonic (Japan)

Electrical Data

• Voltage: AC 220V / 50Hz

• Current: 6A

• Power rating: 1200W

• Motor power: 250W × 2

• Sliding door power: 100W

• Lighting power: 400W

Size Options & Operation Modes

Standard Size Options (Unit: mm)

Notes

• Two-wing revolving door with display case: inner diameter 3600–4800 mm

• Two-wing without display case: inner diameter 3000–3600 mm

• Custom sizes available upon request

Operation Modes

• Slant (spring & autumn idle mode)

• Close (winter idle / night lock)

• Mid-pending (summer idle)

• Low-speed rotation

• Automatic sliding

• Sliding door hold-open
