GS3300-3D Under Vehicle Surveillance System (3D UVSS)

GS3300-3D Under Vehicle Surveillance System

The GS3300-3D Under Vehicle Surveillance System (3D UVSS) is a high-performance vehicle undercarriage inspection solution designed for high-security and mission-critical checkpoints.

It is engineered to deliver accurate, distortion-free 3D images of vehicle undersides, enabling security personnel to identify concealed threats quickly and reliably.

Unlike conventional line-scan UVSS systems, GS3300-3D utilizes dual tilted area-scan imaging technology, ensuring consistent image quality regardless of vehicle speed. This makes it especially suitable for high-traffic inspection pointswhere both security and efficiency are critical.

Advanced 3D Imaging Technology

GS3300-3D captures undercarriage images from multiple angles and automatically generates a true 3D composite viewof the vehicle underside.

This allows operators to clearly inspect complex structures such as:

• Chassis frames

• Fuel tanks

• Exhaust systems

• Axles and suspension components

• Hidden cavities and modified compartments

The 3D visualization significantly improves detection accuracy compared to traditional 2D systems, reducing missed threats and false alarms.

High-Speed & Bi-Directional Vehicle Inspection

Designed for modern security operations, GS3300-3D supports:

• Vehicle inspection speeds up to 60 km/h

• Bi-directional scanning without image distortion

• Continuous operation at busy checkpoints

The system maintains stable performance even when vehicles do not maintain constant speed, ensuring reliable inspection results under real-world conditions.

Intelligent Software & Data Management

The GS3300-3D system is equipped with professional inspection software that enhances operational efficiency:

• Real-time image display and zoom

• Historical image comparison for anomaly detection

• Automatic image archiving and database management

• Integration with License Plate Recognition (LPR) systems

• Support for networked data storage and centralized monitoring

These features enable security teams to conduct fast, consistent, and auditable vehicle inspections.

Flexible System Configuration

GS3300-3D can be customized to meet site-specific security requirements.

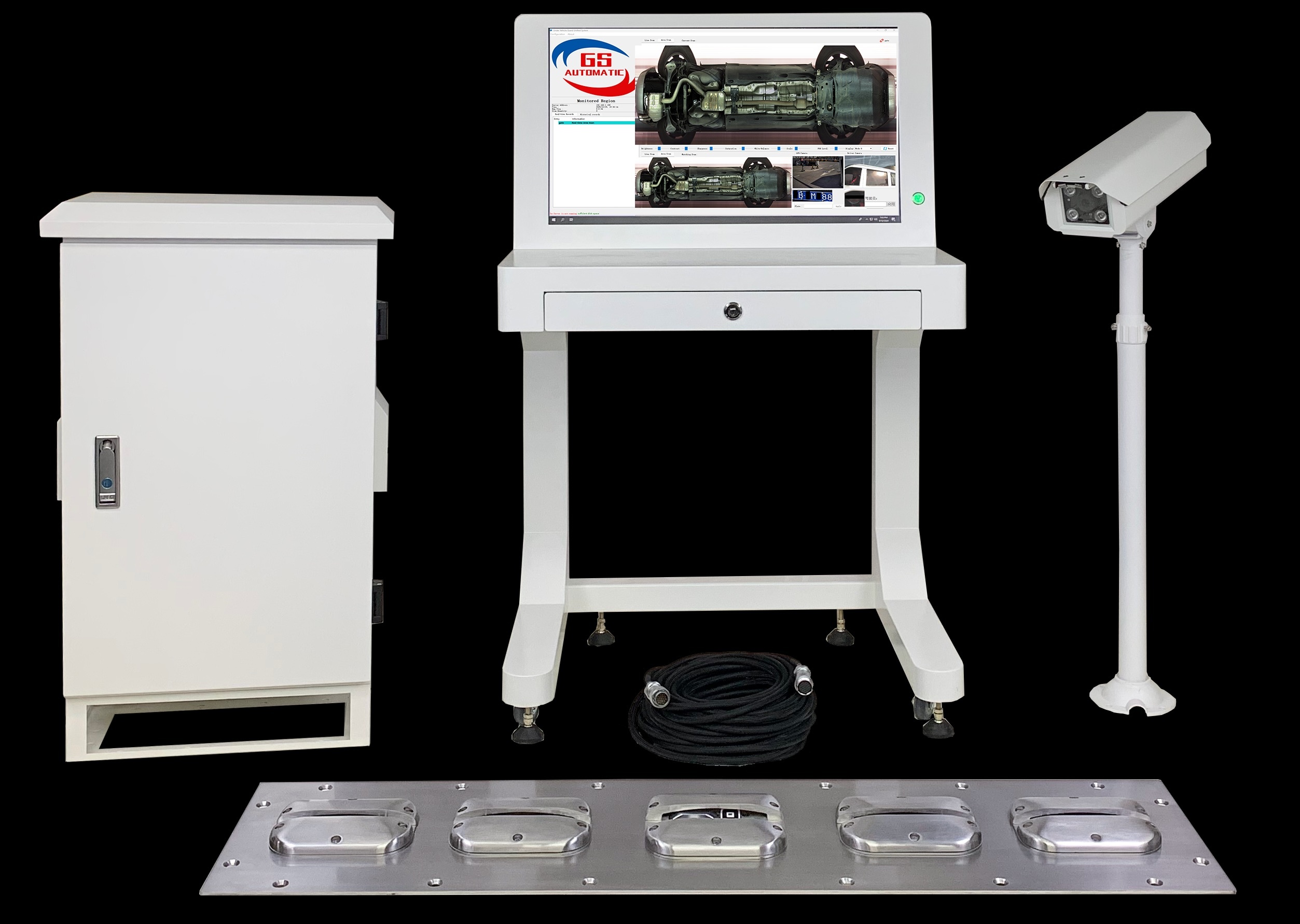

Typical system configuration includes:

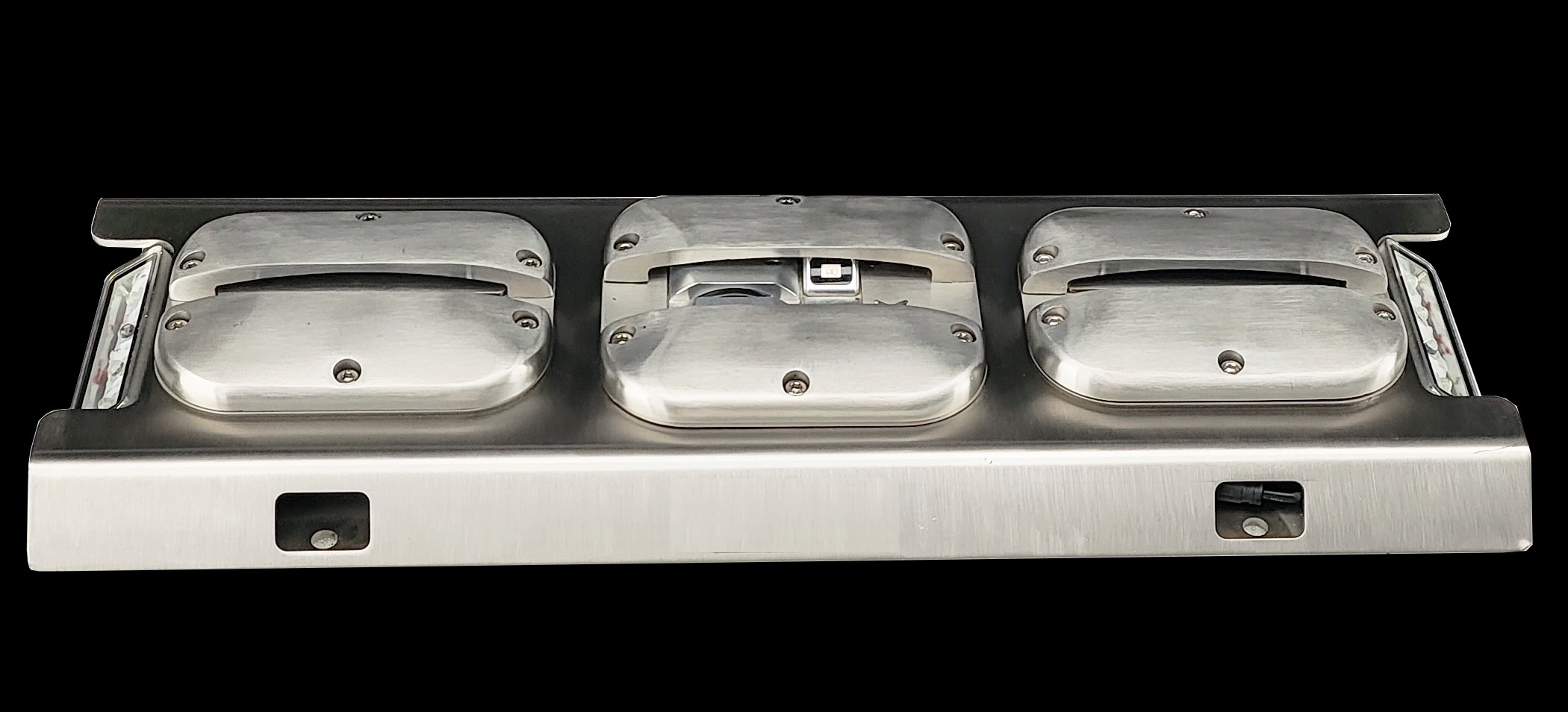

• Dual embedded 3D UVSS scanners

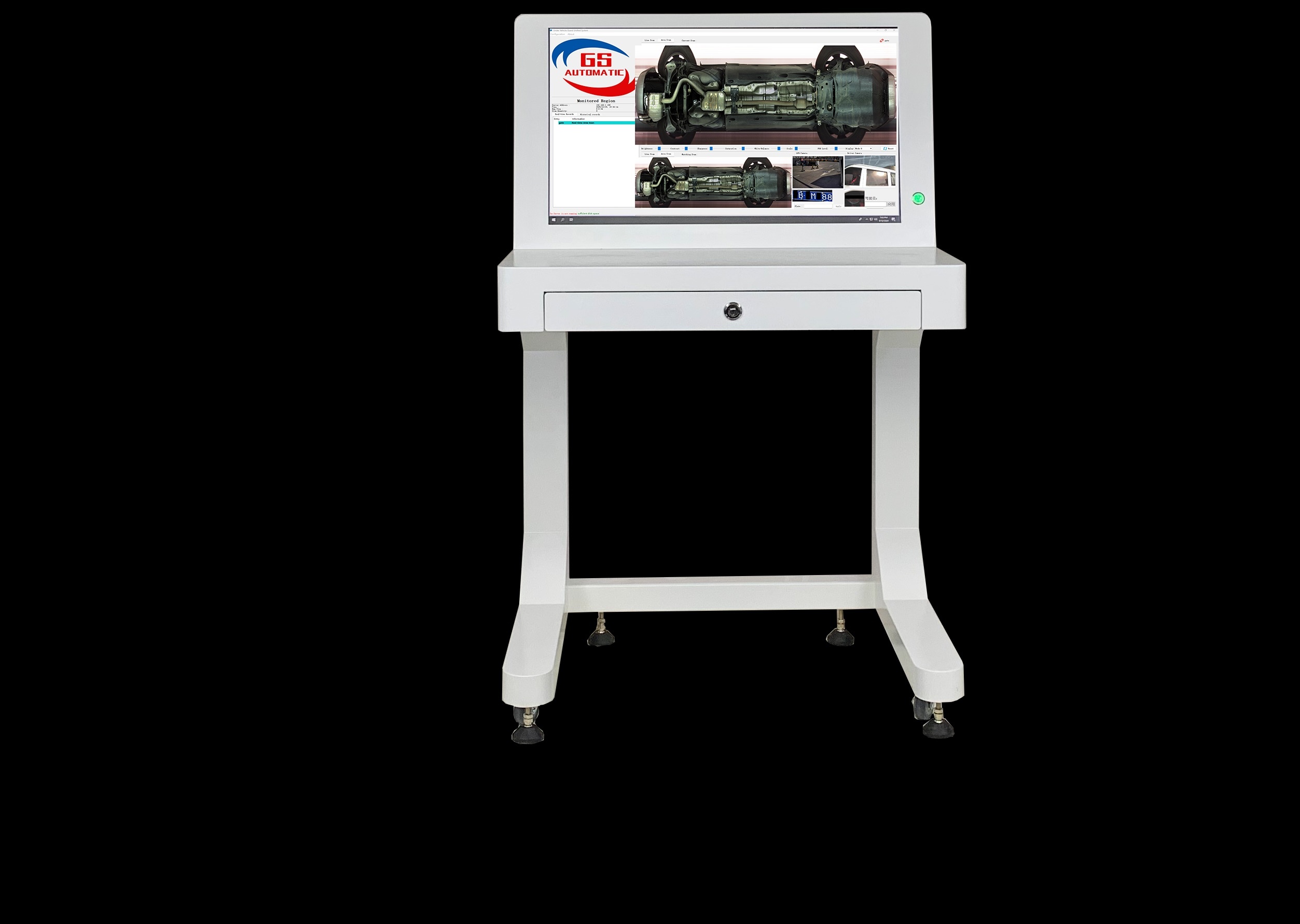

• Central control workstation

• Professional inspection and management software

• Optional LPR cameras

• Optional overview or surveillance cameras

The modular design allows seamless integration into new or existing checkpoint infrastructure.

Typical Applications

GS3300-3D is widely deployed in environments requiring high-level vehicle security screening, including:

• Border control and customs checkpoints

• Military bases and defense facilities

• Government buildings and embassies

• Airports, ports, and transportation hubs

• Critical infrastructure and industrial zones

It is particularly suitable for locations with high vehicle throughput and strict security standards.

Professional Support & Services

GS Automatic provides complete lifecycle support for GS3300-3D systems, including:

• Pre-sales technical consultation

• System design and configuration guidance

• Installation support and operator training

• Long-term maintenance and after-sales service

Our engineering-driven approach ensures that each deployment meets both operational and regulatory requirements.

Request a Free Technical Consultation
• Project details kept strictly confidential
• Engineering-level technical support
• Response within 12 hours

Product Overview

GS3300-3D is designed to meet the demanding requirements of modern vehicle security inspection.

The system captures multiple viewing angles of a vehicle’s undercarriage using dual area-scan technology,
creating a complete and realistic 3D image. This enables operators to identify suspicious objects hidden
in complex vehicle structures such as fuel tanks, exhaust systems, chassis frames, and bumpers.

With support for bi-directional scanning and high-speed vehicle inspection, GS3300-3D significantly improves
checkpoint efficiency while maintaining a high level of security accuracy.

Key Features & Advantages

• Dual area-scan imaging technology for true 3D undercarriage visualization
• Distortion-free images independent of vehicle speed
• High-speed vehicle inspection up to 60 km/h
• Bi-directional scanning support
• Automatic license plate recognition (LPR) integration
• Intelligent image comparison and archive management
• Optional surrounding cameras for full situational awareness
• Designed for continuous 24/7 operation in harsh environments

Applications

GS3300-3D is widely deployed in high-security and high-traffic environments, including:

System Configuration & Support

GS3300-3D can be flexibly configured to match site-specific security requirements.

System components may include:
• Dual 3D UVSS scanners (embedded installation)
• Central control workstation with professional inspection software
• License plate recognition (LPR) camera
• Optional surveillance and overview cameras
• Networked data storage and image management system

GS Automatic provides full technical support, including system design consultation, installation guidance,
operator training, and long-term after-sales service.
