It combines area scan and line scan technologies to deliver high-resolution, real-time chassis inspection, even under harsh environments and high-speed traffic conditions.
Ideal for government, military, transportation hubs, borders, and critical infrastructure facilities.

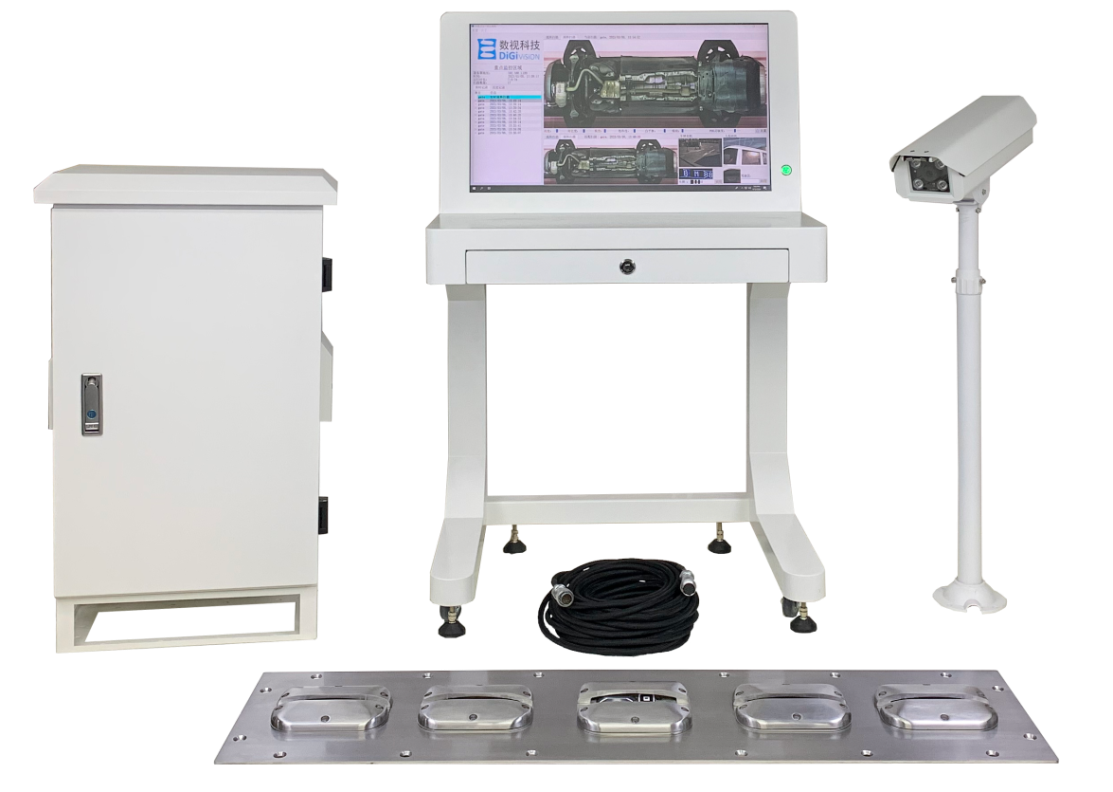

The GS3300-DFC Dual Mode UVSS is a flush-mount under vehicle scanning system consisting of an under vehicle scanner, license plate recognition camera, operation desk, and distribution box.
After installation, the stainless-steel scanner surface is less than 3 cm above ground, ensuring no impact on vehicle movement, including buses, trucks, vans, and passenger vehicles.
The system provides high-precision inspection of vehicle chassis to detect suspicious objects or contraband such as weapons, explosives, or illegal goods.
Optional surrounding cameras and LPR functions deliver full situational awareness from multiple directions.
Dual Scan System Introduction
GS3300-DFC is a Dual Scan Under Vehicle Scanning System, which can generate area scan image and line scan image simultaneously and thus have benefits from both technology.
Line scan technology guarantee high image generation rate, regardless of harsh environment and lens contamination.
Area scan technology let scan images not affected by vehicle speed change, will generate identical images for same vehicle, and make it possible for further AI algorithm.
Advantages
Dimension Drawing
Dual scan system generating area scan and line scan images simultaneously
Ultra-high resolution output up to 4096P color imaging
Real-time image display during vehicle scanning
Supports bi-directional vehicle inspection
Integrated bi-directional license plate recognition
Handles vehicles of any length and various chassis heights
Built with 304 stainless steel, suitable for harsh outdoor environments
IP68 protection level, waterproof and dustproof
Modular design allows replacement within 10 minutes
Dual technology advantage
Combines the stability of line scan with the consistency of area scan imaging
High-speed inspection capability
Supports vehicle speeds up to 100 km/h without image distortion
Minimal civil construction
Ultra-slim design requires excavation of less than 5 cm
Consistent imaging quality
Images remain stable regardless of speed variations
Future-ready AI compatibility
Identical image outputs enable further AI-based analysis
UVDM260-DFC is widely deployed in:
Government & military checkpoints
Border control & customs inspection stations
Airports & transportation hubs
Critical infrastructure facilities
Industrial parks & logistics centers
High-security corporate entrances
Designed for continuous operation in demanding security environments.
Scan speed (Area): Forward / Backward 0–100 km/h
Scan speed (Line): Forward / Backward 0–20 km/h
Height clearance: 50–2000 mm
Vehicle width: < 4500 mm
Vehicle length: Unlimited
View angle: >180°
Image resolution: > 10000 × 4096
Capture rate: >99.9%
Load bearing: 40 tons
Protection level: IP68
Operating temperature: -40℃ to 70℃
Resolution: 1920 × 1080
Recognition accuracy: >99.5%
Video codec: H.264 / H.265
Protection level: IP65
