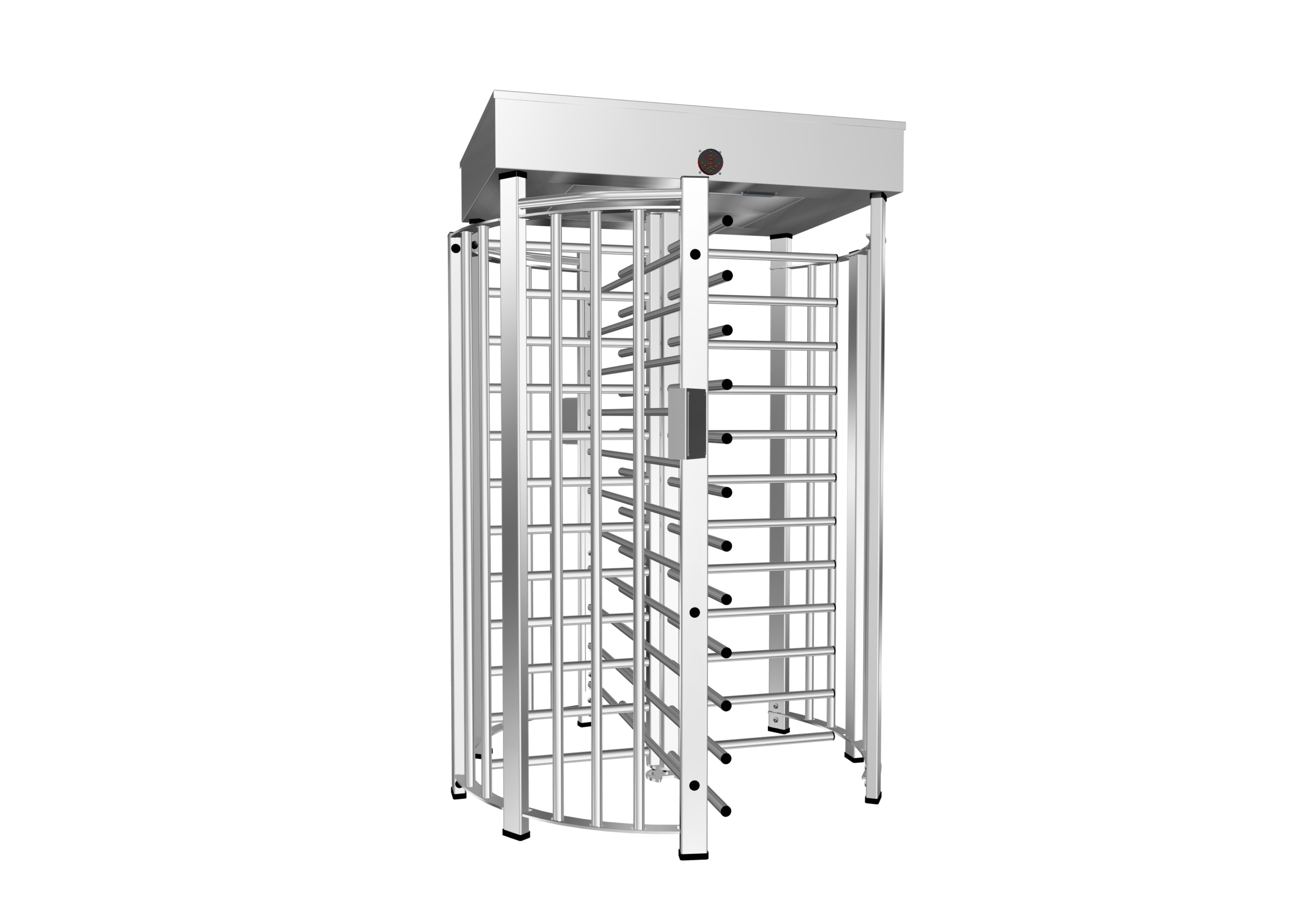

GS G535 Full Height Turnstile for Perimeter Access Control

GS G535 Full Height Turnstile

High-Security Perimeter Access Control Solution for EPC Projects

The GS G535 Full Height Turnstile is designed to control pedestrian entry and exit in high-security and perimeter-controlled environments.

Its full-height cage construction effectively prevents climbing, crawling, or tailgating, making it an ideal solution for industrial facilities, infrastructure projects, and restricted areas.

The turnstile is designed as a modular system, allowing easy on-site assembly without heavy lifting equipment, which is especially suitable for large-scale EPC and infrastructure projects.

🏗️ Robust Modular Structure

• Outer cage with vertical and “U” bar sections

• Central rotating column with 3 × 120° offset U-bar configuration

• Heavy-duty construction for long-term outdoor use

• Designed for direct installation on concrete surfaces

• Optional foundation frame available for paved areas

🔐 High-Security Access Control Logic

• Bi-directional pedestrian control

• Multiple configurable operating modes per direction:

  • Free access

  • Permanently locked

  • Locked with fail-safe or fail-secure option

  • Electrically controlled with authorization

• Automatic relocking if no passage within 20 seconds after authorization

🔗 System Integration & Communication

• Input signal: Dry Contact

• Additional interface: RS485 serial communication

• Communication distance up to 1200 meters

• Output signal available for access control system or remote counting system

• Easy integration with:

  • RFID / IC / ID card readers

  • Biometric systems

  • Push button consoles

  • Central security management systems


  📌 Customer-supplied access control devices can be easily mounted on the turnstile cage.

🚨 Emergency, Fire & Safety Functions

• Automatic unlocking or free rotation in emergency or power failure

• Fire control interface available for integration with fire alarm systems

• “Attendant Override” input allows manual bypass of access control

• Field test buttons enable local testing without access control system

🛠️ Durable Materials & Finish

• All steel components hot-dip galvanized after fabrication

• Optional powder coating in RAL 7042 grey

• Weather-resistant design for outdoor environments

• Protection level: IP65

🏢 Typical Project Applications

Perimeter security for industrial plants, power stations, oil & gas facilities, petrochemical sites, logistics hubs, data centers, ports, airports, government facilities, and critical infrastructure projects.
