GSRB5000 – High-Security Shallow Mount Hydraulic Road Blocker
GSRB5000 is a high-security shallow mount hydraulic road blocker designed for anti-ram protection and vehicle attack mitigation at sensitive access points.
With a foundation depth of only 300mm, it is ideal for sites with underground utilities, limited excavation conditions, or retrofit security upgrades.
Certified to PAS 68 & IWA 14 impact standards, GSRB5000 delivers proven stopping power, fast response time, and reliable operation for government, military, airports, embassies, and critical infrastructure.
👉 Contact us now to receive a tailored solution and quotation.

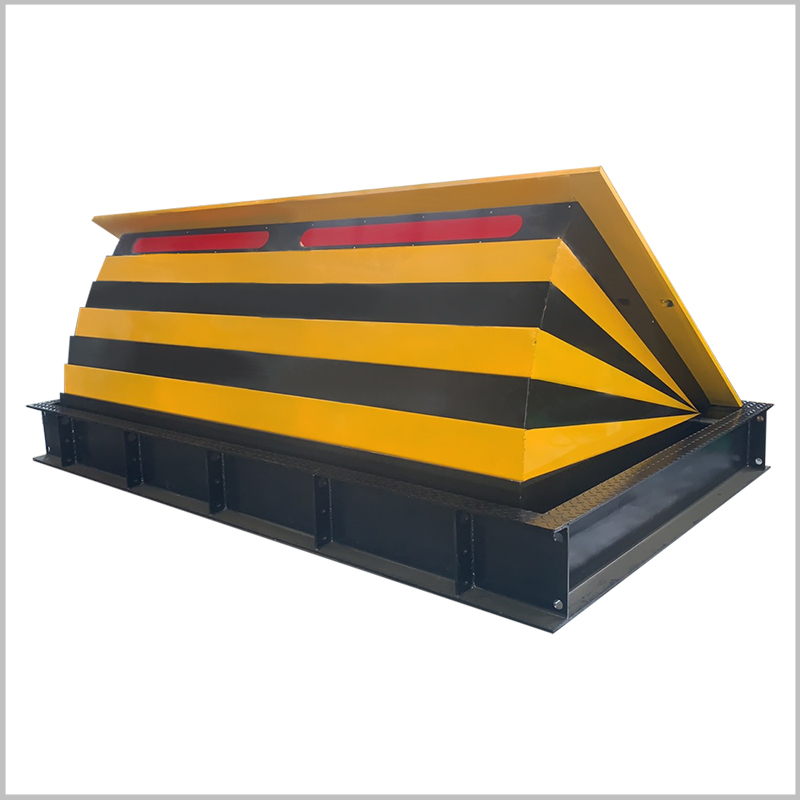

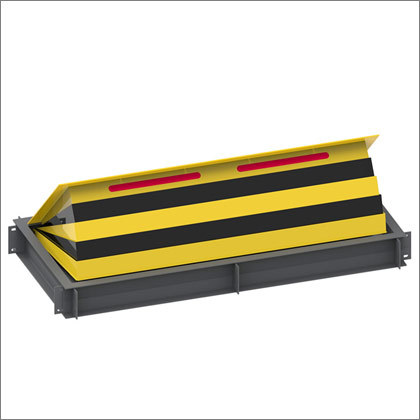

The GSRB5000 GS Automatic Shallow Mount Road Blocker is engineered to provide maximum perimeter protection against unauthorized vehicle access, while minimizing civil work requirements.
Unlike traditional deep foundation road blockers, GSRB5000 features a shallow-mounted structure with only 300mm foundation depth, making it ideal for installation in locations where underground pipelines, cables, or drainage systems restrict excavation.

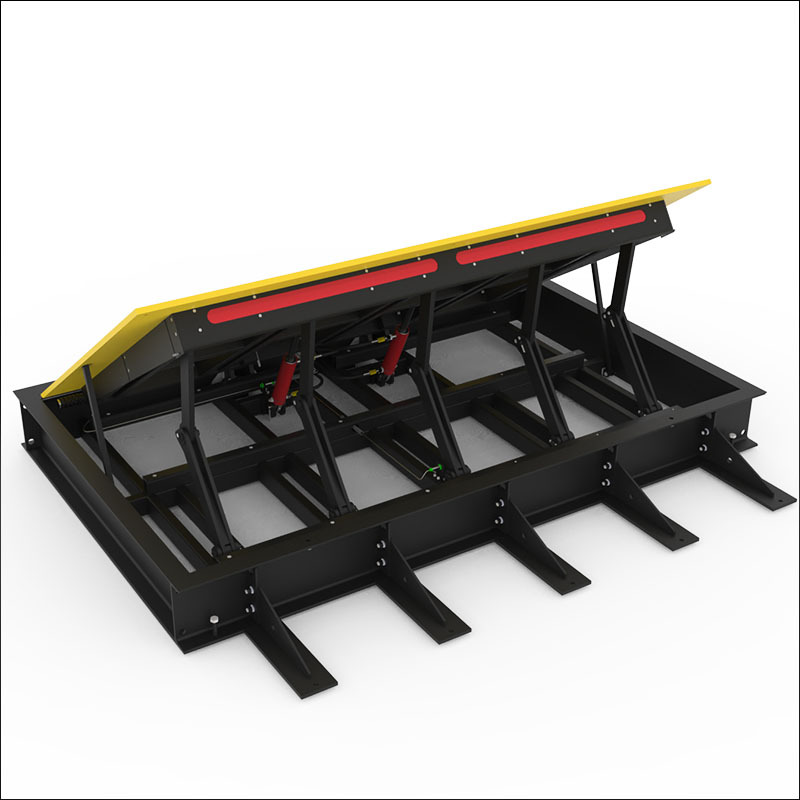

The system adopts an electro-hydraulic drive unit with external hydraulic power pack and PLC control, ensuring stable performance, fast operation, and long service life even under intensive use conditions.
GSRB5000 has successfully passed internationally recognized impact tests, proving its effectiveness against high-speed hostile vehicle attacks:
PAS 68:2013 – Blocker V/7500 (N3) / 80 / 90
IWA 14-1:2013 – Blocker V/7200 [N3C] / 80 / 90
This makes it suitable for anti-terrorism and high-risk security zones where vehicle-borne threats must be stopped immediately and decisively.
The system is designed for continuous and reliable operation, featuring:
Dual hydraulic oil cylinders for enhanced stability
Optional E.F.O. emergency fast raise system (≈2 seconds)
Manual operation and accumulator backup for power failure scenarios
IP68 protection level for outdoor and harsh environments
GSRB5000 ensures uninterrupted protection even in emergency or power outage conditions.
Government & military facilities
Embassies & diplomatic compounds
Airports & customs checkpoints
Nuclear power plants & data centers
Prisons, banks & critical infrastructure
Industrial parks & high-security entrances
Key Features & Advantages
Shallow mount design – only 300mm foundation depth
Certified anti-ram performance (PAS 68 & IWA 14)
Electro-hydraulic drive with PLC control
Optional E.F.O. emergency fast rising (≈2s)
Dual oil cylinder for high stability and durability
Operates under power failure with accumulator backup
IP68 protection for harsh outdoor environments
Compatible with access control, interlock & traffic systems

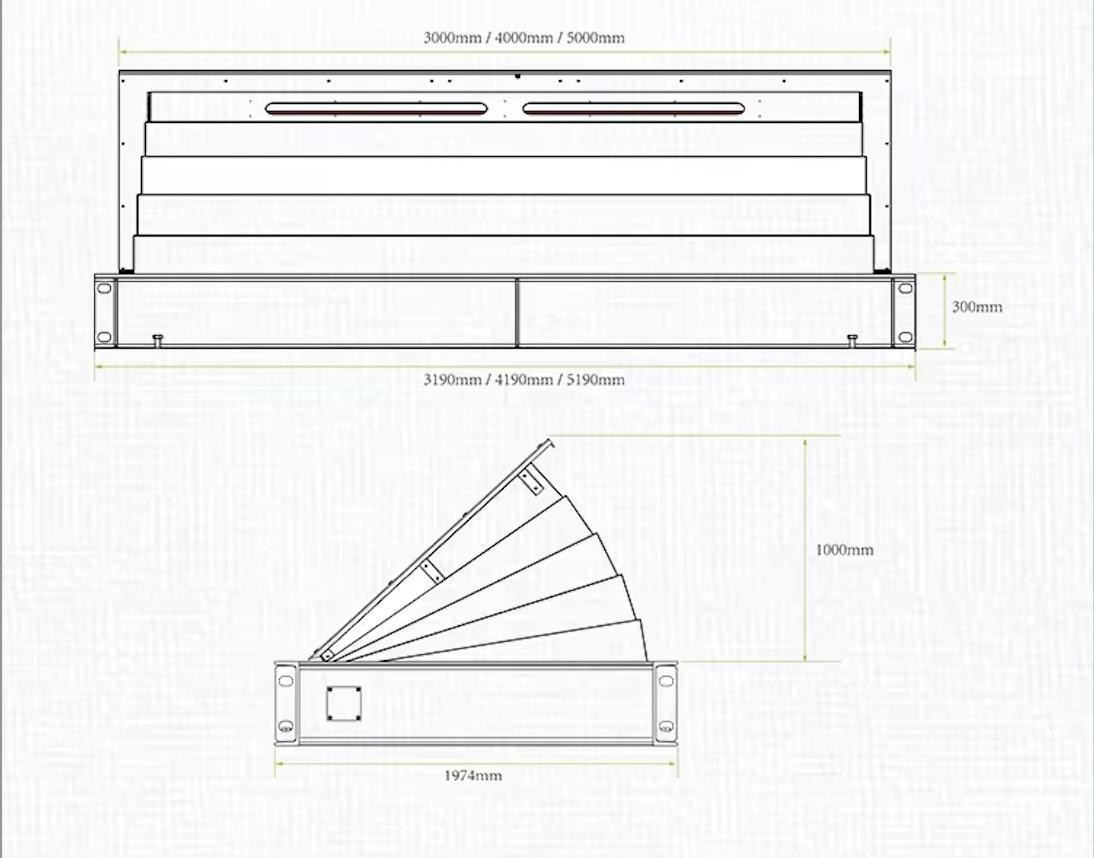

Technical Specifications
|
tem |
Specification |
|---|---|
|
Intercept Height |
1000mm (+10mm) |
|
Intercept Width |
3m / 4m (with folding skirt), 5m (without skirt) |
|
Foundation Depth |
300mm |
|
Top Plate Thickness |
25mm (+2mm) |
|
Rising / Descending Time |
3–5 seconds |
|
Emergency Fast Raise |
≈2 seconds (optional E.F.O.) |
|
Drive System |
Hydraulic |
|
Static Load Capacity |
≤100 tons |
|
Passing Load Capacity |
≤200 tons |
|
Protection Class |
IP68 |
|
Operating Temperature |
-40°C to +70°C |
|
Color |
Yellow & Black / RAL optional |
Optional Accessories
Emergency fast raise (E.F.O.) system
Hydraulic accumulator for power failure operation
UPS backup for control system
Traffic lights (red / green)
Warning LED lights integrated on top plate
Intercom & access control integration
Inductive loop vehicle detection
Manual operation device
Heating resistance for low-temperature environments
Applications & Use Scenarios
GSRB5000 is widely deployed in high-threat and high-security environments, including:
Anti-terror vehicle checkpoints
Embassy and diplomatic entrances
Airport restricted zones
Military bases and prisons
Power plants and energy facilities
High-value industrial and logistics centers
👉 Contact our engineering team for site-specific configuration and layout recommendations.
