Featuring a rotatable wide-angle camera, infrared night vision, long battery life, and a lightweight telescopic structure, it enables security personnel to quickly detect suspicious objects, explosives, or structural modifications beneath vehicles at checkpoints and patrol sites.
Get a Quote for Security Deployment
Contact Our Security Specialist
Suitable for airport, police & military use
Portable and easy to deploy
Response within 12 hours

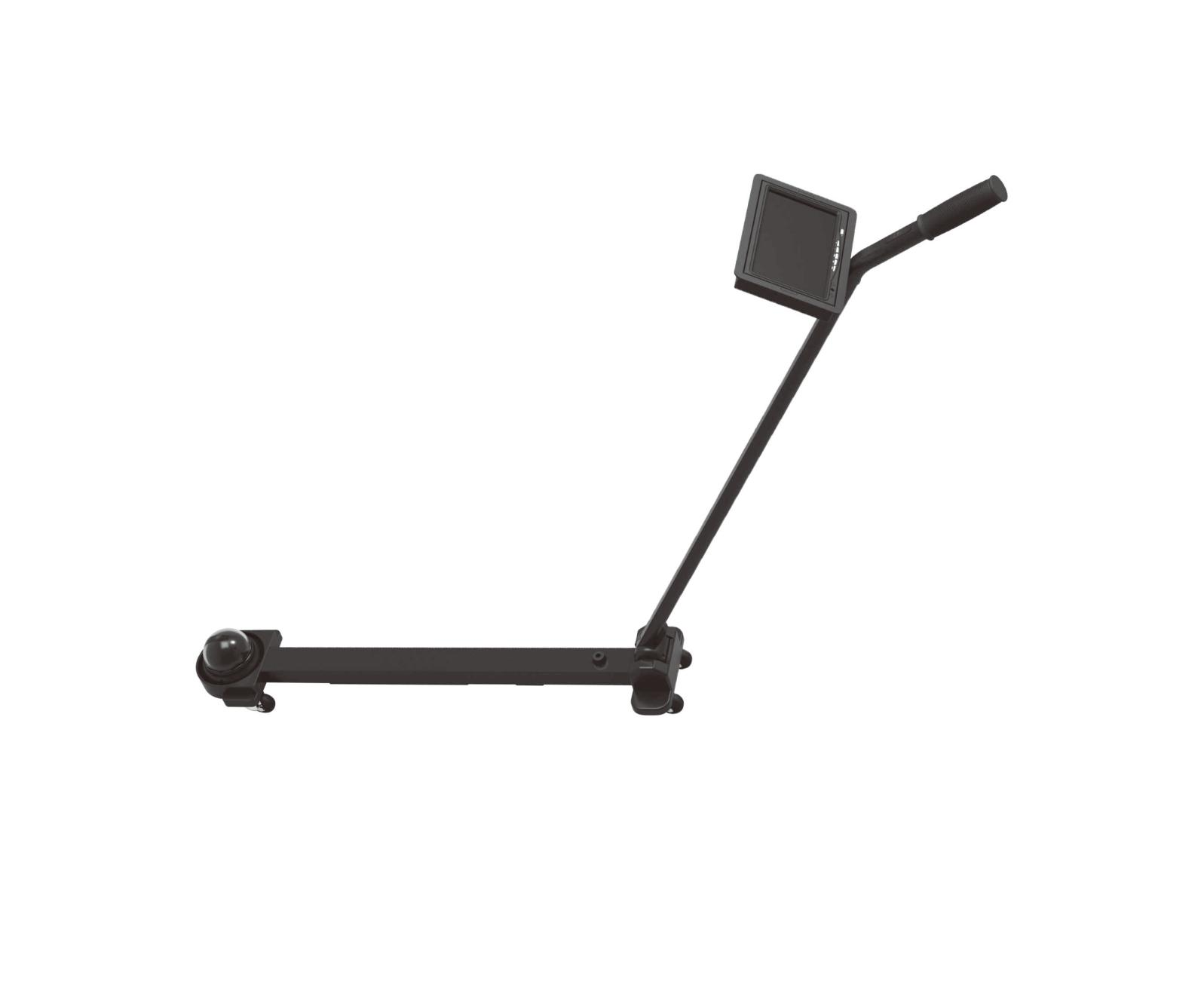

The GS918 Portable Under Vehicle Inspection Camera is a compact and easy-to-use video inspection solution designed for rapid undercarriage checks in mobile and temporary security operations.
Unlike traditional inspection mirrors, GS918 uses a high-definition camera with infrared night vision, allowing operators to clearly inspect vehicle bottoms in low-light or nighttime conditions. The camera head can rotate smoothly, providing flexible viewing angles to detect suspicious items hidden under vehicles.
This makes GS918 an ideal tool for airports, police patrols, military facilities, parking inspections, and event security operations.
The inspection camera supports automatic left-right rotation, covering a wide inspection area beneath vehicles.
Equipped with a 1/3 SONY CCD infrared image sensor, GS918 delivers clear images even in dark environments, significantly reducing blind spots during inspection.
Wide-angle lens with fixed focal length
Infrared illumination for night operation
Smooth and stable camera rotation
GS918 features a telescopic inspection pole that extends up to 1780 mm, allowing inspectors to reach deep under vehicles without bending down.
The lightweight structure and ergonomic grip ensure comfortable operation during long inspection shifts.
The system powers on quickly (≤1 second), enabling fast response in high-traffic checkpoints.
Built with a high-capacity rechargeable battery (5200 mAh), GS918 supports up to 12 hours of continuous operationon a full charge.
A built-in 32GB SD card allows recording and storage of up to 72 hours of inspection video, providing valuable evidence for security review and reporting.
GS918 is widely used for:
Airport and transportation security inspection
Police patrols and mobile checkpoints
Military and government facility security
Parking lot and access control inspection
Event security and temporary inspection sites
As a portable and non-intrusive inspection tool, GS918 offers an excellent balance between inspection efficiency, portability, and cost, making it suitable for both routine security screening and rapid deployment scenarios.
Camera
Image sensor: 1/3 SONY CCD, infrared
Resolution: 600 TV lines
Lens: Wide-angle, focal length 3.6 mm
Rotation angle: Max 355°, Min 22.5°
Monitor
Screen size: 7-inch color display
Display resolution: 1080 × 720 (RGB)
Display pixels: 2 million pixels
Performance
Start-up time: ≤ 1.0 s
Working temperature: -20°C to +60°C
Working current: 400 mA
Power
Battery capacity: 5200 mAh
Working voltage: 9–12.6 V
Continuous working time: up to 12 hours
Charging time: approx. 6 hours
Storage
Built-in 32GB SD card
Video storage: up to 72 hours
Physical
Spreading length: 1780 mm
Folding length: 1020 mm
Net weight: 3.4 kg
Product size: 1020 × 180 × 280 mm
Packing size: 1050 × 210 × 310 mm
