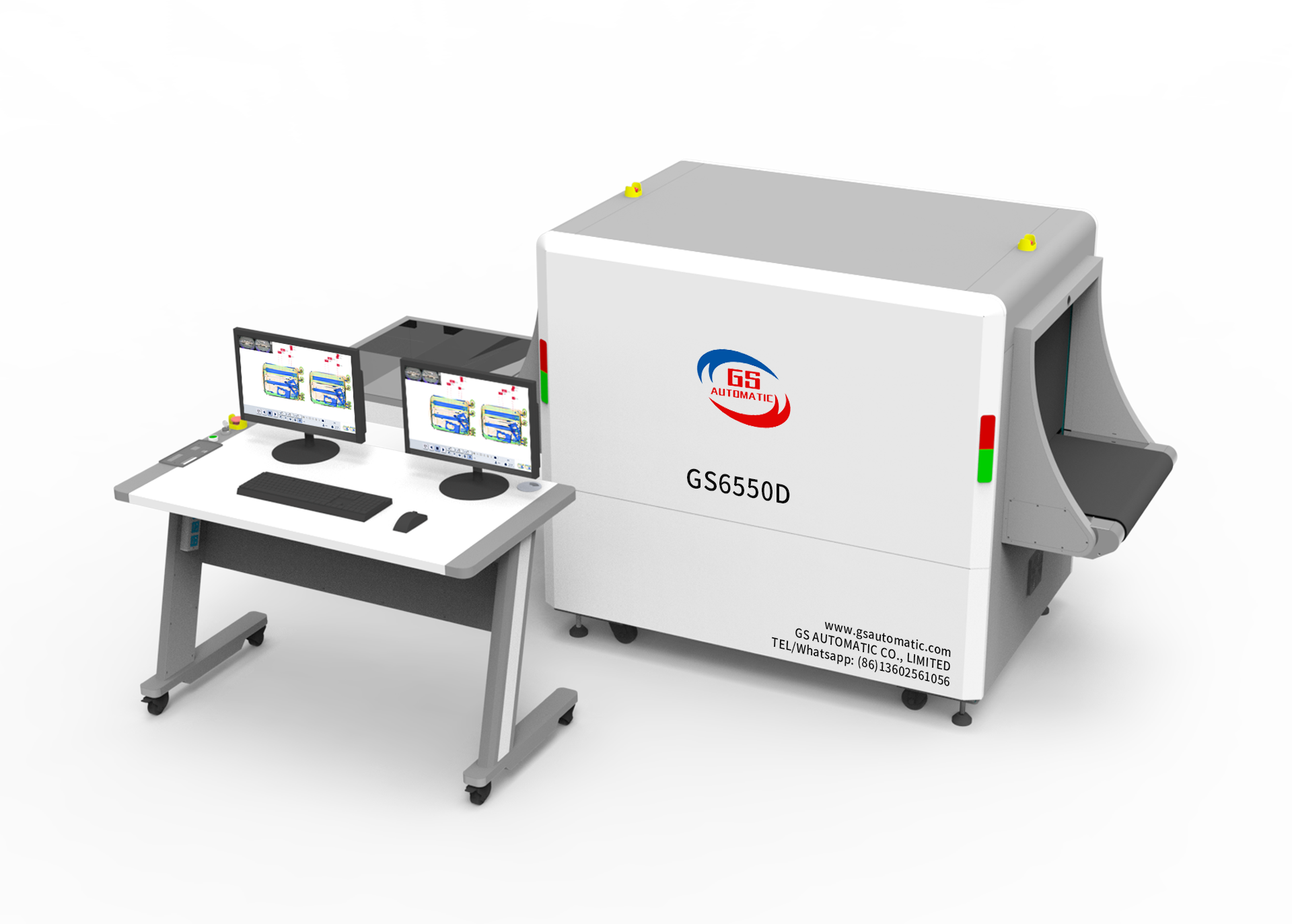

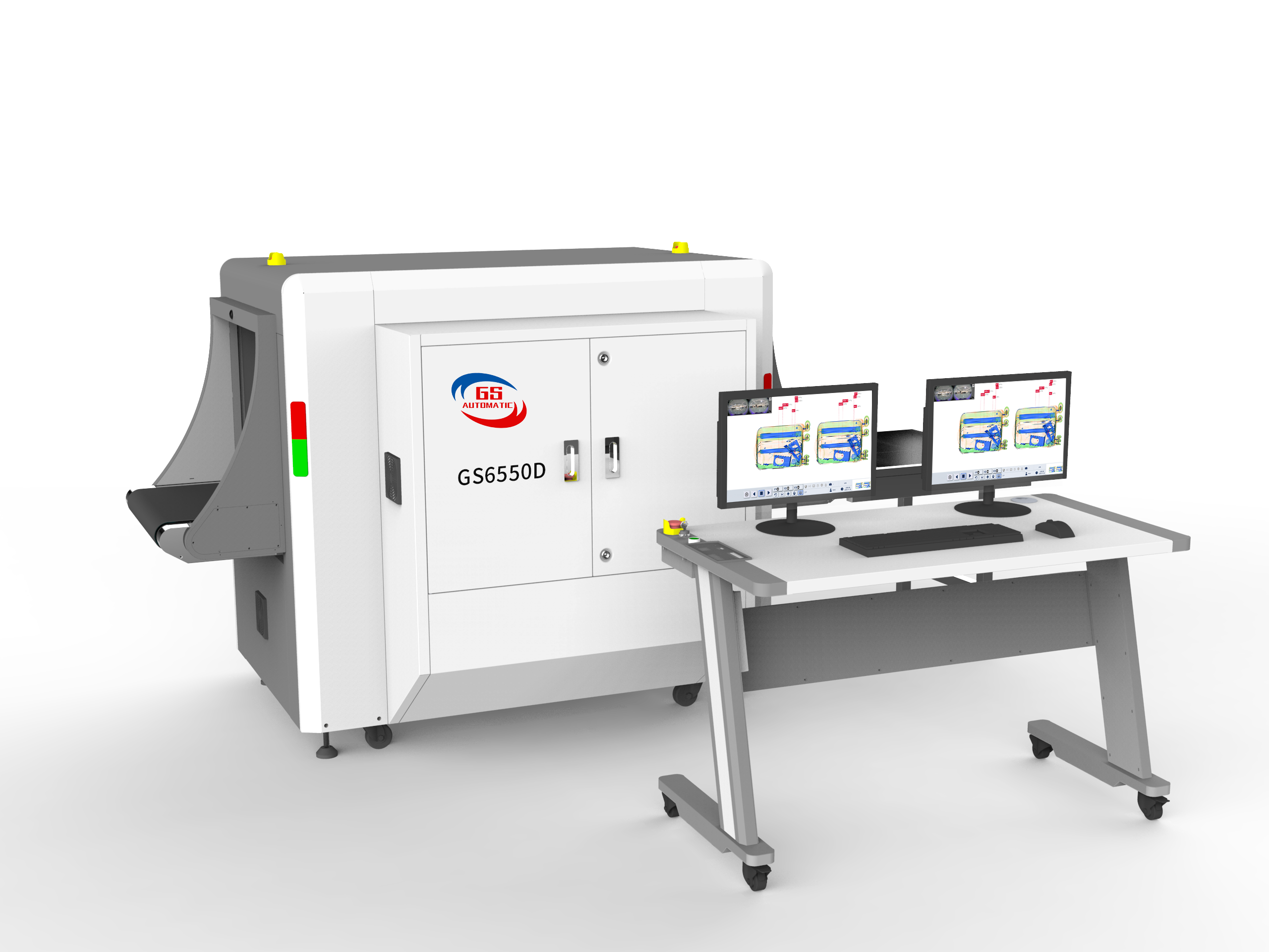

GS6550D Dual-View X-Ray Baggage Scanner

The GS6550D Dual-View X-Ray Baggage Scanner is a medium-size, multi-energy security inspection system independently developed for high-efficiency baggage screening.

It adopts two independent X-ray sources and dual-energy digital detectors, enabling simultaneous top and side view scanning without requiring precise item placement.

Compared with traditional single-view X-ray scanners, GS6550D significantly improves inspection accuracy, throughput and threat recognition, while effectively reducing false alarms and missed detections.

This makes it an ideal solution for locations requiring continuous, high-volume, high-reliability security screening.

Key Performance Highlights

• Dual-source, dual-view X-ray imaging (top & side illumination)

• Clear and vivid digital images regardless of baggage orientation

• Enhanced detection of thin, overlapping and concealed objects

• Reduced operator fatigue and faster decision-making

• Optimized footprint for space-constrained checkpoints

Advanced Image Processing & Detection

GS6550D integrates an intelligent image processing system supporting:

• Multi-energy color imaging (organic / inorganic / mixture)

• High-penetration & low-penetration image enhancement

• Edge sharpening & super image enhancement

• Ultra-thin object detection

• Real-time zoom, image replay & restoration

• Assisted detection of drugs and explosives

The system supports real-time storage of up to 100,000 images, allowing review, analysis and evidence retention.

System Reliability & Safety

• Ultra-low radiation leakage (<0.1 μGy/h)

• Single inspection dose ≤ 3.0 μGy

• Film-safe up to ASA/ISO 1600

• Environmentally friendly lead curtain with protective film

• One-key safe shutdown to extend equipment lifespan

Typical Applications

GS6550D is widely used in:

• Airports & aviation security

• Railway & metro stations

• Customs & border checkpoints

• Government buildings

• Logistics & cargo inspection centers

• Large event security screening

Overview

Dual-View X-Ray Baggage Screening for High-Traffic Security Checkpoints

GS6550D delivers superior inspection efficiency through dual-angle X-ray imaging, helping operators detect concealed threats faster and more accurately, even in densely packed baggage.

Designed for commercial security integrators, the system supports easy deployment, stable operation and seamless integration into existing security infrastructures.

Technical Specifications

Basic Parameters

• Tunnel Size: 650 (W) × 500 (H) mm

• Conveyor Speed: 0.22 m/s

• Max Load: 200 kg

• Throughput: >1600 bags/hour

X-Ray Performance

• Tube Voltage: Up to 160 kV (adjustable)

• Tube Current: 0.4 – 1.2 mA

• Penetration: 43 mm steel plate (top & side view)

• Spatial Resolution: 1.0 mm

Radiation Safety

• Leakage Dose: <0.1 μGy/h

• Single Inspection Dose: ≤3.0 μGy

System & Display

• Dual 21.5” High-Resolution Color Monitors

• 24-bit True Color Imaging

• Windows-based Operating System

Image Processing & Functions

• Multi-energy color material classification

• Edge enhancement & super image clarity

• High / low penetration view switching

• Ultra-thin object detection

• Magnifying glass with real-time zoom

• Image replay (last 200 images)

• Massive image storage & retrieval

• Assisted drug & explosive identification

Applications & Integration

Ideal for System Integrators

GS6550D supports:

• Remote image transmission via Ethernet

• Centralized security management

• Integration with access control & alarm systems

• Mobile APP radiation monitoring & alarm setting

Its robust industrial design ensures stable operation in demanding environments, making it a reliable choice for long-term security projects.
