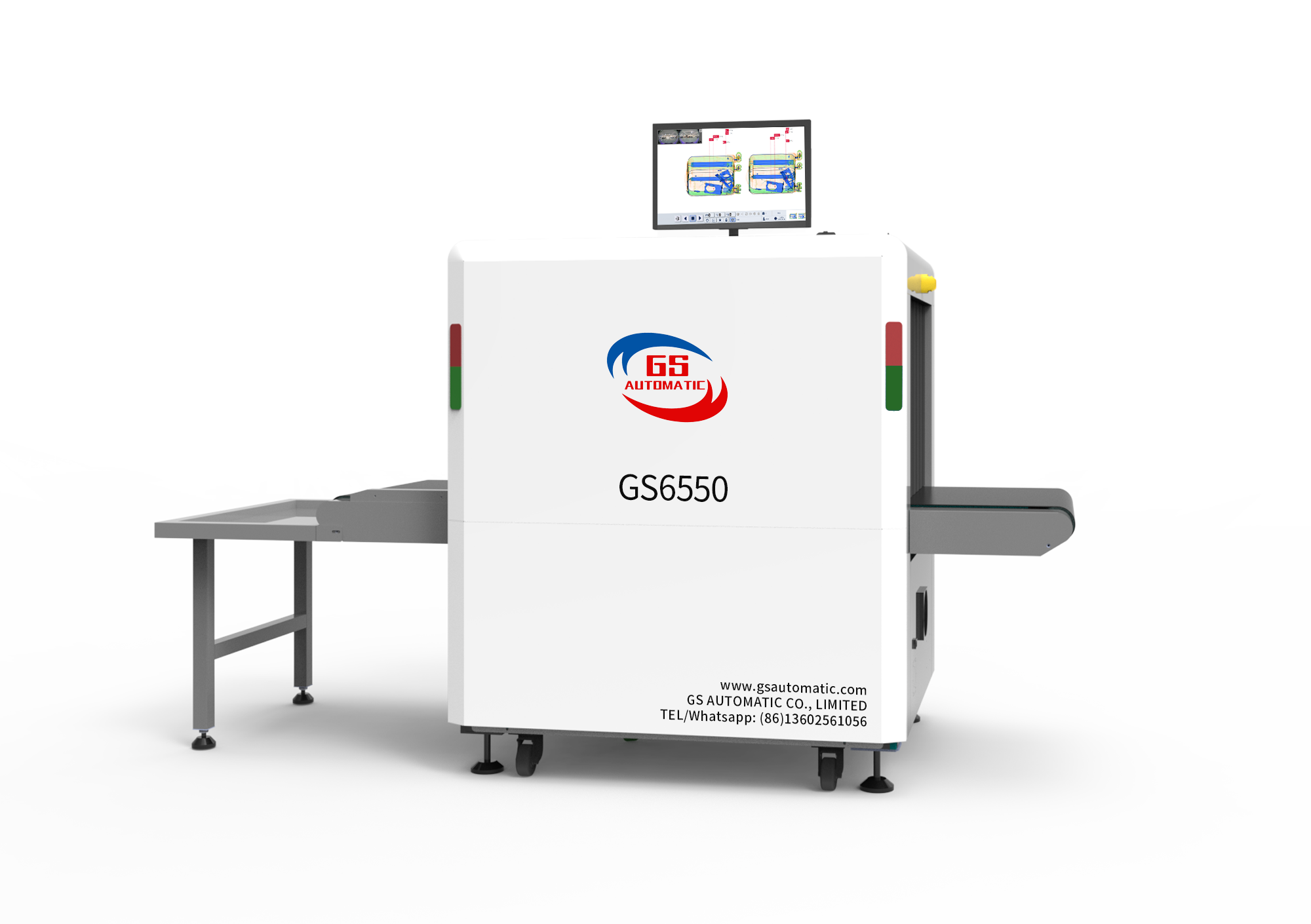

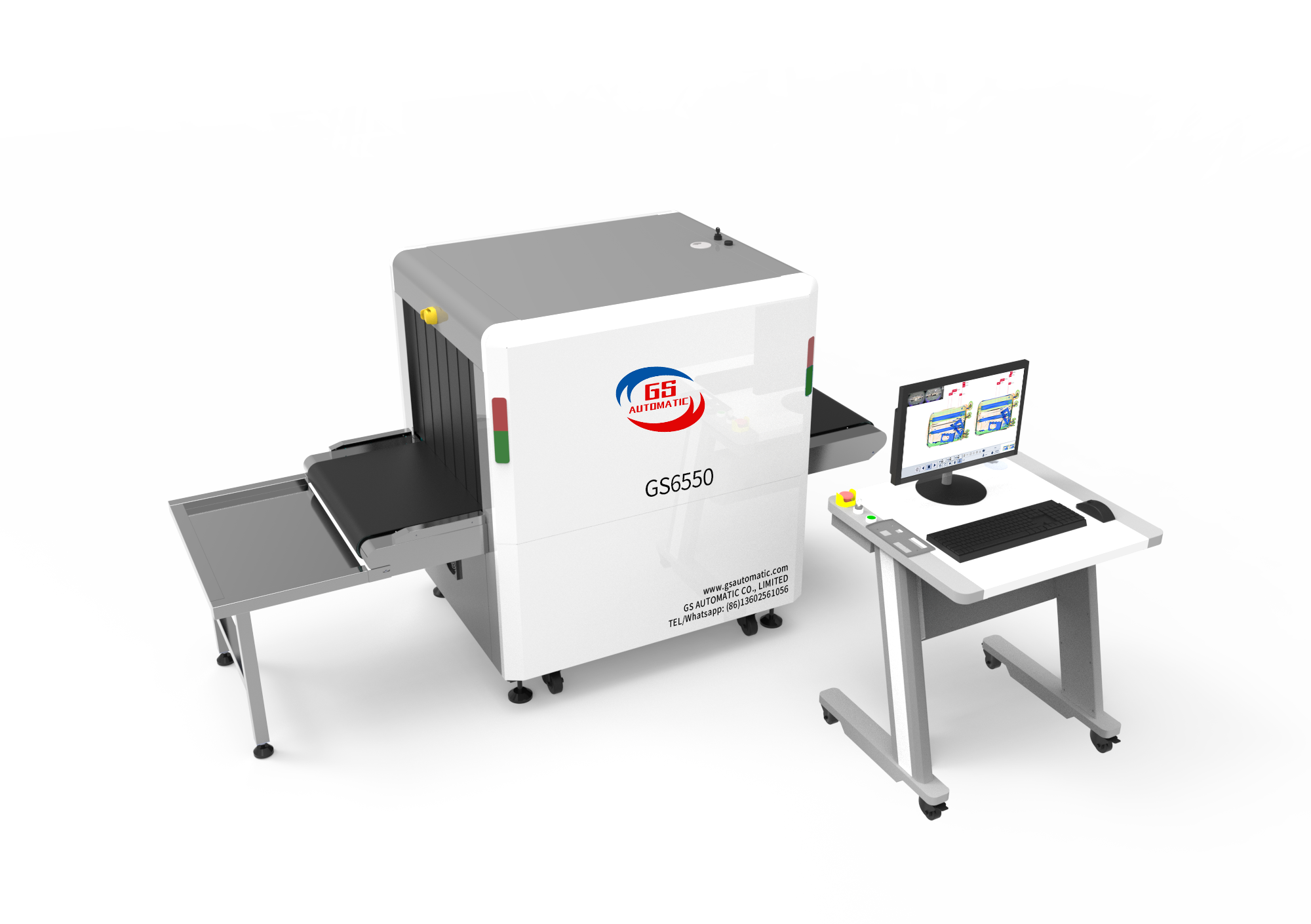

The GS6550 X-Ray Baggage Scanner is a professional security inspection system designed for high-throughput baggage and parcel screening. It enables security operators to quickly identify explosives, drugs, weapons, and other prohibited items through advanced X-ray imaging and intelligent material classification.
With a 650 mm × 500 mm tunnel size, stable conveyor system, and powerful image enhancement software, GS6550 delivers reliable performance for continuous operation in demanding security environments.
Advanced Threat Detection
Effectively detects explosives, drugs, and suspicious objects with high penetration capability (up to 32mm steel typical).
Intelligent Image Processing
Supports 1–64× image enlargement, color/BW conversion, organic/inorganic stripping, high & low penetration view, negative imaging, and pseudo-color enhancement.
Stable & Efficient Operation
Conveyor speed of 0.22 m/s with a maximum load of 165 kg ensures smooth and continuous baggage inspection.
Network & Data Management Ready
Automatic image archiving (up to 100,000 images), USB export, and optional LAN-based centralized image management.
User-Friendly & Secure
Multilingual interface, user management system, secure access key, built-in self-diagnosis, and automatic system testing.
The GS6550 is widely used in:
Airports & aviation security checkpoints
Metro & railway stations
Customs & border control facilities
Government & military buildings
Critical infrastructure & public venues
Tunnel Size: 650 × 500 mm
Conveyor Speed: 0.22 m/s
Max Conveyor Load: 165 kg
Penetration: 32 mm steel (typical), 30 mm steel (guaranteed)
X-Ray Generator: 140 kV, oil-cooled, bottom-to-top irradiation
Image Storage: Up to 100,000 images
Power Consumption: Max. 0.8 kVA
Full technical specifications are available upon request.
Proven performance in global security projects
Designed for continuous, high-duty operation
Complies with international safety and radiation standards
Ideal for professional security integrators and government projects
