GS3300DV 3D Under Vehicle Surveillance System

Product Overview

GS3300DV 3D Dual View Under Vehicle Surveillance System is an advanced area-scan UVSS designed for permanent security checkpoints where reliability, speed, and image accuracy are critical.

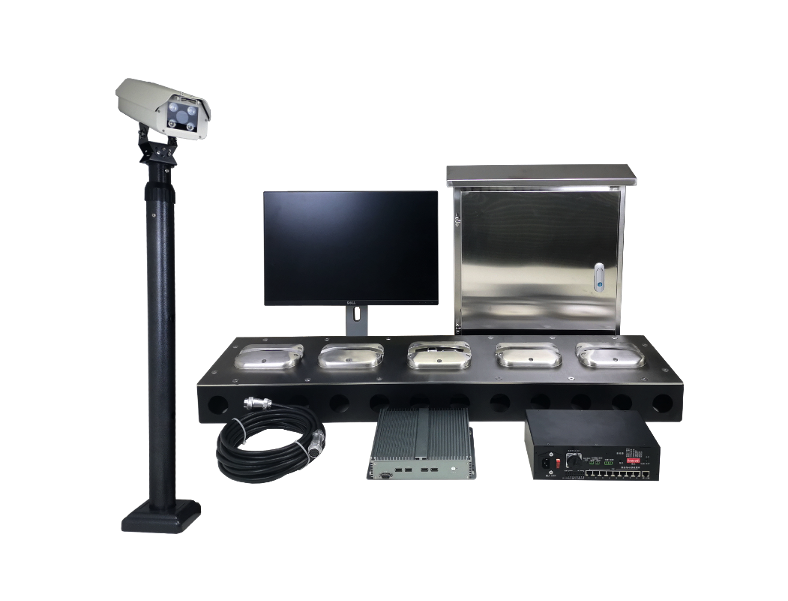

The system integrates:

• Under Vehicle Scanner

• License Plate Recognition (LPR) Camera

• Operation Desk

• Distribution Box

• Optional Surrounding Cameras

Once installed, the stainless steel scanner surface protrudes less than 8 mm above ground, ensuring smooth vehicle passage without speed bumps or disruption.

3D Dual View Area Scan Technology

Unlike traditional line-scan UVSS, GS3300DV adopts area scan technology, which ensures:

• Low distortion images, unaffected by vehicle speed variations

• Consistent imaging results for the same vehicle, enabling AI-based comparison

• High reliability for long-term fixed installations

The system uses two tilted scanners:

• One facing forward

• One facing backward

This dual-view design enables inspection of hard-to-see areas such as:

• Bumpers

• Fuel tanks

• Exhaust pipes

All-Round Vehicle Surveillance

Beyond undercarriage inspection, the system supports:

• Bi-directional License Plate Recognition (front & rear plates)

• Optional surrounding cameras for multi-angle vehicle video recording

This provides operators with full vehicle context, improving threat assessment and evidence review.

Typical Applications

GS3300DV is widely used in:

• Government & Military Facilities

• Border Control & Customs

• Airports & Transportation Hubs

• Ports, Logistics Centers

• Critical Infrastructure & Corporate Campuses

Advantages:

• Area scan scanner, generate area scan low distortion image.
• High resolution imaging, output 4096P color images.
• Real time imaging, scanned parts of chassis will show up on display in real time.
• Support vehicles with different height of chassis, no limitation for vehicle length.
• Embedded bi-directional triggers, support bi-directional scan.
• Bi-directional LPR function can capture and recognize both front and rear license plate.
• Built rugged with stainless steel, designed to withstand harsh environments.
• Provides all kinds of ISP functions, such as Brightness adjust, Saturation, Color Balance etc.
• Support high vehicle speed, up to 60km/h.
• Modular design, repair system by replacing with spare parts within 10 minutes.
• Ultra slim design, only needs to dig into ground for less than 11 cm for installation.
