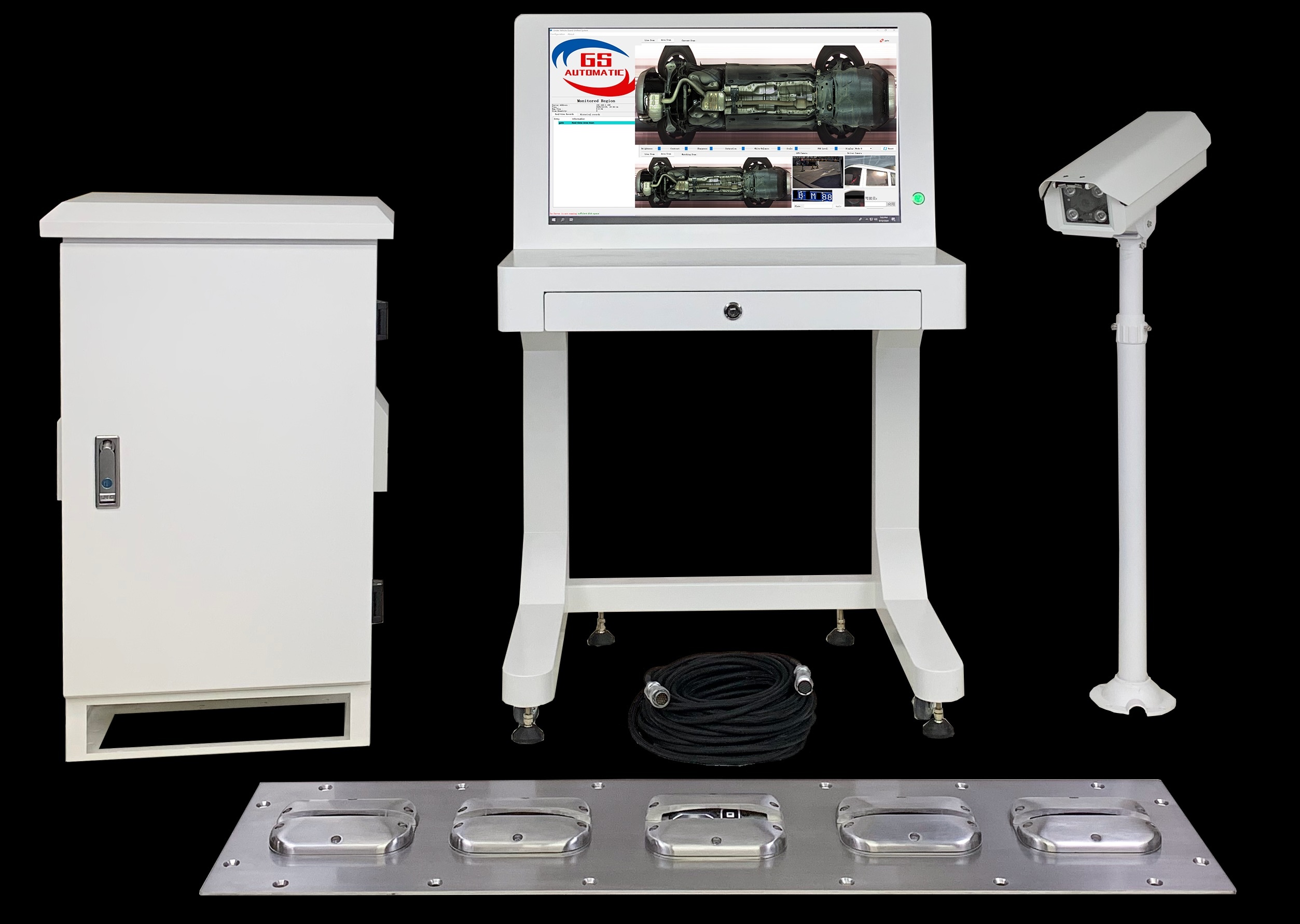

GS3300-ASC Surface Mount Under Vehicle Surveillance System

Product Overview

The GS3300-ASC Surface Mount Area Scan Under Vehicle Surveillance System is an advanced under-vehicle inspection solution designed for high-security vehicle access control points.

Unlike traditional line-scan systems, GS3300-ASC uses area scan imaging technology, producing low-distortion, high-resolution images that remain consistent regardless of vehicle speed.

Its ultra-slim surface-mount design requires no civil construction or ground excavation. With a total installed height of less than 7 cm, the system ensures smooth vehicle passage while maintaining robust inspection capability.

Area Scan Technology Advantage

GS3300-ASC adopts area scan under-vehicle scanning technology, allowing the system to:

• Generate low-distortion area images

• Maintain consistent imaging results even with speed variations

• Enable future AI-based image analysis and comparison

• Improve accuracy in identifying suspicious objects and anomalies

This makes GS3300-ASC especially suitable for mission-critical security checkpoints requiring high image reliability.

System Capabilities

• Real-time under-chassis imaging with instant display

• High-resolution color imaging up to 4096P

• Supports vehicles of any length and various chassis heights

• Embedded bi-directional scanning and triggering

• Integrated bi-directional license plate recognition (LPR)

• Optional surrounding cameras for 360° vehicle surveillance

The system can effectively detect contraband, weapons, drugs, and suspicious objects hidden under vehicles.

Rugged & High-Performance Design

• Stainless steel (304) scanner housing

• Load bearing capacity up to 30 tons

• IP68 protection level for harsh environments

• Operating temperature range: -40°C to +70°C

• Modular design allows maintenance within 10 minutes

Designed for continuous operation at vehicle speeds up to 40 km/h.

Typical Applications

GS3300-ASC is widely deployed at:

• Government and military checkpoints

• Airports and transportation hubs

• Customs and border control facilities

• Logistics centers and ports

• Industrial parks and corporate security entrances

Technical Specifications

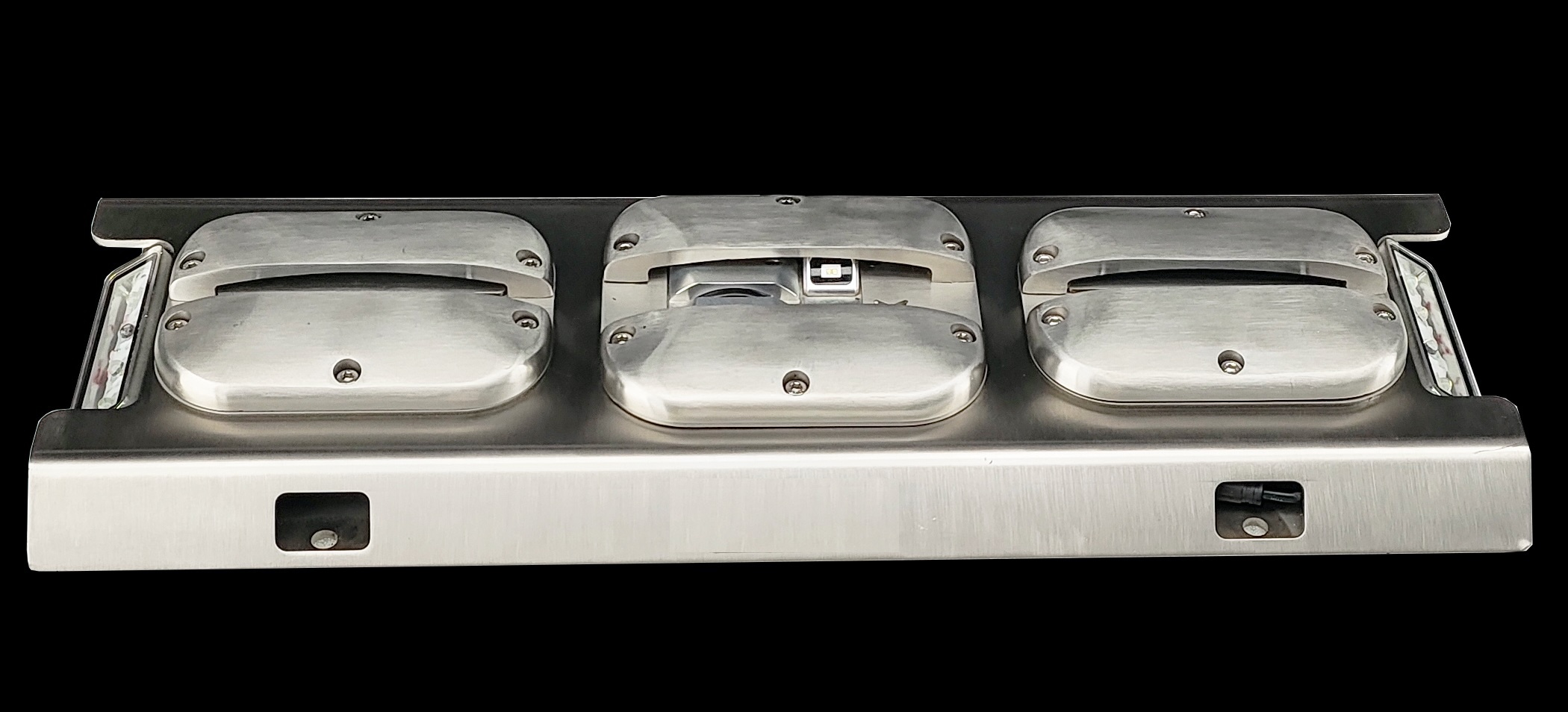

Under Vehicle Scanner

• Scan speed: 0–40 km/h (forward & backward)

• Resolution: >10000 × 4096

• Capture rate: >99.9%

• Above-ground height: 7 cm

• Protection level: IP68

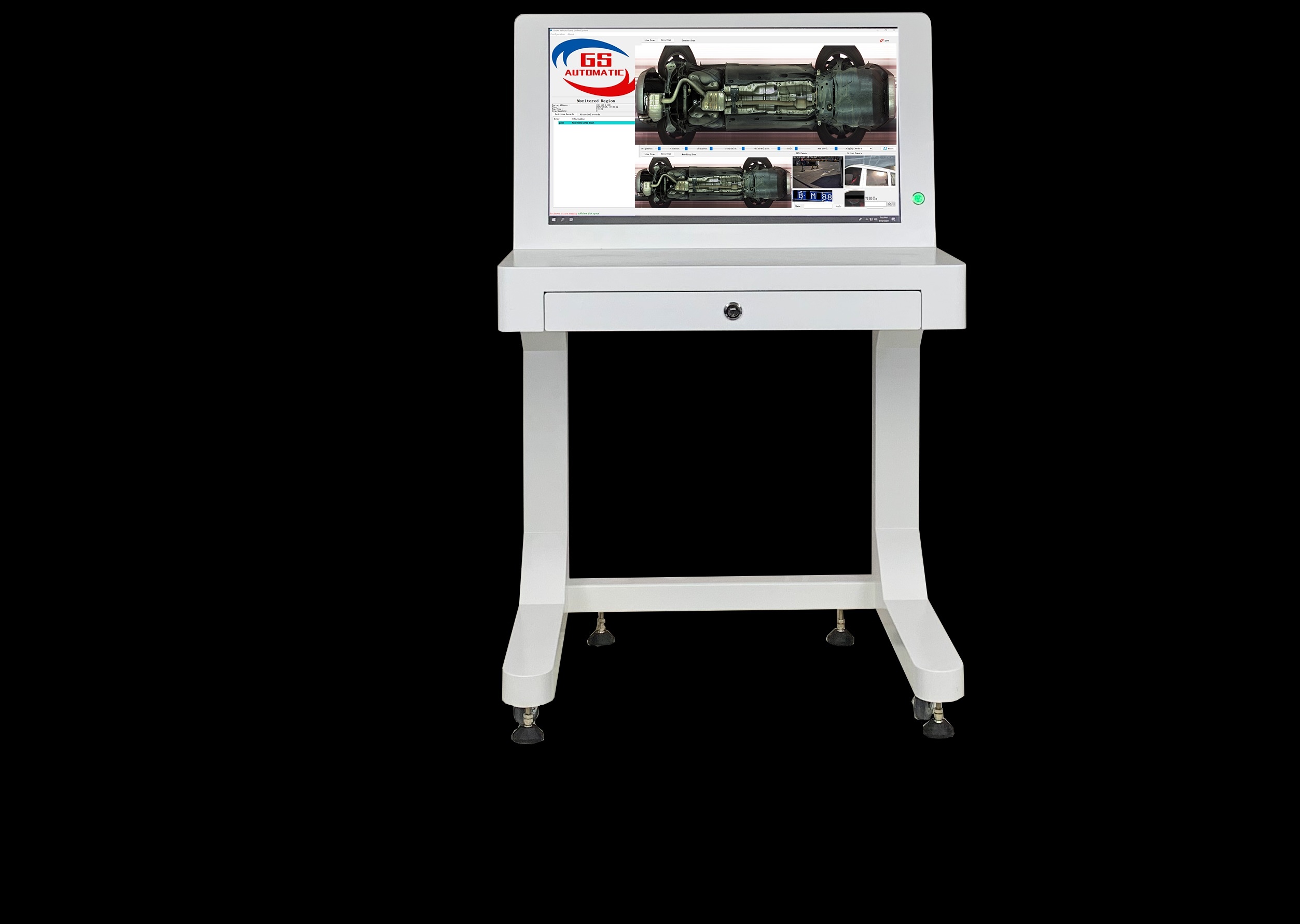

Operation Desk

• CPU: i5 | RAM: 8GB

• Storage: 128GB SSD + 1TB HDD

• Monitor: 27” IPS

License Plate Recognition Camera

• Resolution: 1920 × 1080

• Capture rate: >99.5%

• Protection level: IP65

Why Choose GS3300-ASC

• No ground excavation required

• Area scan imaging ready for AI analysis

• Proven reliability in high-risk environments

• Ideal for system integrators and government projects

• Fast deployment and low maintenance cost

Call to Action

Looking for a reliable under-vehicle inspection solution for high-security sites?

👉 Contact our engineers for a customized security solution and technical consultation.

Features

Key Features of GS3300-ASC Surface Mount Area Scan UVSS

• Area Scan Imaging Technology

  Produces low-distortion, high-resolution under-vehicle images, independent of vehicle speed, ensuring consistent inspection results.

• Ultra-Slim Surface Mount Design

  Above-ground height less than 7 cm, no ground excavation required, ideal for retrofit projects and existing checkpoints.

• High-Resolution Imaging

  Supports ultra-high-definition imaging up to 4096P, enabling precise detection of hidden threats and anomalies.

• Real-Time Inspection & Display

  Instant under-chassis image display with bi-directional scanning for smooth traffic flow.

• Heavy-Duty & Weatherproof Construction

  Stainless steel housing, 30-ton load capacity, IP68 protection for harsh outdoor environments.

• Expandable & Integration Ready

  Supports license plate recognition (LPR), perimeter cameras, and future AI-based analysis modules.

Applications

Typical Applications

GS3300-ASC is designed for high-risk and mission-critical vehicle access control points, including:

• Government and military facilities

• Customs and border control checkpoints

• Airports and transportation hubs

• Ports, logistics parks, and bonded zones

• Industrial parks and critical infrastructure

• Corporate headquarters and secure campuses

The system is suitable for continuous operation, handling high traffic volumes without compromising inspection accuracy.

Technical Specifications

Technical Specifications Overview

Under Vehicle Scanner

• Scan speed: 0–40 km/h (bi-directional)

• Imaging technology: Area scan

• Resolution: >10000 × 4096

• Capture rate: >99.9%

• Above-ground height: 7 cm

• Load capacity: 30 tons

• Protection level: IP68

Operation Workstation

• CPU: Intel i5

• RAM: 8GB

• Storage: 128GB SSD + 1TB HDD

• Display: 27” IPS monitor

License Plate Recognition Camera (Optional)

• Resolution: 1920 × 1080

• Recognition rate: >99.5%

• Protection level: IP65

Specifications may be customized based on project requirements.

Solutions & Support

Complete Security Solution for High-Risk Sites

GS3300-ASC is not just a product — it is part of an integrated vehicle security inspection solution.

We provide:

• Pre-sales technical consultation

• Site-specific solution design

• System integration support (UVSS + LPR + access control)

• OEM / ODM customization for integrators

• Installation guidance & training

• Long-term technical support and maintenance

Our engineering-driven approach ensures every deployment meets local regulations, operational needs, and international security standards.
