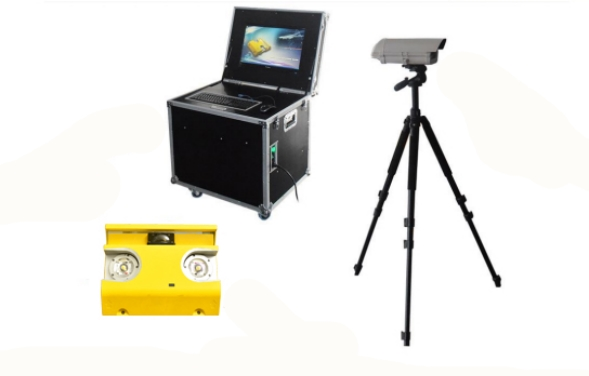

GS3000 Portable Under Vehicle Surveillance System

No.GS3000-PUVSS

Model: GS3000 Portable UVSS

The GS3000 Portable Under Vehicle Surveillance System is a mobile, rapid-deployment inspection solution designed for temporary checkpoints, large-scale events, and mobile security operations. It enables fast, non-intrusive under-vehicle inspection to detect suspicious objects, illegal modifications, or hidden threats without disrupting traffic flow.

  • GS3000 Portable Under Vehicle Surveillance System
  • Description

  • Overview

  • How It Works

  • Specification

  • Applications

The GS3000 Portable Under Vehicle Surveillance System is a mobile security inspection solution independently developed for rapid under-vehicle screening in temporary and high-risk environments.


Unlike fixed under-vehicle inspection systems, GS3000 is designed for portability and fast deployment. It can be quickly installed and operated at temporary checkpoints, large-scale public events, border inspections, and emergency security operations. The system captures high-resolution images of the entire vehicle undercarriage, helping security personnel detect suspicious objects, illegal modifications, contraband, or hidden threats efficiently.


GS3000 combines high-speed image acquisition with intelligent image processing, providing clear, distortion-free undercarriage images in real time. Its compact structure and mobile design make it ideal for situations where permanent installation is not possible.


The car safety inspection system mainly detects the bottom of various vehicles, and can quickly and accurately find the prohibited items and illegal smuggling and smuggling personnel hidden under the car, which is faster and more accurate than the traditional car safety inspection mirror, greatly improving the speed and accuracy of vehicle safety inspection, and reducing the investment of human resources.
Portable Under Vehicle Surveillance Solution

The GS3000 Portable UVSS is designed for fast, flexible, and reliable under-vehicle inspection in temporary or mobile security scenarios. It delivers high-resolution imaging of vehicle undercarriages without requiring permanent civil construction.

**Key Benefits:**
- Rapid deployment for temporary checkpoints
- Mobile design suitable for emergency and event security
- High-resolution undercarriage imaging
- Non-intrusive inspection without stopping traffic
- Ideal alternative to fixed UVSS systems

This system is widely used by security forces, police departments, event organizers, and border control units that require fast and effective vehicle inspection.

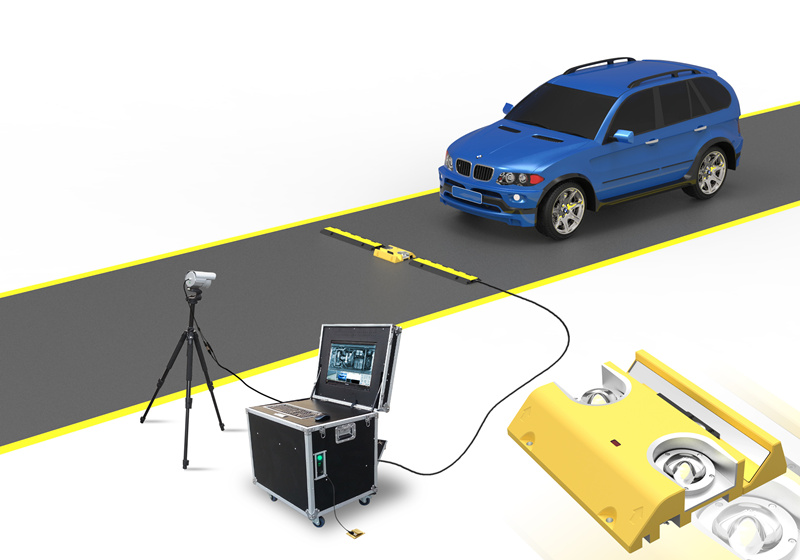

How the GS3000 Portable UVSS Works

**Step 1: System Deployment**
The portable scanning unit is placed on the ground at the inspection point without complex installation or civil works.

**Step 2: Vehicle Passes Over**
As the vehicle drives over the scanner at low speed, the system automatically captures continuous undercarriage images.

**Step 3: Image Processing**
Captured images are processed in real time to generate a complete, distortion-free under-vehicle image.

**Step 4: Operator Review**
Security personnel can view, zoom, and analyze images instantly to identify suspicious objects or anomalies.

This simple workflow ensures fast inspection with minimal impact on traffic flow.
Technical Specifications

- Maximum scan rate: 18 kHz
- Vertical resolution of vehicle undercarriage image: ≥ 2048 pixel CCD
- Image resolution: 12000 × 7500 pixels (approx. 20 million pixels)
- Scanning mode: Continuous scanning
- Image output: Real-time under-vehicle image
- System type: Portable / Mobile UVSS
- Installation: No permanent civil construction required

*Specifications may vary depending on configuration.*
Typical Applications

The GS3000 Portable UVSS is suitable for the following applications:

- Temporary security checkpoints
- Large-scale public events and sports venues
- Border control and customs inspection
- Emergency security deployments
- Mobile police and military operations
- Temporary access control points

It is especially suitable for locations where permanent installation is not feasible or where inspection points change frequently.
