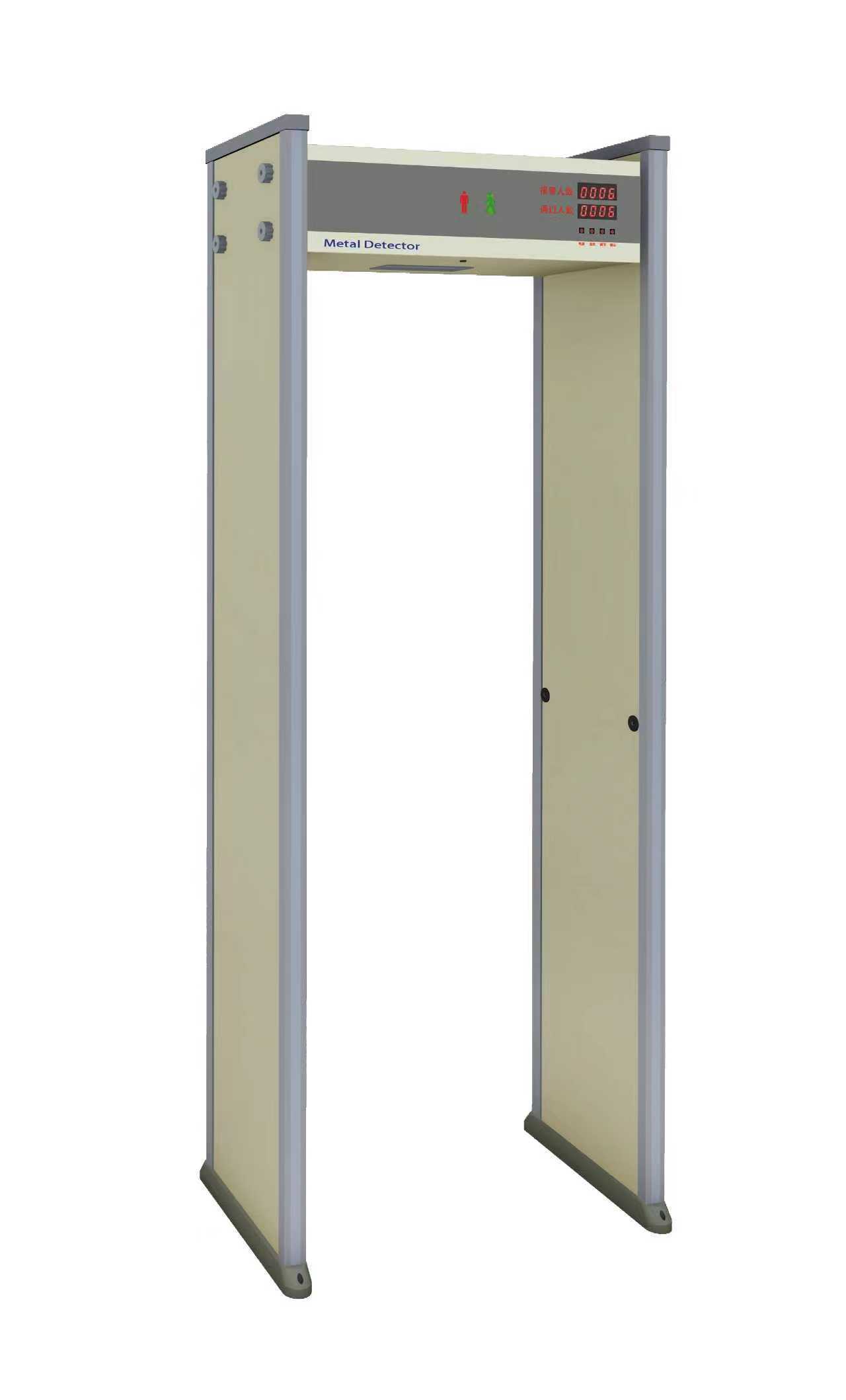

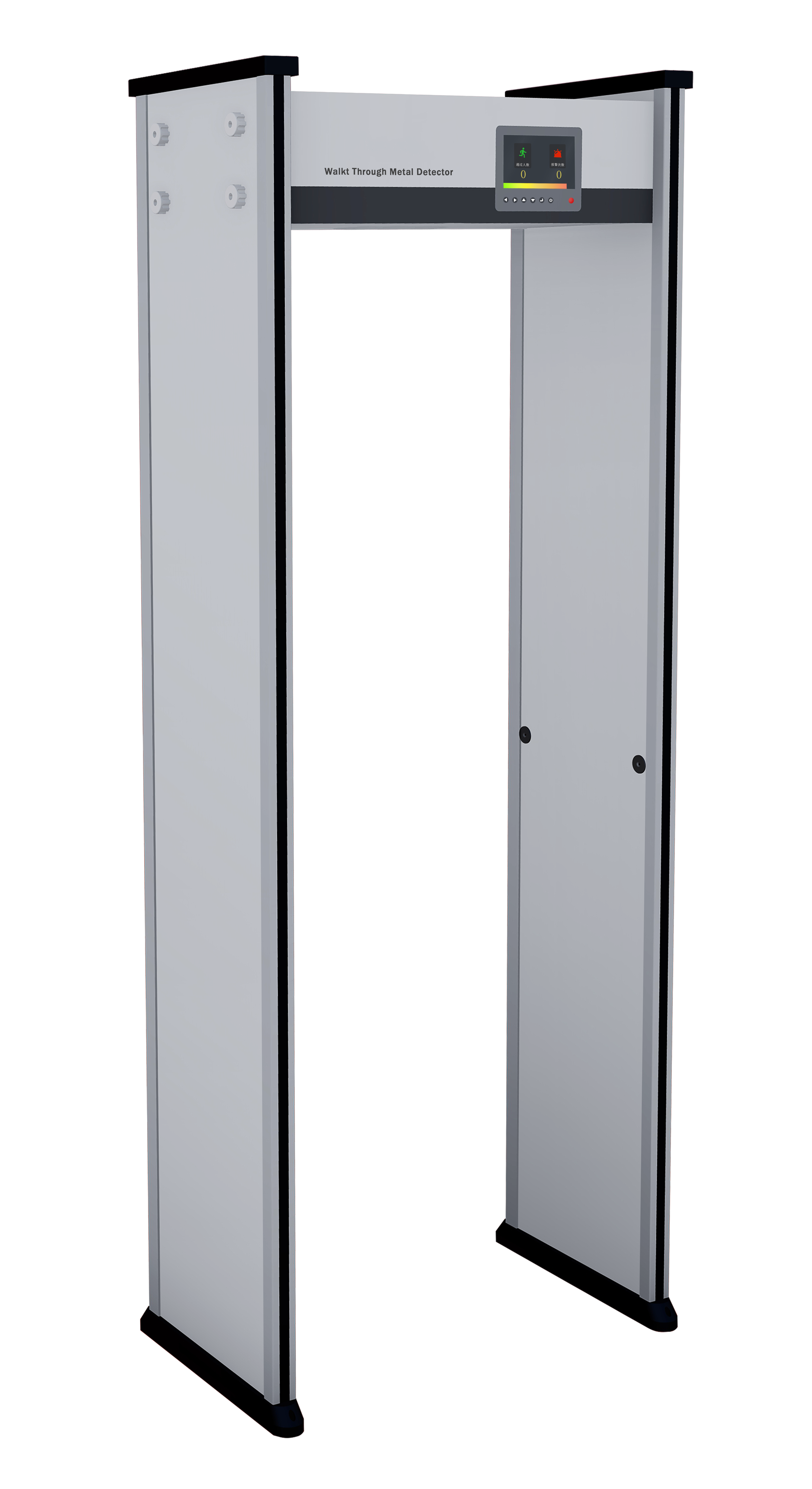

GS3000 18-zone Walk Through Metal Detector
The GS3000 is a high-performance 18-zone walk through metal detector featuring digital signal control, adjustable sensitivity, and LED zone alarm indication. Designed for accurate and reliable personnel screening in airports, government facilities, and high-security environments.
Looking for a Reliable Walk Through Metal Detector?
Free technical consultation
Professional security solution design
Fast response within 12 hours
Get a Free Quote
Product Overview
The GS3000 Walk Through Metal Detector (18 Zones) is designed for precise and efficient personnel security screening.
Using advanced digital signal processing technology, the system ensures stable performance, high sensitivity, and accurate metal detection across the entire detection zone.
It is ideal for airports, customs, government buildings, courts, stadiums, logistics hubs, and other high-risk or high-traffic security checkpoints.
18 Detection Zones
Precisely identifies the location of metal objects on the body, improving inspection efficiency and accuracy.
Digital Signal Control System
Both hardware modules and system settings adopt digital signal processing for stable, interference-resistant performance.
Adjustable Sensitivity
Sensitivity can be adjusted according to different security requirements and target objects.
LED Side Diffusion Alarm Display
Clearly indicates the position and approximate size of detected metal objects.
Automatic Environment Self-Check
Strong and weak indicator lights automatically detect and adapt to surrounding environmental interference.
7-Inch Color LCD Display
Large LCD screen with intuitive graphical user interface for easy operation and configuration.
Low Power Consumption & Low Radiation
≤10W power consumption, safe for continuous operation and compliant with international safety standards.
Built-in system self-diagnostic function detects operational faults in real time
Designed for long-term stable operation in high-traffic environments
Suitable for continuous daily screening with minimal maintenance
Detection Zones: 18 Zones
Power Supply: AC 85–264V / 50Hz
Power Consumption: ≤10W
Operating Frequency: 100 frequency bands, automatic self-adaptation on startup
Operating Temperature: -20°C to +45°C (no condensation)
Storage Temperature: -20°C to +60°C (no condensation)
System Detection: Automatic system fault detection
Channel Size: 1990mm (H) × 700mm (W) × 500mm (D)
Product Dimensions: 2230mm (H) × 835mm (W) × 580mm (D)
Main Control Box: 750mm (L) × 255mm (W) × 445mm (H)
Door Panel Size: 2350mm (L) × 650mm (W) × 190mm (D)
Net Weight: Approx. 70kg
Install away from power lines and communication cables
No large metal objects or strong magnetic fields within 2 meters
Designed for indoor use
For outdoor installation, rain shelter and sun protection are required
Secure packaging for international shipment
Warranty Period: 1 Year
