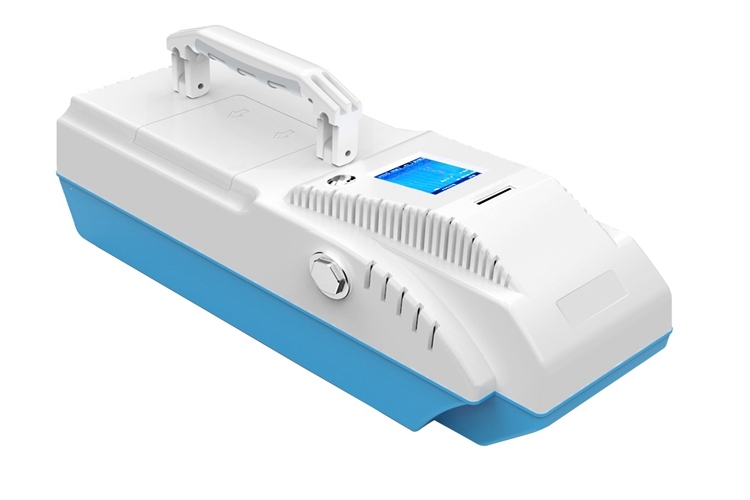

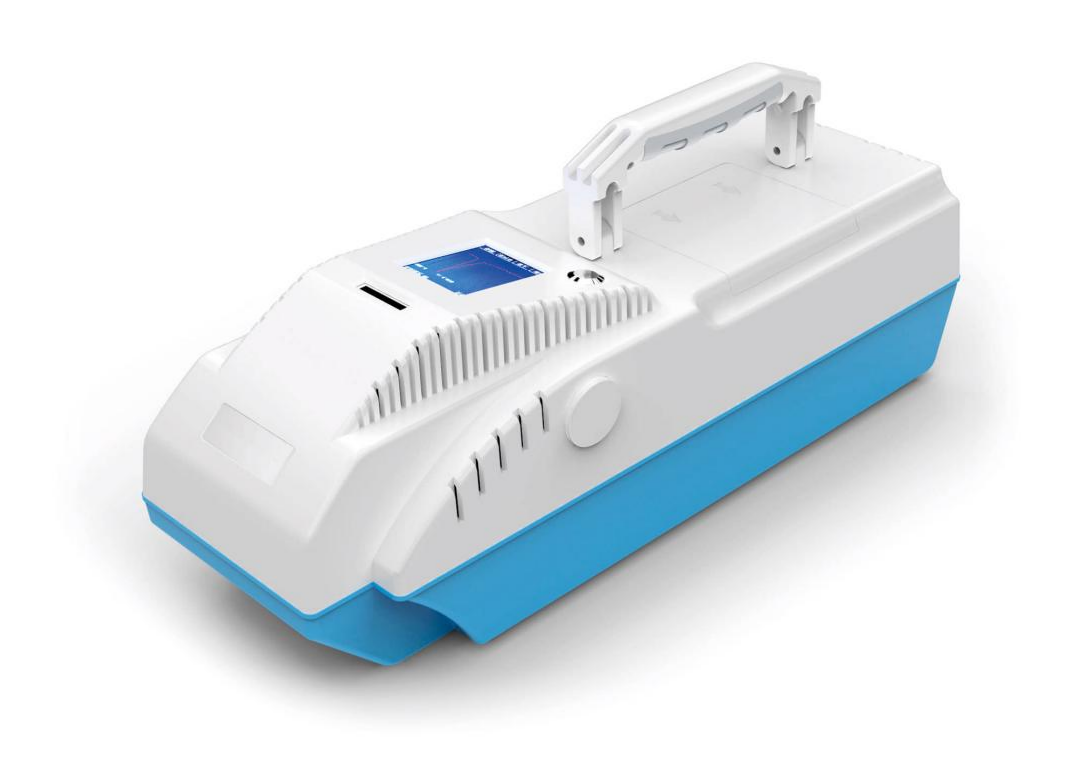

The GS300 Portable Explosives Trace Detector is a compact, high-sensitivity detection device designed for rapid identification of trace explosives and narcotics.
Using advanced non-radioactive vacuum ultraviolet (VUV) ionization technology, GS300 ensures safe operation while delivering laboratory-level accuracy in real-world security environments.
Operators simply wipe the target surface with test paper and insert it into the detector—no direct contact with suspicious items is required, significantly improving safety and inspection efficiency.
Non-radioactive VUV Ionization Technology
Safe, stable, and compliant with international security standards.
Dual Mode Detection (Optional)
Positive & negative ion modes for detecting both explosives and narcotics.
Ultra-Fast Analysis
Detection results available in ≤ 2 seconds, with full analysis typically completed within 6 seconds.
High Detection Accuracy
Detection rate ≥ 99%, false alarm rate ≤ 1%.
One-Touch Operation
Simple user interface suitable for frontline security personnel.
Automatic Calibration & Self-Cleaning
Ensures stable performance under varying environmental conditions.
Automatic Fault Diagnosis
Real-time system monitoring with instant alerts.
Expandable Open Database
User-upgradable library for new explosives and narcotics samples.
Large Data Storage Capacity
Stores up to 800,000+ records with retrieval and export functions.
Explosives (Optional):
Black powder, TNT, DNT, PETN, RDX, C4, NG, fireworks compounds, and more.
Narcotics (Optional):
Cocaine, heroin, marijuana, methamphetamine, ketamine, morphine, etc.
New substances can be added as required.
|
Weight |
<4.0kg |
|
Size |
47(L) x 17(W)x20(H) cm |
|
Battery |
working time >2h, Standby time >12h; Lithium battery: 14.8V/ 4400mAh. |
|
Power adapter |
Adapter: AC110V/220V AC, 50-60Hz Output 24V |
|
Charger: AC110V/220V AC, 50-60Hz |
|
|
Performance Parameter |
|
|
Verifiable explosives (optional) |
There are various kinds of military civil and indigenous explosives, such as Black powder, ANTNT, DNT, TETRY, PETN, Gun Power, NG, RDX, firework, C4, etc.and the possibility of adding new samples as needed. |
|
Verifiable Narcotics (optional) |
Cocaine, heroin, marijuana, ice, K powder, morphine, etc. and other common narcotics on the market, also we can add new samples according to our actual need. |
|
Sensitivity |
pg |
|
Analysis time |
≤2s |
|
Start-up time |
< 12s |
|
False Alarm Rate |
≤ 1% |
|
Detection rate |
≥ 99% |
|
System Function |
|
|
Alarm |
sound light |
|
Language |
English system |
|
Database |
Open database can be updated at any time |
|
Sampling method |
Trace particles adsorption sampling, test paper wipe samples |
|
Detection object |
Detection of drugs and explosives |
|
Mixture detection |
With the main component detection and the mixture composition detection selection function |
|
Environmental Parameter |
|
|
Working/storage temperature |
-10℃-55℃ |
|
Working/storage temperature |
<95% |
|
Working pressure |
60kPa~106kPa |
Airports & Transportation Hubs
Border Control & Customs
Police & Military Checkpoints
Government Buildings
Events & Temporary Security Screening
Critical Infrastructure Protection

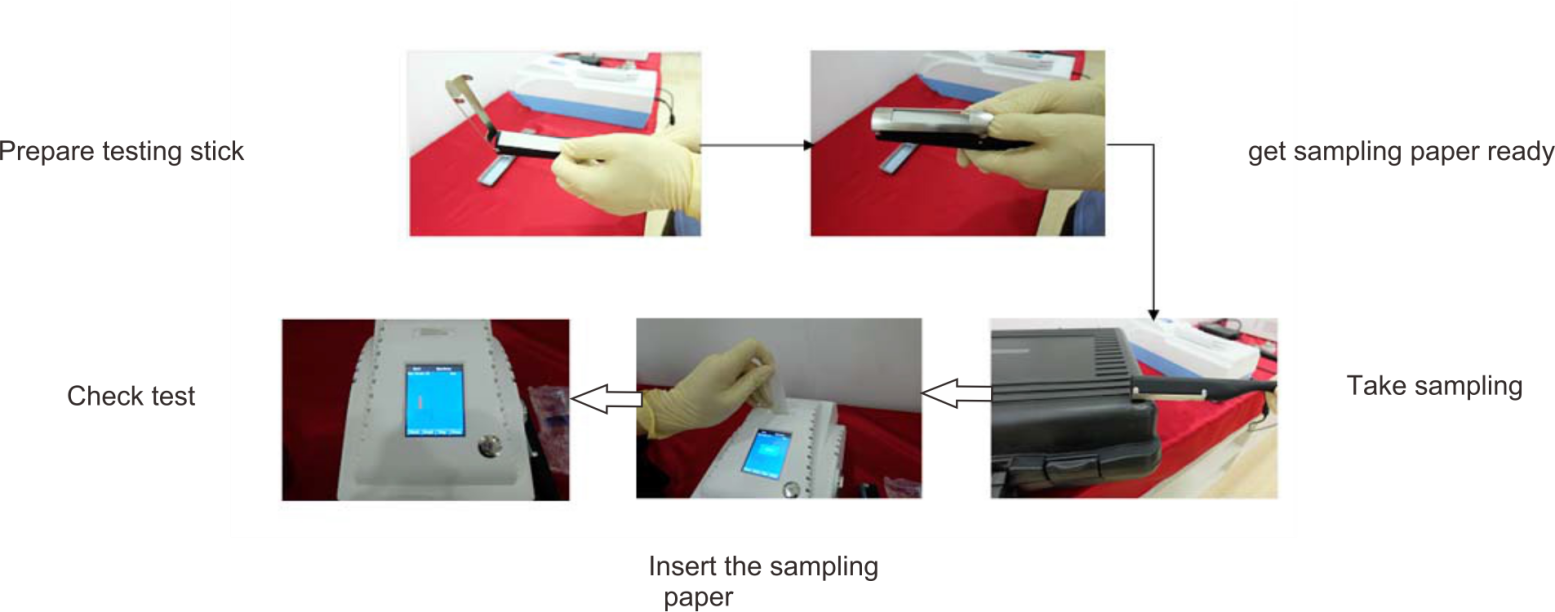

Operation Process
|
