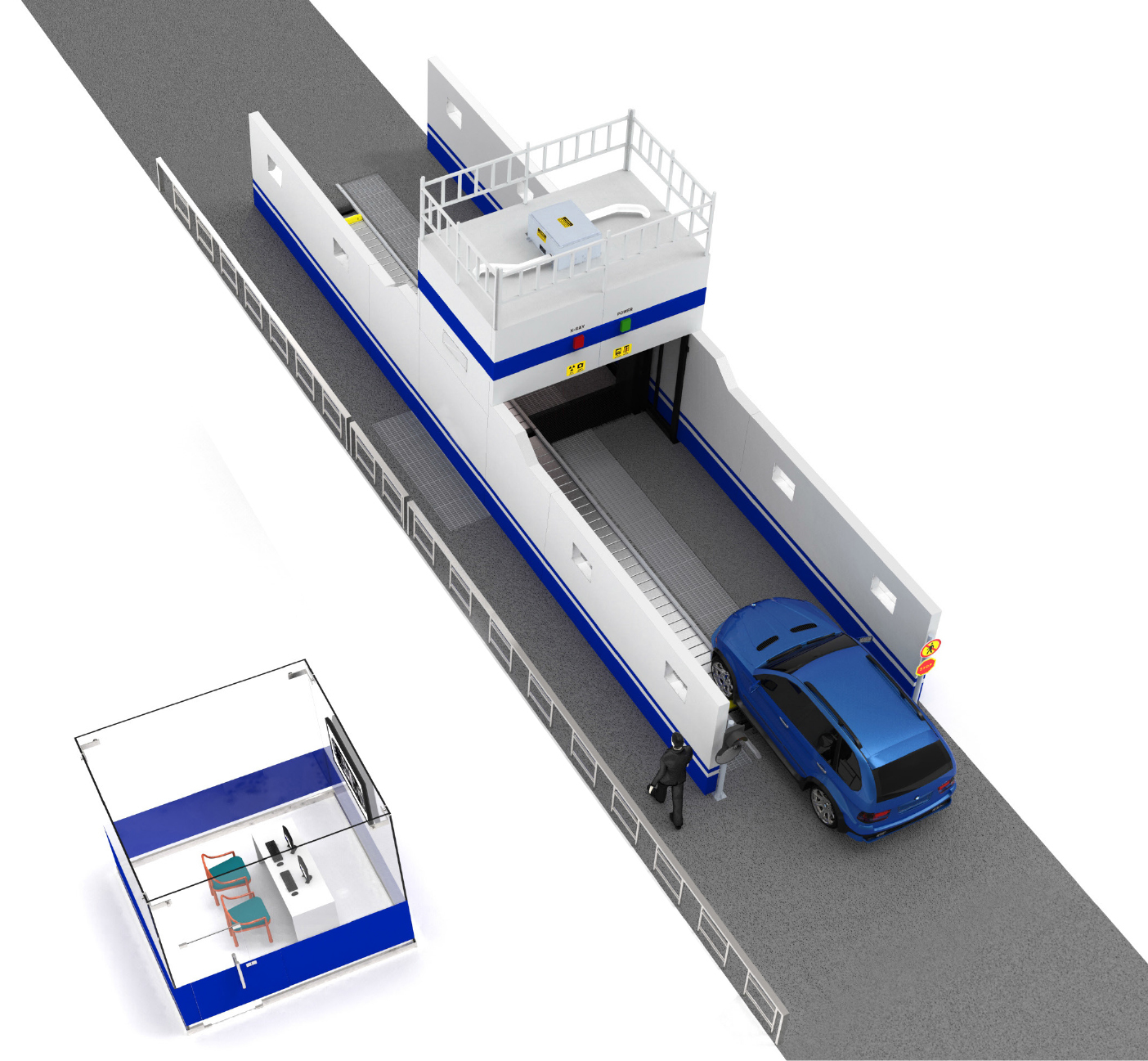

The GS2800 Premium X-Ray Vehicle Inspection System is a top-illuminated, non-intrusive security screening solution independently developed by GS AUTOMATIC CO., LIMITED.
It is designed to inspect passenger vehicles for hidden threats such as weapons, explosives, narcotics, and smuggled goods without dismantling the vehicle.
The system adopts an advanced track transport structure, ensuring vehicles pass through the scanning zone at a constant speed to generate high-quality X-ray images while fully protecting operators and occupants from radiation exposure.
GS2800 is widely deployed at customs checkpoints, border inspection ports, government facilities, large-scale event venues, parking entrances, and critical infrastructure access points.
GS2800 is equipped with a top-illuminated 300 kV dual-energy X-ray generator and a high-resolution U-shaped detector array, providing:
Optimized viewing angles for vehicle chassis and compartments
High penetration capability (up to 70 mm steel typical)
Clear identification of concealed objects in passenger vehicles
Accurate differentiation of organic, inorganic, and dense metal materials
The system supports automatic material identification, helping operators quickly recognize potential threats and suspicious items.
The GS2800 is designed for unmanned and semi-automated inspection workflows:
Vehicles are automatically transported through the scanning channel by the track system
Drivers and passengers exit the vehicle during scanning, achieving 100% no-radiation exposure to personnel
Constant scanning speed ensures stable and repeatable image quality
Fully compliant with GB15208.0-2005 radiation safety standards
This design significantly improves inspection efficiency while maintaining the highest safety level.
GS2800 integrates a powerful inspection software platform with the following capabilities:
Vehicle information management and data query
User account and permission management
Real-time scanning curve display and image playback
Color / black & white imaging modes
Image enhancement, zoom, highlight and darken functions
Organic / inorganic material removal
Real-time video and image capture (customizable)
The system can be integrated with license plate recognition (LPR) systems and other third-party security platforms according to project requirements.
Inspection Channel Size: 300 × 300 cm (customizable)
Scanning Speed: 5–10 km/h
Throughput: Up to 100 vehicles per hour
Penetration: 70 mm steel (typical), 40 mm steel (actual)
Line Resolution: 1.2 mm copper wire
X-Ray Generator: 300 kV, sealed oil-cooled, top-illuminated
Detector: High-resolution U-shaped detector line
Power Consumption: Max. 15 kVA
Operator Station: 24-inch single console
Operating Temperature: 5℃ – 40℃
Operating Humidity: 0% – 90% RH
Storage Temperature: -23℃ – 60℃
Power Supply: 380 VAC ±15%, 50–60 Hz
Customs and border control vehicle inspection
Government and military facility entrances
Large-scale event security checkpoints
Parking lot and traffic control entrances
Critical infrastructure vehicle access inspection
