Product Overview

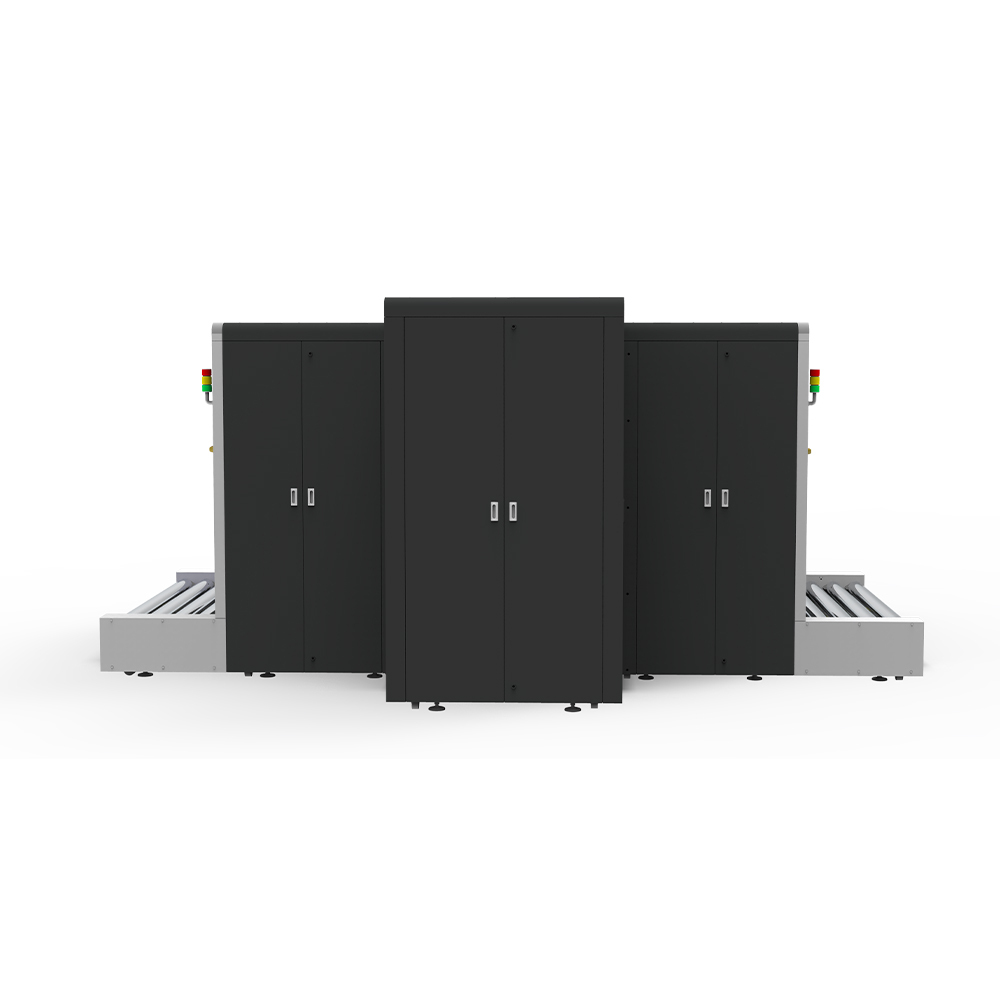

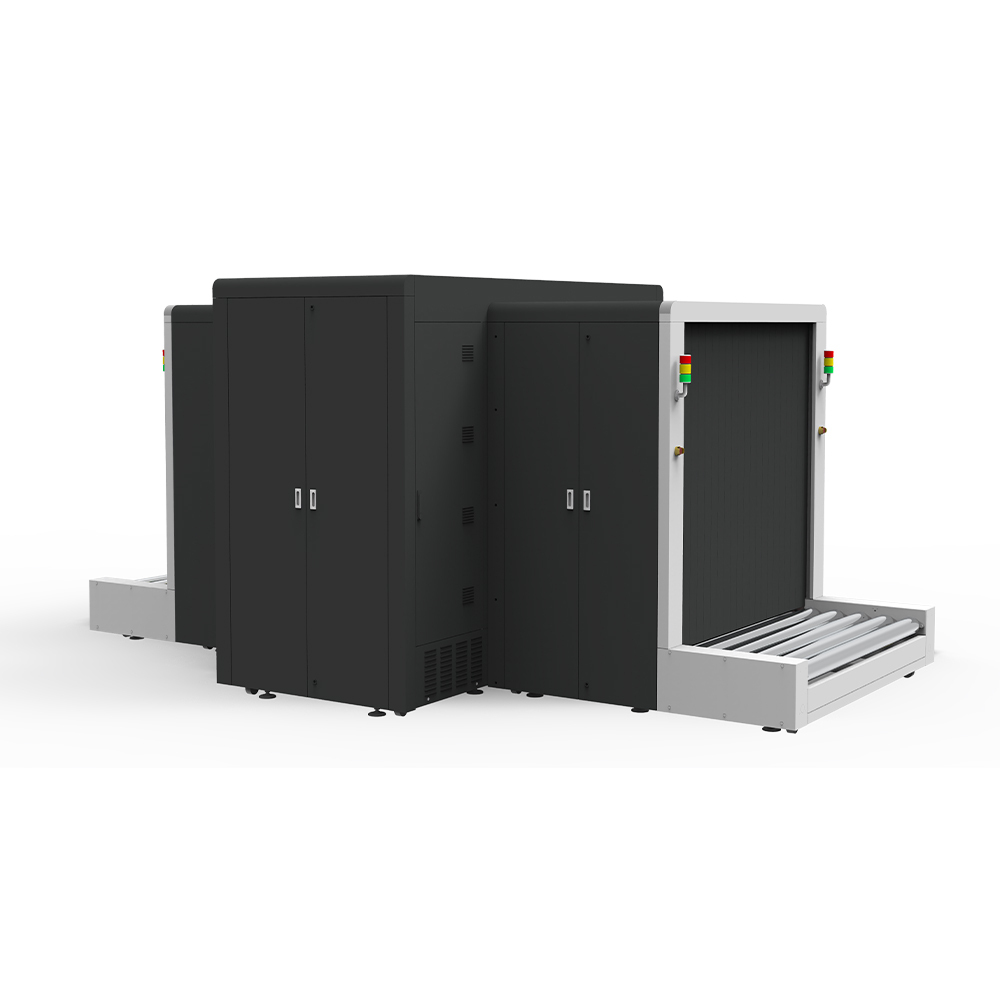

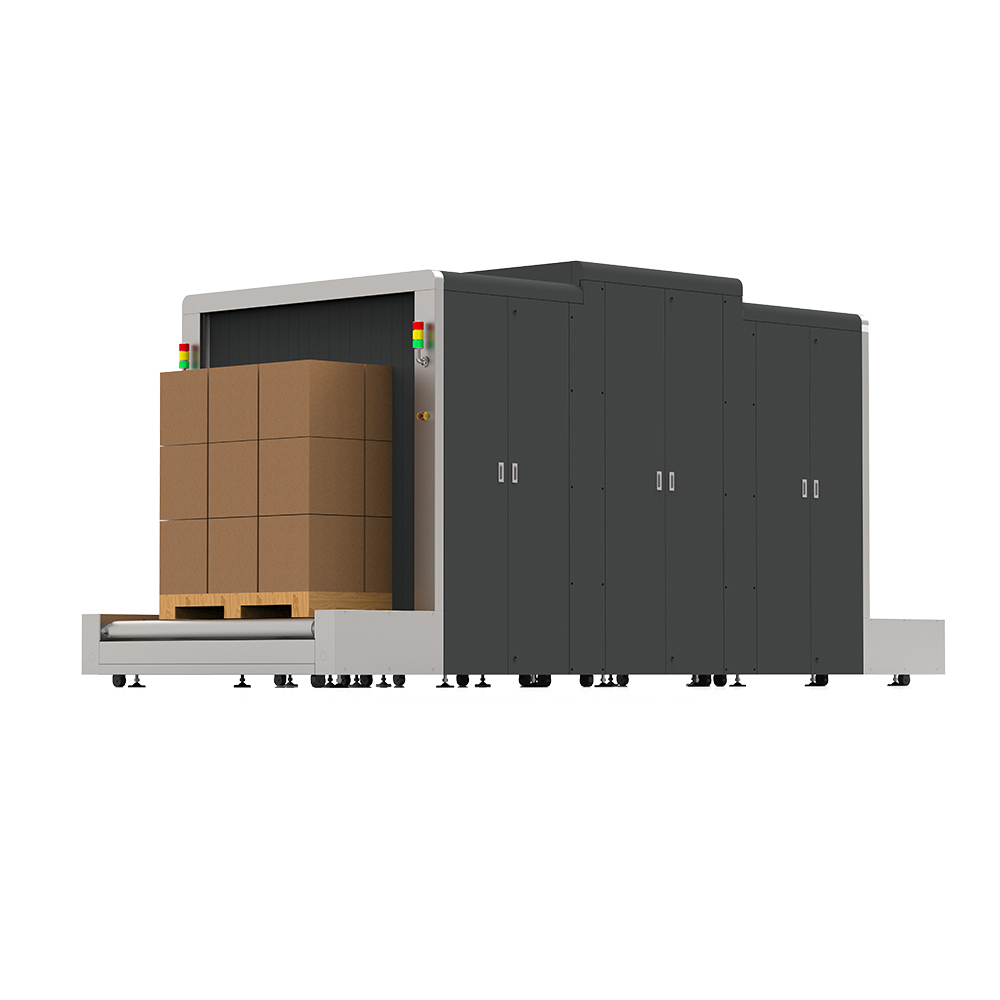

The GS Automatic® GS180180 X-ray Pallet Cargo Scanner is engineered for high-efficiency inspection of oversized and heavy cargo where traditional baggage scanners are insufficient.

With an extra-large 1800 × 1800 mm tunnel opening, the system easily accommodates palletized freight, crates, industrial goods, and bulk cargo, making it ideal for:

• Customs & border control

• Airports & air cargo terminals

• Seaports & logistics hubs

• Justice facilities & government buildings

• Warehouses & industrial zones

2️⃣ Advanced X-Ray Detection Technology

• Single View X-Ray Inspection System

• Multi-energetic (dual-energy) imaging

  • Organic materials: Orange

  • Inorganic materials: Blue

  • Mixed materials: Green

    7-color material classification

  • Explosives

  • Narcotics / drugs

  • Concealed contraband

  • Dense and shielded objects

    Supports detection of:

    High steel penetration capability ensures clear imaging even for dense cargo.

3️⃣ Heavy-Duty Conveyor System

• Maximum conveyor load: 2000 kg

• Low conveyor height: 418 mm

  → Easy pallet loading with forklifts or pallet jacks

• Fully motorized conveyor

• Conveyor speed: 0.22 m/s

Designed for continuous, high-throughput cargo operations.

4️⃣ Image Processing & Display

• 19” medical-grade LCD monitor

• Image resolution: 1024 × 768

  • Edge enhancement

  • Image strengthening

  • Lightening & darkening adjustment

  • Image zoom (up to 128× “Eagle Eye”)

  • Image retrieval & storage

    Advanced image processing functions:

• Real-time image storage: up to 500,000 images

5️⃣ X-Ray Generator & Sensor System

• X-ray generator: Spellman (USA)

• Anode voltage: 100–160 kV

• Anode current: 0.4 – 1.2 mA

• X-ray direction: Downward

• X-ray angle: 80°

• HAMAMATSU multi-energetic sensor (Japan)

  L-shaped photodiode array for enhanced detection accuracy

6️⃣ Safety & Compliance

• Radiation leakage: < 0.31 μGy/h

• Film safety: Guaranteed for ISO1600

• Emergency stop system (separate power cut for conveyor & generator)

• Hand protection (anti-nip design)

• Noise level: < 56 dB

7️⃣ System Reliability & Operation

• 100% duty cycle (continuous operation)

• Oil-cooled X-ray generator

• Operating temperature: 0–45°C

• Operating humidity: 20%–95% (non-condensing)

• Self-diagnostic system with fault alerts

• One-key power-off control

  Shipping Information

  • Wooden Packing Size:

    4180 (L) × 2520 (W) × 2580 (H) mm

  • Shipping Weight: Approx. 2800 kg

  • • Customs & Border Inspection

    • Airport Cargo Screening

    • Seaport & Freight Terminals

    • Justice Facilities & Government Projects

    • Logistics & Distribution Centers

      Suitable for sea freight & heavy-duty logistics handling

      Applications

      • Customs & Border Inspection

      • Airport Cargo Screening

      • Seaport & Freight Terminals

      • Justice Facilities & Government Projects

      • Logistics & Distribution Centers

      Request Datasheet, Layout Drawing & Quotation

      Contact our engineering team for project consultation, storage planning, and compliance documentation.
