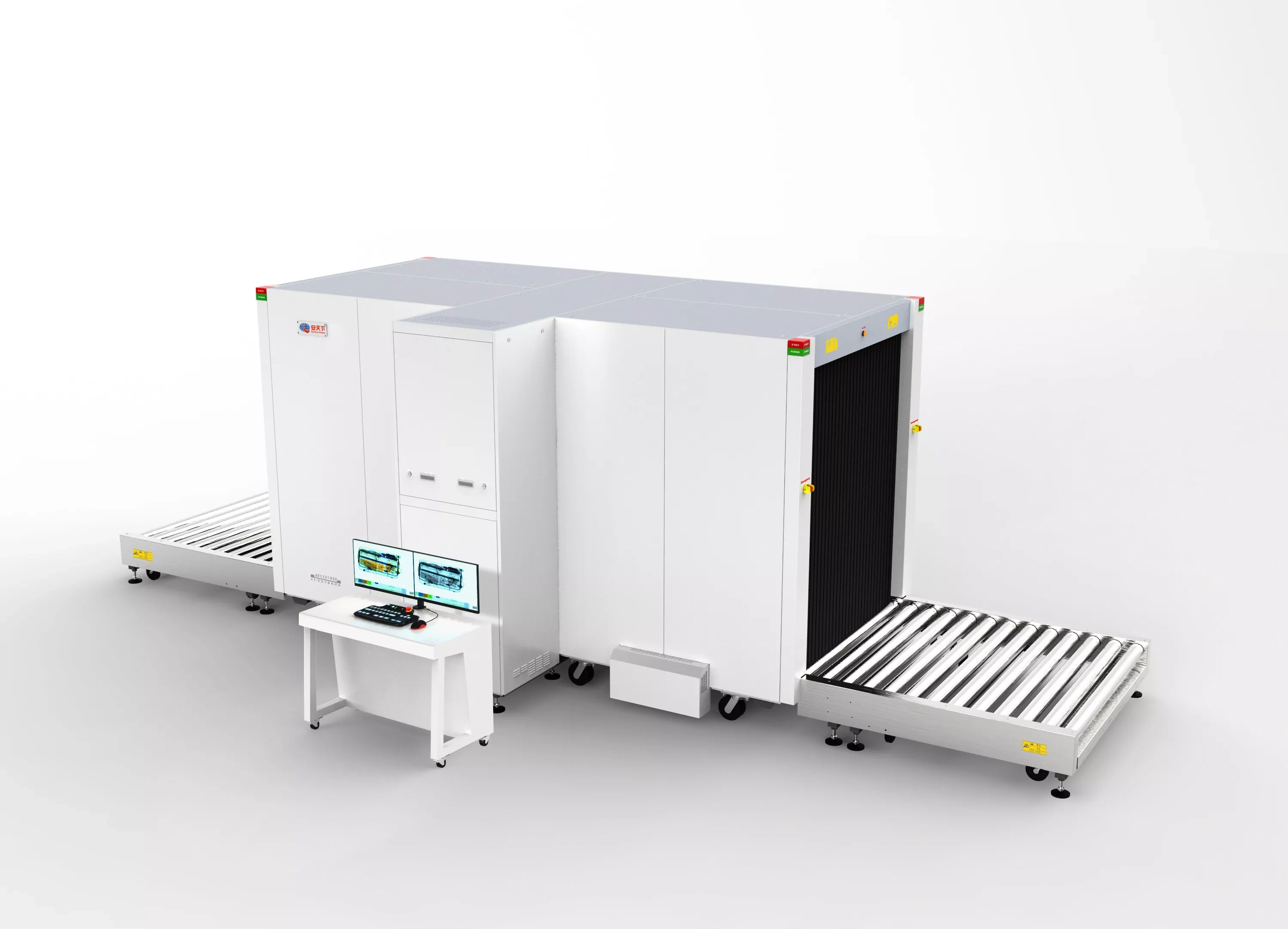

GS150180D Dual-View X-ray Pallet Cargo Scanner is a high-performance cargo inspection system engineered for non-intrusive inspection of palletized and large cargo.
Equipped with two X-ray generators and dual-view dual-energy imaging, the system provides simultaneous top and side perspectives, significantly improving threat recognition accuracy.
It is widely deployed in customs, ports, logistics centers, border control checkpoints, and high-risk cargo inspection facilities.
Two generators, two perspectives (top & side view)
Dual-energy material discrimination
Clear identification of organic, inorganic, and mixed materials
Enhanced detection of explosives, narcotics, and concealed contraband
Reduced blind spots for dense or overlapped cargo
Automatic power-on self-test and fault diagnosis
Built-in UPS (Uninterruptable Power Supply)
Network-ready architecture for centralized monitoring
Automatic image archiving and recall
Threat alert and material classification
Secure key access control and operator management
Energy-saving operational design
Overall system size: 7787 × 4609 × 2837 mm (L × W × H)
Tunnel size: 1505 × 1800 mm (W × H)
Designed for large palletized cargo and freight
Penetration capability: up to 40–45 mm steel (top & side views)
Organic: 1–120 mm
Inorganic: 0.2–14 mm
Material resolution:
Conveyor speed: 0.25–0.3 m/s
Max conveyor load: up to 2000 kg
Noise level: < 60 dB
Color / B&W / Negative imaging modes
Organic / inorganic stripping
High & low penetration enhancement
Pseudo-color imaging
Image recall (up to 30 recent images)
Automatic storage of up to 10,000 images
Image export formats: JPG, BMP, PNG, TIFF, GIF, XF
Operator management with audit logs
TIP (Threat Image Projection) training function
Radiation leakage complies with GB15208.1-2005
X-ray dosage per inspection: ≤4.8 μSv
Film safety guaranteed (ASA/ISO1600)
Electrical, EMC, and environmental safety compliant
ISO 9001 / ISO 14001 / ISO 27001 / OHSMS 18001
CE, ROHS, FCC, REACH
USA FDA
Radiation Safety Certification (China)
Software Copyright & Product Registration
Customs cargo inspection
Port and harbor security
Logistics and freight hubs
Border control cargo screening
High-risk industrial supply chains
📞 Get a Quote / Get Demo
Looking for a reliable dual-view X-ray solution for palletized cargo inspection?
Contact us today to receive technical consultation, system configuration advice, and a customized quotation for your cargo security project.
Leveraging the proprietary GS Automatic Deep Learning Algorithm, our system proactively identifies high-risk items in real-time.
Targeted Identification: Automated detection of knives, bottled liquids, aerosols, firearms, and lighters.
AI Overlay & Visual Cues: Potential threats are highlighted with color-coded frames based on risk levels, significantly reducing operator fatigue.
Multi-Channel Alerts: Instant response via voice prompts, light alarms, and automatic conveyor stoppage to prevent security breaches.
Eliminate blind spots and the need for manual repositioning.
Simultaneous Imaging: Provides two independent views (Vertical & Horizontal) of the scanned object for a comprehensive perspective.
High Throughput: Accelerates the inspection process by enabling rapid and accurate analysis, ideal for high-traffic environments like airports and borders.
Our imaging technology goes beyond standard scans to reveal the hidden composition of every package.
Material Discrimination: Color-coded categorization—Organic (Orange), Mixture (Green), and Inorganic (Blue)—based on atomic number (Z-effective).
Versatile Enhancement Suite: Includes 20+ professional tools: Organic/Metal Stripping, Edge Enhancement, Pseudo-color, Super Enhancement, and Z7/Z8/Z9 Density Threat Alerts for pinpoint accuracy.
Ensure full accountability with our integrated surveillance module.
Video Integration: Built-in entrance and exit cameras record every transaction.
Smart Search: Syncs "Passenger-Package-X-ray Image" data, allowing for rapid retrieval and report exporting based on threat level or timestamps.
Ultra-Low Radiation: Leakage dosage is < 0.9 μGy/h, significantly exceeding international safety standards to protect operators and the public.
Continuous Scanning: Seamlessly resumes scanning and maintains image integrity even after emergency stops or system restarts.
Global Standards: Fully compliant with international aviation and public safety regulations.
Operational Efficiency: Drastically reduce false alarm rates and manual re-scan times.
B2B Support: Dedicated technical support and customization available for large-scale security projects.
|
CPU |
Intel quad core processor |
|
RAM |
16 G |
|
Operating System |
Embedded Linux OS |
|
User Interface |
Local GUI (full functions); Web interface |
|
Basic |
|
|
Tunnel size |
1500 mm × 1800 mm |
|
X-ray Generator |
Dual-View |
|
X-ray Tube Anode Voltage |
160 KV |
|
X-ray Tube Cooling |
Sealed oil bath with forced air |
|
Wire Resolution |
Main View: Typical: 34AWG(0.1mm)* Side View: Typical: 34AWG(0.1mm)* |
|
Penetration(steel) |
Main View: Typical: 35 mm* Side View: Typical: 35 mm* |
|
Leakage Dose-rate |
≤ 0.9 μSv/h (μGy/h) |
|
Noise Level |
≤ 65 dB |
|
Conveyor Speed |
0.2 m/s |
|
Conveyor Hight |
approx. 350 mm |
|
Maximum Belt Load |
3000 kg |
|
Current Leakage |
≤ 0.25 mA |
|
Intelligent Analysis |
|
|
Preview |
Real-time display of X-ray package image and camera image; real-time item intelligent analysis. associates baggage dual view image |
|
Item Recognition |
Recognizes items and displays AI overlay; the AI overlay box moves with packages |
|
CPU |
Intel quad core processor |
|
RAM |
16 G |
|
Operating System |
Embedded Linux OS |
|
User Interface |
Local GUI (full functions); Web interface |
|
Basic |
|
|
Tunnel size |
1500 mm × 1800 mm |
|
X-ray Generator |
Dual-View |
|
X-ray Tube Anode Voltage |
160 KV |
|
X-ray Tube Cooling |
Sealed oil bath with forced air |
|
Wire Resolution |
Main View: Typical: 34AWG(0.1mm)* Side View: Typical: 34AWG(0.1mm)* |
|
Penetration(steel) |
Main View: Typical: 35 mm* Side View: Typical: 35 mm* |
|
Leakage Dose-rate |
≤ 0.9 μSv/h (μGy/h) |
|
Noise Level |
≤ 65 dB |
|
Conveyor Speed |
0.2 m/s |
|
Conveyor Hight |
approx. 350 mm |
|
Maximum Belt Load |
3000 kg |
|
Current Leakage |
≤ 0.25 mA |
|
Intelligent Analysis |
|
|
Preview |
Real-time display of X-ray package image and camera image; real-time item intelligent analysis. associates baggage dual view image |
|
Item Recognition |
Recognizes items and displays AI overlay; the AI overlay box moves with packages |
