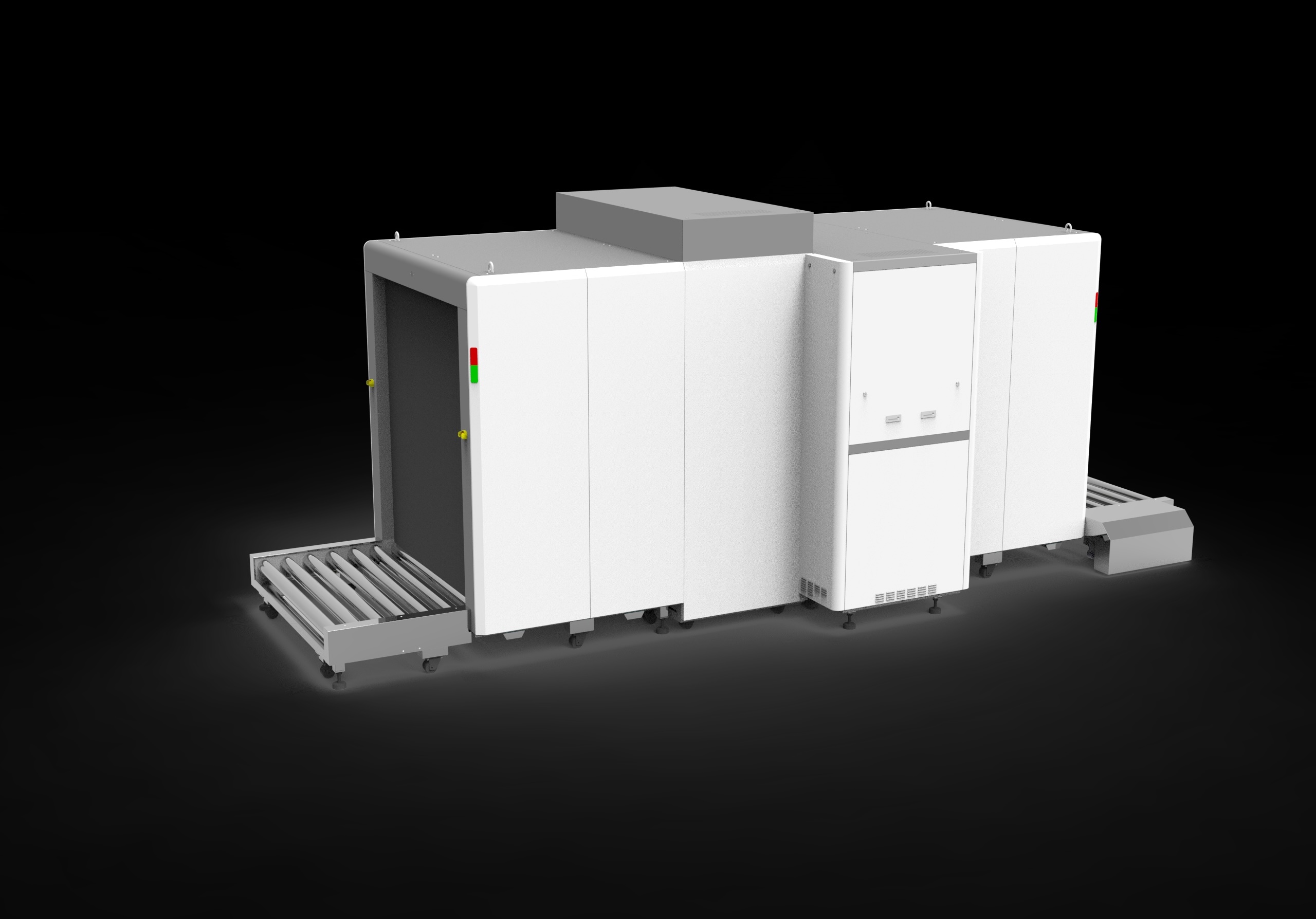

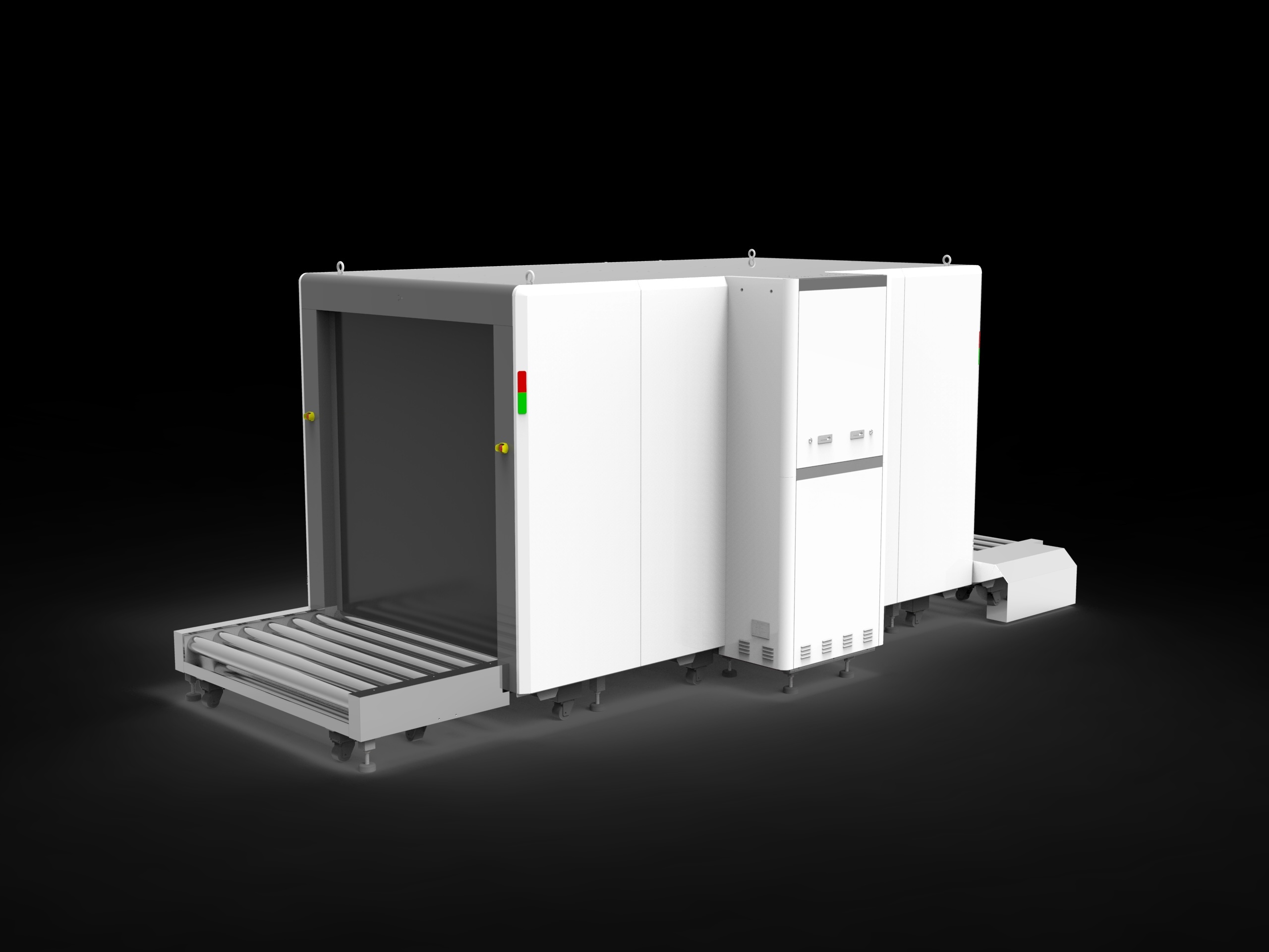

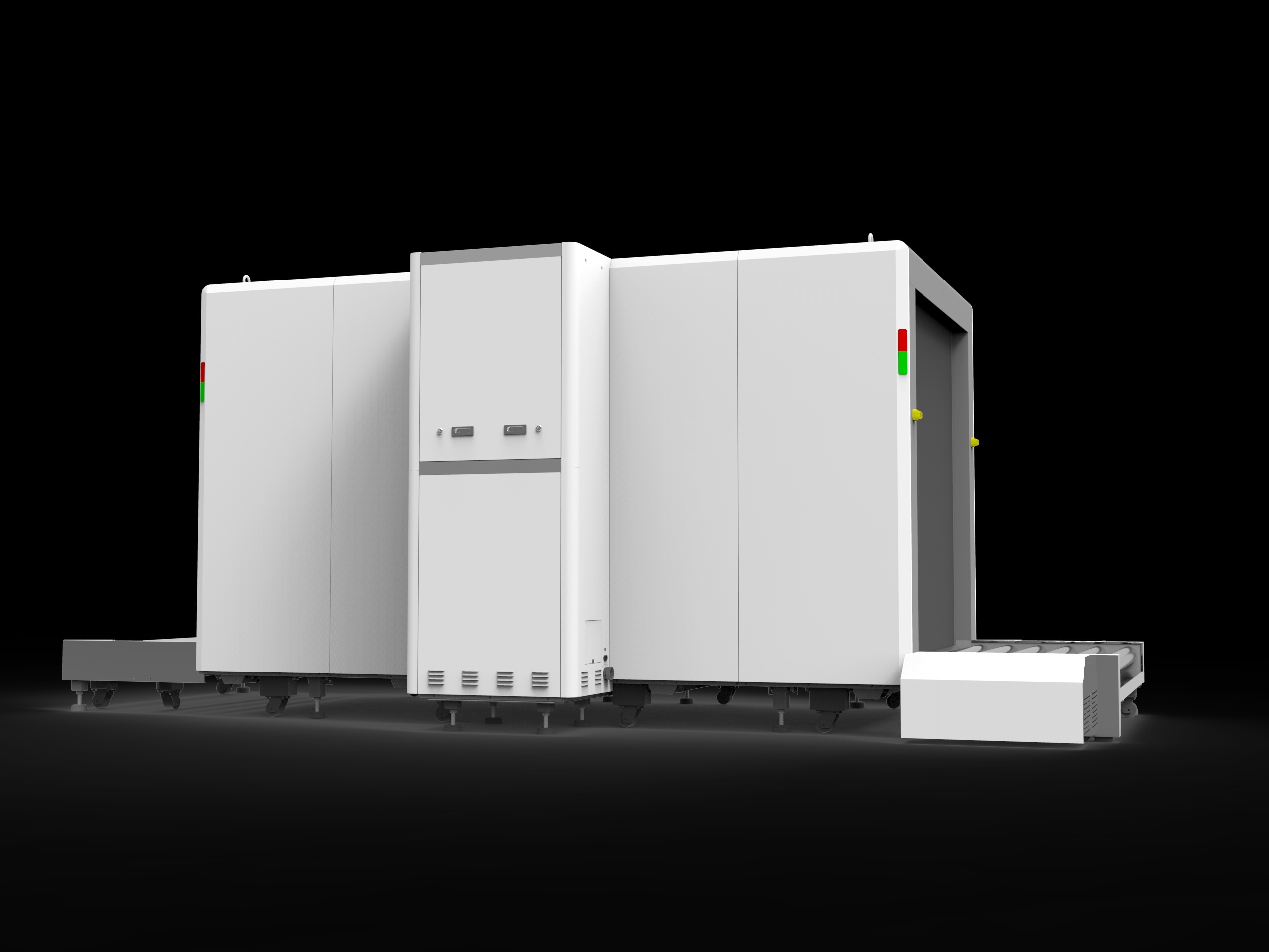

GS150180 X-Ray Pallet Cargo Inspection System

GS150180 X-Ray Pallet Cargo Inspection System

Heavy-Duty X-Ray Inspection for Pallets, Crates & Cargo

The GS150180 Single View X-Ray Pallet Cargo Inspection System is designed for high-security environments requiring reliable inspection of palletized cargo, large crates, and heavy freight. With a 1500 × 1800 mm tunnel opening, high penetration capability, and advanced image processing, GS150180 is ideal for airports, customs, logistics hubs, seaports, and critical infrastructure.

Why GS150180

• Large Tunnel Size: 1500 (W) × 1800 (H) mm – suitable for pallet and cargo inspection

• Single View, High Penetration X-Ray: Clear imaging of dense and mixed materials

• Heavy Load Capacity: Up to 2000 kg conveyor load

• Radiation Safe: Fully compliant with international radiation safety standards

• Designed for 24/7 Operation: Industrial-grade structure and components

Key Features & Benefits

High Image Quality & Threat Detection

• High-resolution imaging with material classification (organic / inorganic / mixed)

• Automatic explosives and narcotics detection

• Suspicious object highlighting and alarm

• Threat Image Projection (TIP) for operator training

Advanced Image Processing

• Color and black & white imaging

• Super enhancement, penetration enhancement, edge enhancement

• Organic / inorganic stripping

• Up to 64× continuous zoom

• Image pullback up to 30 images

Operational Efficiency

• Conveyor speed: 0.22 m/s (bi-directional)

• Automatic self-diagnostics and built-in test

• One-key power ON/OFF with patented design

• Multilingual user interface

Technical Specifications (Core)

Tunnel Size: 1500 × 1800 mm
Conveyor Load Capacity: 2000 kg
Conveyor Height: 350 mm
X-Ray Generator: Single generator (160 kV / 180 kV / 200 kV optional)
Steel Penetration: Up to 38–43 mm (typical)
Wire Resolution: AWG38 / AWG32
Detector: L-shaped array, 3712 channels
Spatial Resolution: 1.3 mm (horizontal & vertical)
Radiation Leakage: ≤1 μSv/h (5 cm from surface)
X-Ray Dose per Inspection: ≤4.5 μSv
Noise Level: <60 dB

System & Console

• Dual 21.5-inch Full HD monitors (1920×1080)

• Windows 10 operating platform

• Industrial keyboard

• Image storage up to 50,000 images

• Image export: USB, JPG, BMP formats

• UPS backup available (15 / 30 / 60 min options)

Industrial Design

• Heavy-duty frame with 304 stainless steel and reinforced steel structure

• Double-layer lead-impregnated safety curtains

• Designed for continuous, high-throughput cargo screening

Typical Applications

• Airport cargo terminals

• Customs & border inspection

• Seaport logistics centers

• Freight forwarding hubs

• Government & law enforcement facilities

• Critical infrastructure security

Optional Configurations

• Intelligent roller system

• Remote workstation

• Network & system integration

• Video monitoring

• Additional roller tables

• Extended UPS backup

Compliance & Safety

• Radiation leakage well below international limits

• Film safe (up to ISO 1600)

• Designed for global deployment
