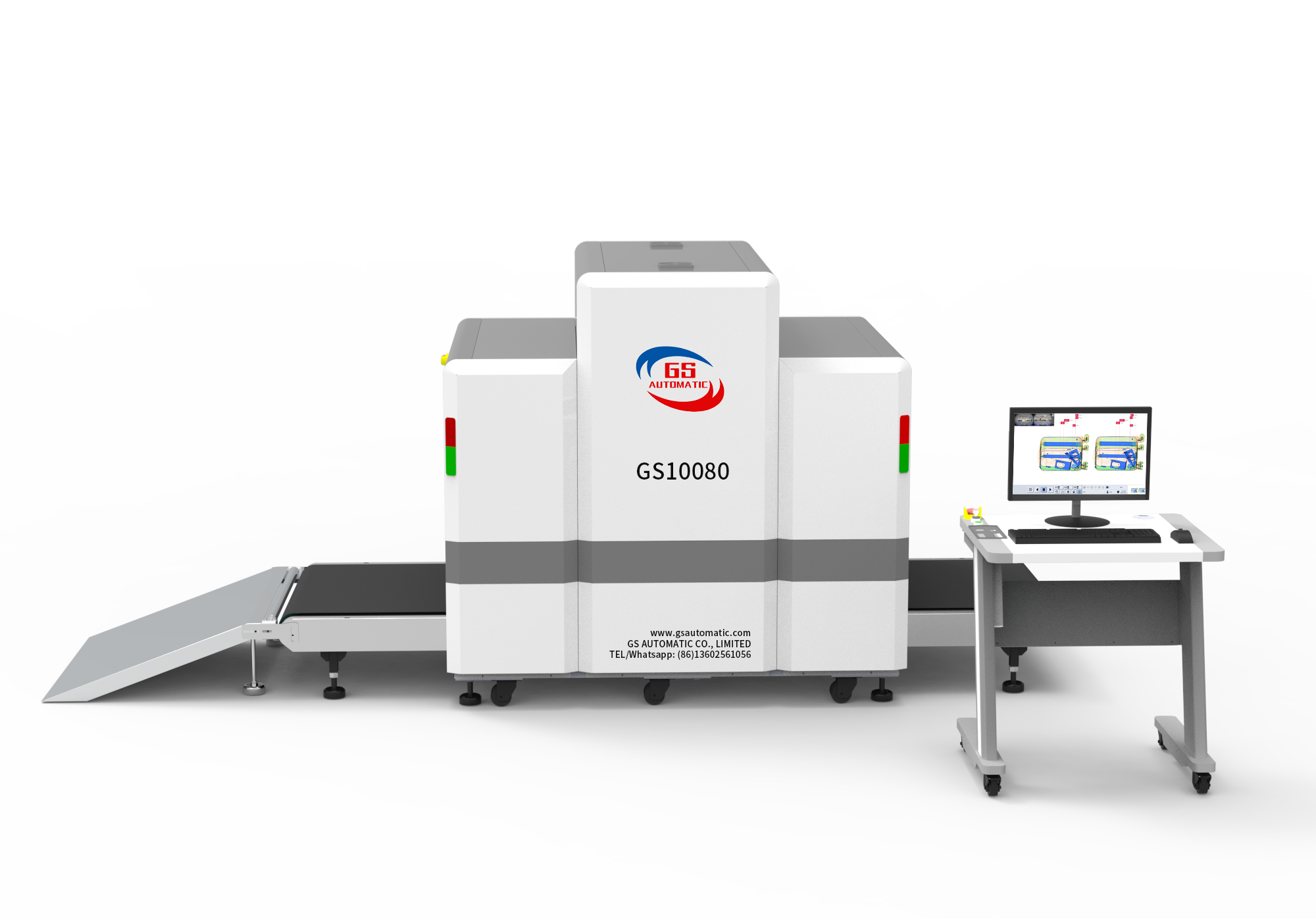

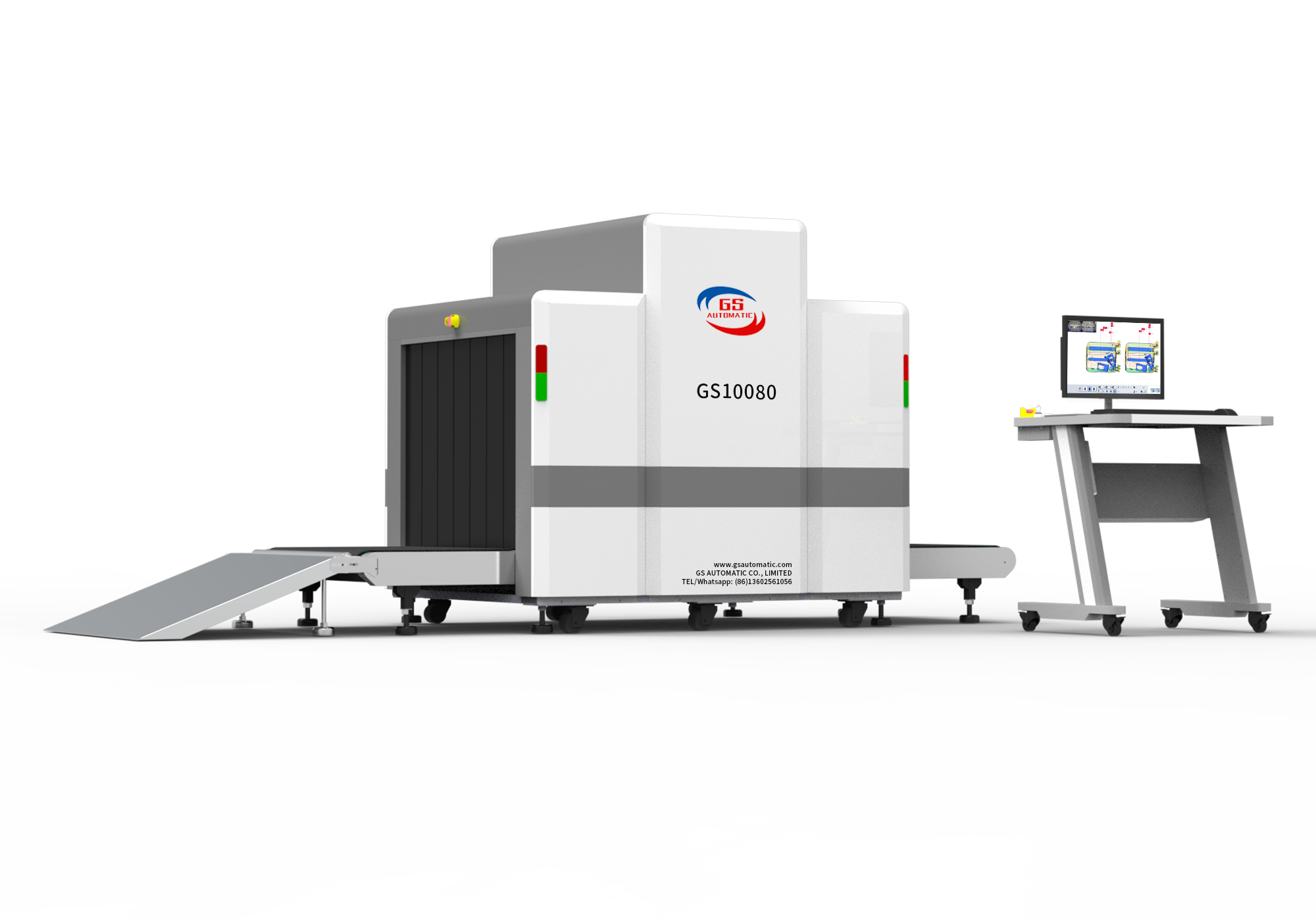

The GS10080 X-Ray Baggage Scanner is a high-capacity security inspection system designed for large-size baggage and parcel screening in high-risk and high-traffic environments.
With a 1000 × 800 mm tunnel opening, the system is capable of inspecting oversized luggage, cargo parcels, and boxed goods that conventional scanners cannot handle. GS10080 integrates advanced X-ray imaging technology, intelligent image processing software, and industrial-grade hardware to deliver stable, accurate, and continuous security screening performance.
The system is widely used in airports, customs checkpoints, logistics hubs, railway stations, and government facilities, where reliable threat detection and high throughput are critical.
Large Tunnel Size (1000 × 800 mm)
Ideal for oversized baggage and cargo inspection, reducing secondary manual checks and improving checkpoint efficiency.
Advanced X-Ray Imaging Technology
High penetration capability enables clear visualization of dense and complex objects, supporting accurate identification of concealed threats.
Color / black & white conversion
Negative image display
High and low penetration enhancement
Organic / inorganic material separation
Pseudo-color and edge enhancement
Intelligent Image Processing
Multiple image enhancement functions including:
Threat Detection Support
Designed to assist operators in detecting explosives, drugs, weapons, and prohibited items, improving inspection accuracy and response speed.
Stable & Reliable Operation
Built for continuous operation over 10,000 working hours, suitable for 24/7 security screening environments.
GS10080 is designed with operator efficiency and system security in mind.
User-friendly software interface for fast operator training
Multi-level user permission management
Automatic system self-check and fault diagnosis
Image storage and recall for post-event analysis
Image export supported in multiple formats (JPG, BMP, PNG, TIFF, GIF)
Complete operation logs for security auditing and compliance
The system also supports network connectivity, making it easy to integrate into centralized security management platforms.
Tunnel Size: 1000 × 800 mm
Conveyor Speed: 0.2 m/s
Maximum Load: 200 kg
Penetration: Up to 34 mm steel
Wire Resolution: AWG38
Spatial Resolution: ≤ 1.3 mm
Radiation Safety
Single inspection dose ≤ 4.0 μSv
Leakage radiation ≤ 0.5 μSv/h
Fully compliant with international radiation safety standards
Power Supply
AC 220V ±10–15%, 50±3Hz
Power consumption ≤ 1.0 KVA
Operating Environment
Temperature: 5°C – 40°C
Humidity: 0% – 90% RH (non-condensing)
GS10080 X-Ray Baggage Scanner is ideal for:
Airports & aviation security checkpoints
Customs & border inspection facilities
Railway and metro stations
Logistics and cargo screening centers
Government buildings and critical infrastructure sites
The system is especially suitable for locations requiring high throughput, large object inspection, and long-term stable operation.
GS10080 is manufactured under strict quality control standards and complies with multiple international certifications, including:
ISO 9001 / ISO 14001 / ISO 27001
CE, ROHS, FCC, REACH
Radiation Safety Certification
Public Security Equipment Quality Inspection Certification
