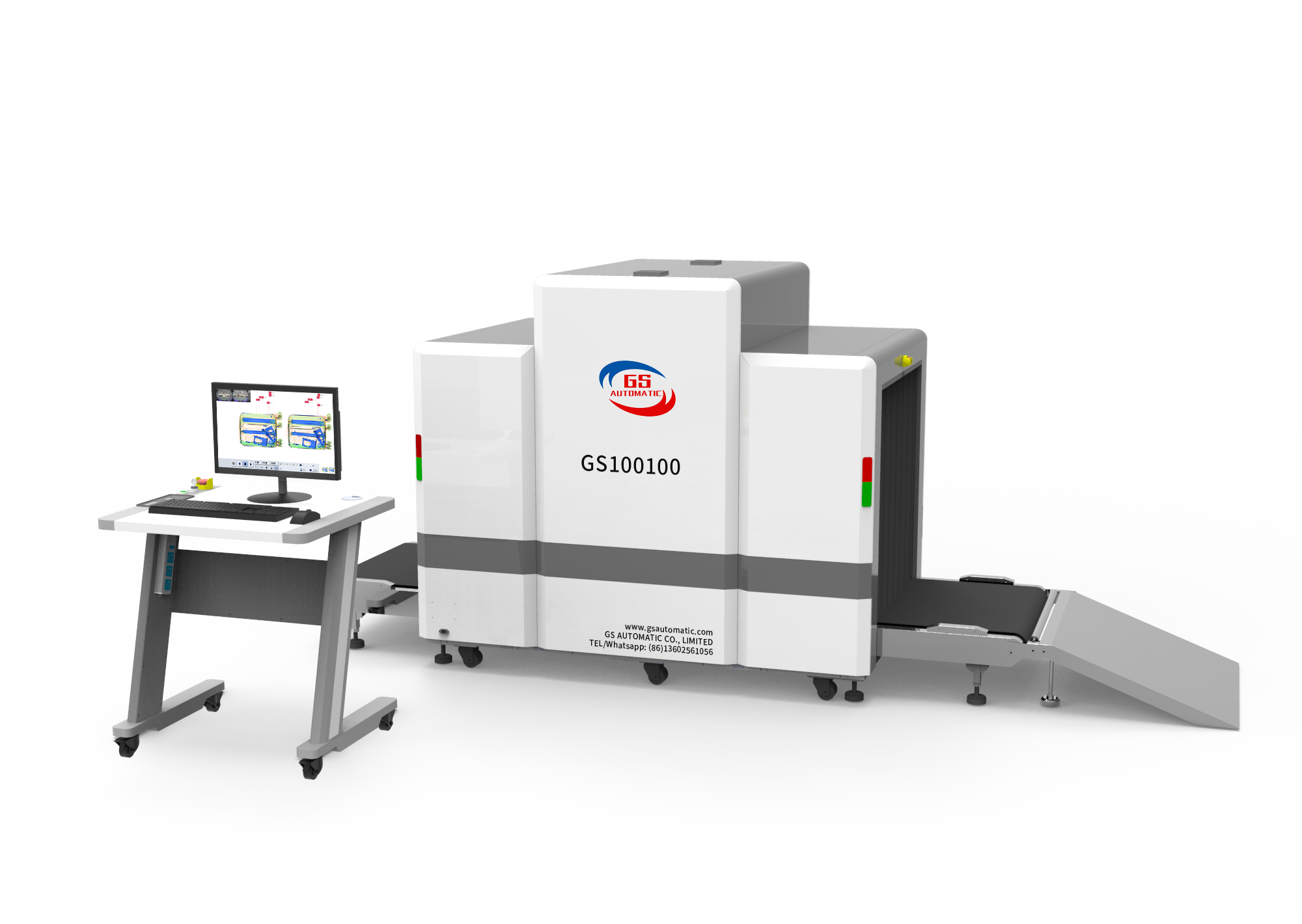

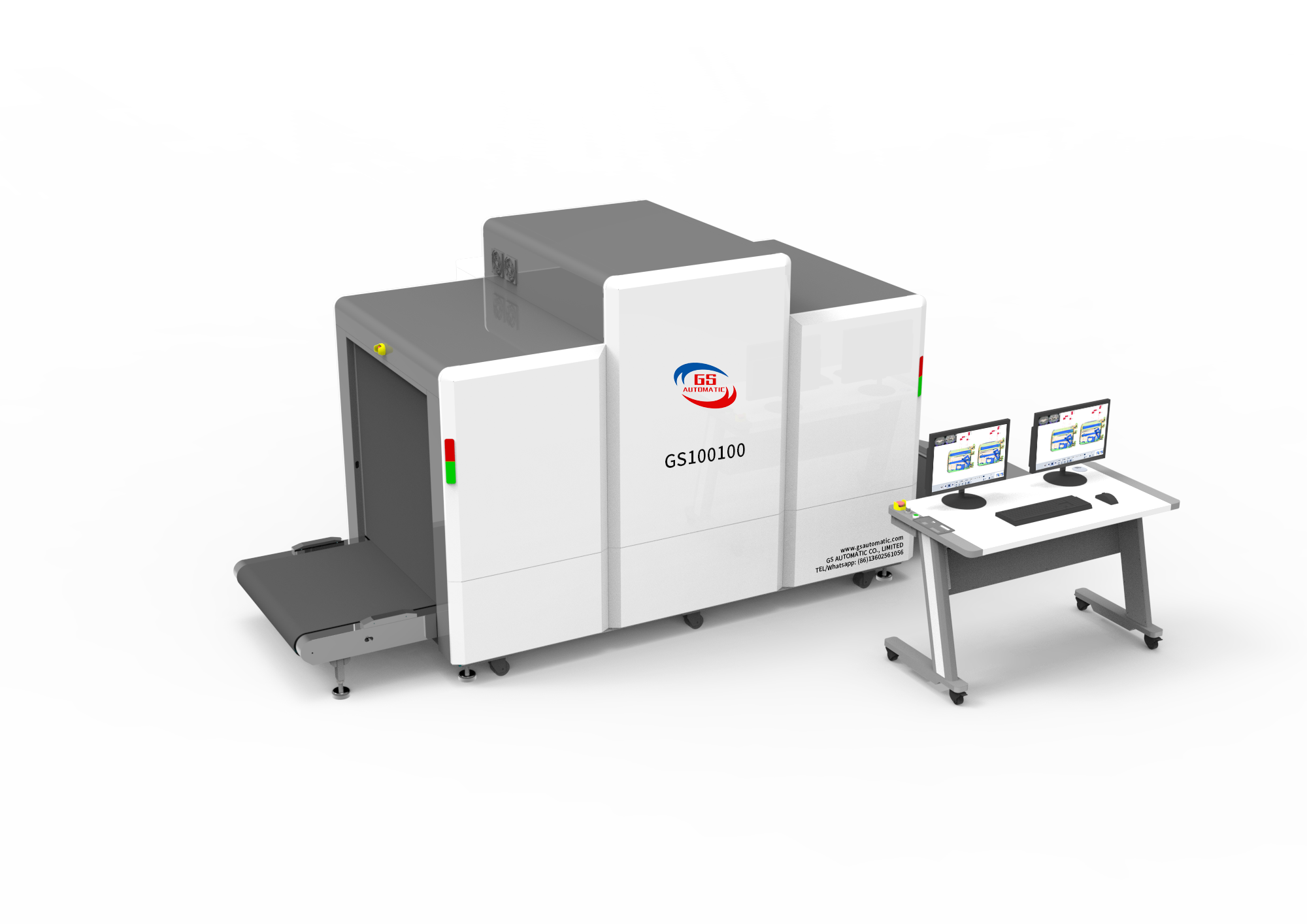

GS100100D Dual-View X-Ray Baggage Inspection System

Product Overview

The GS100100D Dual-View X-Ray Baggage Inspection System is a high-capacity, dual-energy security screening solution designed for large baggage, cargo parcels, and oversized luggage inspection in high-risk and high-traffic environments.

Equipped with two X-ray generators and dual-view perspective imaging, the system provides simultaneous top and side views, significantly improving threat detection accuracy while reducing operator error. It is ideal for airports, customs checkpoints, logistics hubs, ports, and critical infrastructure facilities requiring reliable, continuous inspection operations.

Advanced Imaging & Detection Capability

The GS100100D adopts dual-energy X-ray imaging technology, enabling automatic material classification and threat alert for organic, inorganic, and mixed materials. High penetration capability allows clear identification of concealed weapons, explosives, drugs, and contraband inside dense or cluttered baggage.

Key image processing functions include:

• Color / Black & White switching

• High & low penetration enhancement

• Organic / inorganic stripping

• Pseudo-color and general image enhancement

Up to 10,000 images are stored automatically, with recall of the last 30 scanned images for quick review and verification.

Reliable System Design & Operator Safety

Designed for long-term, mission-critical use, the GS100100D features:

• Automatic power-on self-test and fault self-diagnosis

• Uninterruptible Power Supply (UPS) to protect data and ensure safe shutdown

• Low radiation dosage compliant with GB15208.1-2005 safety standards

• Leakage radiation ≤ 0.5 μSv/h, ensuring operator and public safety

The system supports secure access control, operator management, and detailed usage logs to meet professional security operation requirements.

High Load Capacity & Industrial Performance

With a 1000 × 1015 mm tunnel opening and 200 kg conveyor load capacity, GS100100D is built to handle oversized luggage and cargo efficiently. The conveyor operates at a stable speed of 0.2 m/s, ensuring consistent throughput without compromising image quality.

Industrial-grade components, including oil-cooled 160 kV X-ray generators, guarantee stable performance even in continuous operation environments.

Network-Ready & Intelligent Software Platform

The system supports network integration for data management and image sharing. Advanced software functions include:

• Image query, export, and print (JPG, BMP, PNG, TIFF, GIF, XF)

• TIP (Threat Image Projection) training function

• Operator permission management

• Equipment diagnostics and system status monitoring

This intelligent software architecture allows fast operator onboarding and efficient daily operation.

Compliance & Certification

The GS100100D complies with major international and national standards, including:

• ISO 9001 / ISO 14001 / ISO 27001 / OHSMS 18001

• CE, ROHS, FCC, REACH

• FDA (USA)

• Radiation Safety Certification (China)

Typical Applications

• Airports & aviation security

• Customs & border control

• Ports & logistics inspection centers

• Government and critical infrastructure sites

• Large event security screening

Get a Quote

Looking for a reliable dual-view X-ray inspection system for your security project?

Our team supports OEM / ODM customization, system integration, and global deployment.

👉 Contact us now to get a technical proposal and quotation within 24 hours.

Product Features

• Dual generator, dual-view perspective imaging

• Dual-energy material classification

• Automatic threat alert for explosives and drugs

• Large tunnel size for oversized baggage

• Network-ready intelligent software

Technical Specifications

• Tunnel Size: 1000 × 1015 mm

• Conveyor Speed: 0.2 m/s

• Max Load: 200 kg

• X-ray Generator: 160 kV, oil-cooled

• Power Consumption: 1.5 kW

• System Weight: Approx. 1350 kg

Software & Operation

• Power-on self-test and fault diagnosis

• Image recall, storage, export, and print

• TIP training system

• Operator permission and log management

• Multi-language operation interface

Applications & Compliance

• Airports, customs, ports, logistics hubs

• Government and critical infrastructure

• CE, ISO, FCC, FDA compliant

• Radiation safety certified
