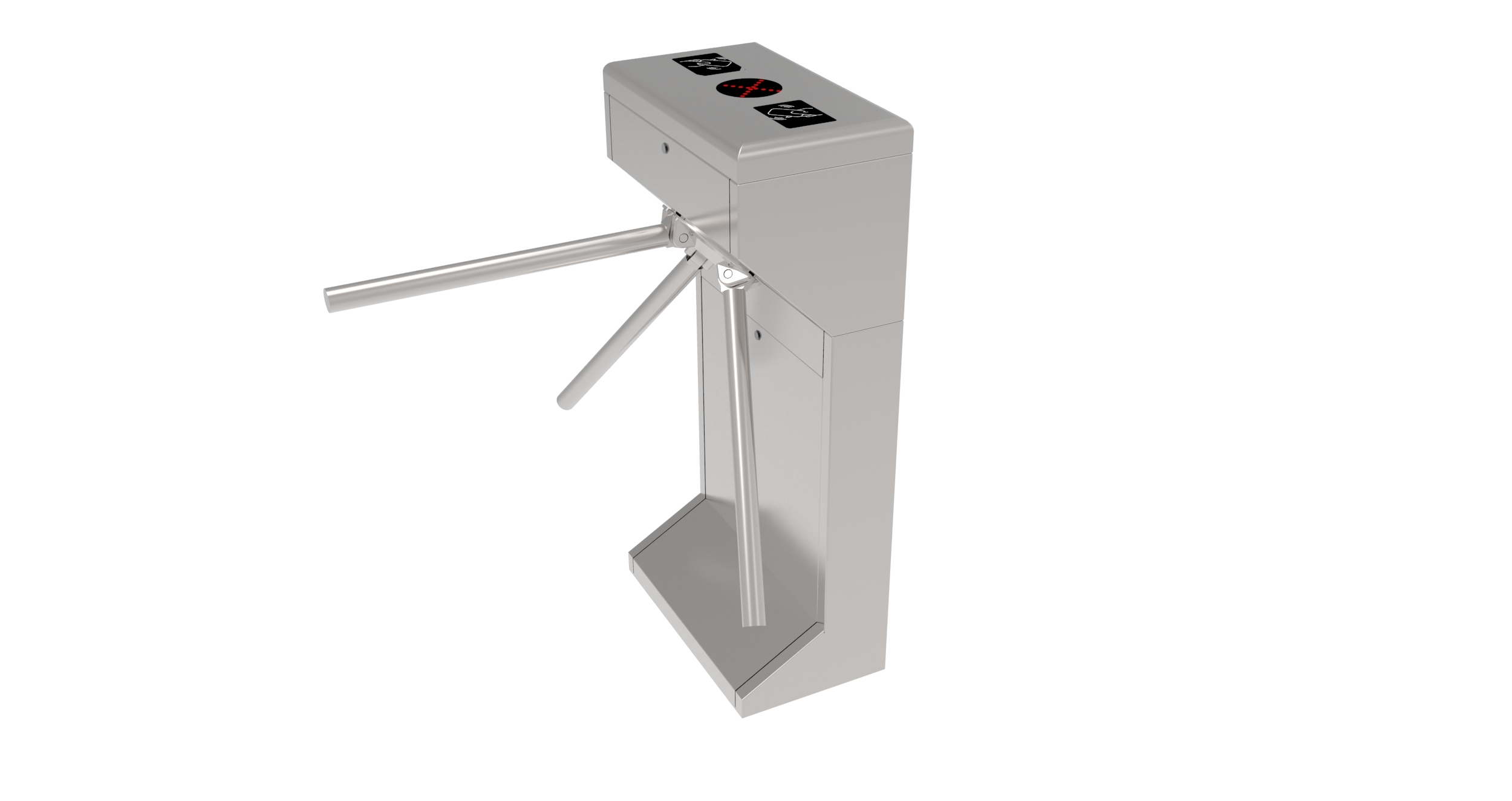

GS YL121 Tripod Turnstile for Access Control Integration

GS YL121 Tripod Turnstile

EPC-Ready Access Control Gate for System Integrators

The GS YL121 Tripod Turnstile is a professional-grade pedestrian access control solution engineered specifically for system integrators, EPC contractors, and large-scale security projects.

With a high-performance electro-mechanical drive, RS485 communication interface, and flexible operating logic, YL121 can be seamlessly integrated into complex access control and security management systems.

🔐 Anti-Tailgating Electro-Mechanical Mechanism

• Positive locking mechanism ensures one person per authorization

• Self-centering system guarantees smooth return to home position

• Anti-reverse (anti-backup) function activates after 60° rotation

• Designed for high-volume pedestrian traffic

🚦 Clear LED Direction & Status Indication

• Green arrow indicates authorized direction

• Red cross indicates denied or occupied passage

• Improves user guidance and reduces misuse

🚨 Emergency, Fire & Safety Integration

• Automatic drop-arm function in emergency or power failure

• Fire alarm drop-arm interface included

• Ensures safe evacuation and compliance with fire safety requirements

🔄 Flexible Operating Logic (Ideal for Integrators)

Supports multiple working modes via mechanical structure and system configuration:

• One-way card reading / one-way no entry

• Two-way card reading

• One-way card reading / one-way free passage

• Two-way free passage (with or without push button)

System automatically resets if passage is not completed within the preset time

(default 10 seconds, adjustable, with memory function).

🔗 System Integration & Communication

• Standard RS485 communication interface

• Communication distance up to 1200 meters

• Supports integration with:

  • Biometric systems

  • RFID / IC / ID card readers

  • Ticket scanners

  • Coin / token acceptors

  • Attendance systems

  • Push buttons and wireless remotes


  📌 Surface mounting for customer-supplied card readers.

🏗️ Durability for Project Use

• Passed 3,000,000 continuous cycles without failure

• Noise level < 55 dBA

• Suitable for indoor & outdoor installations (IP54)

• Designed for long-term continuous operation

🏢 Typical EPC & Integration Applications

Government facilities, transportation hubs, industrial parks, factories, commercial buildings, telecom facilities, universities, petrochemical sites, and large campuses.

🔧 Technical Specifications
