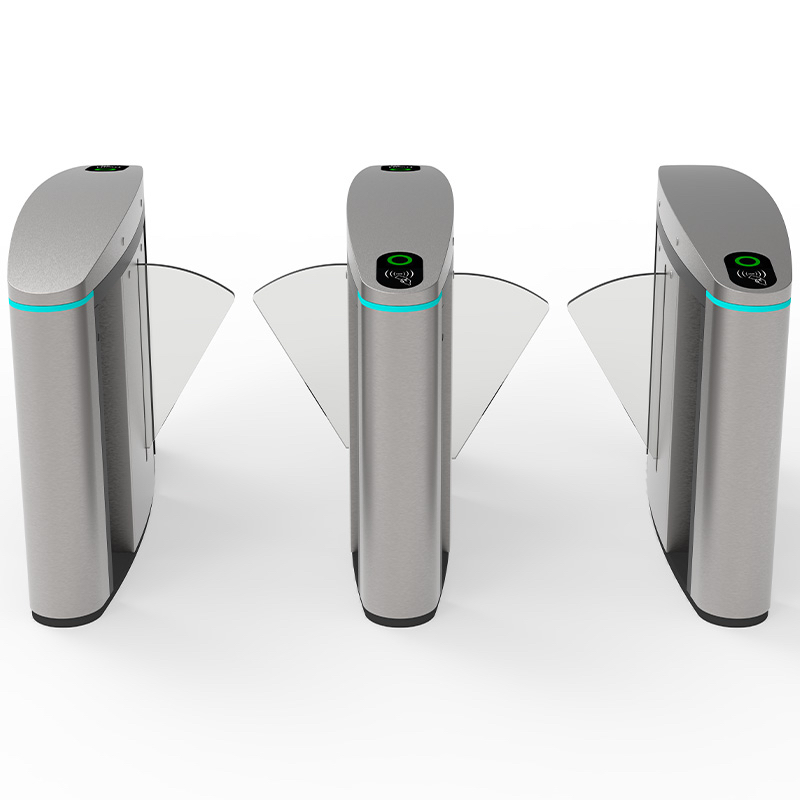

GS Y248 Flap Barrier Turnstile Access Control System

GS Y248 Flap Barrier Turnstile

Intelligent Passage Management for High-Traffic Projects

The GS Y248 Flap Barrier Turnstile is part of GS Automatic’s Intelligent Passage Management System, developed to control pedestrian entry and exit in high passenger flow environments where authorization, monitoring, and safety are required.

Compared with traditional manpower-based control methods, Y248 significantly improves operational efficiency by combining electronic authorization, real-time monitoring, and automated passage control, enabling a more scientific and intelligent management of pedestrian flow.

🔹 Robust Stainless Steel Construction

• Cabinet formed by pressed Stainless Steel AISI 304

• Internal structure with reinforced stainless steel frame

• Elegant appearance, corrosion-resistant, and durable

• Suitable for long-term continuous operation

🔹 Intelligent Control & Safety Functions

• Infrared sensing technology for real-time passage monitoring

• Effective anti-tailgating and intrusion prevention

• Audible alarm (visual alarm optional) for illegal entry

• Automatic flap retraction during power failure or emergency

• Integrated fire alarm interface to ensure safe evacuation

🔹 Flexible Operating Logic (Integrator Friendly)

• Normally Open (NO) and Normally Closed (NC) working modes

• Adjustable barrier operating speed based on passenger flow

• Configurable entry and exit operating modes

• Card reading with or without memory

• Timeout reset function for incomplete passages

🔹 Advanced Identification & Monitoring

• Rapid and accurate identification of:

  • Magnetic cards

  • Barcode / QR code cards

  • IC cards

  • ID cards

• Real-time failure self-detection with alarm indication

• Direction indicators guide passengers for correct entry and exit

• Optional passenger counting and display (up to 90,000 records)

🔹 Seamless System Integration

Equipped with standard input/output ports, the Y248 integrates easily with:

• RFID / IC / ID card systems

• Barcode and QR code readers

• Automatic Fare Collection Systems (AFCS)

• Integrated Transport Management Systems (ITMS)

• Centralized access control and monitoring platforms

• Far-end control and management systems

🔹 Lane Configuration & Expansion Capability

• Single lane

• Double lane

• Triple lane

• Multi-lane modular layouts

The system offers strong combination and expansion capability, allowing different passage types and future upgrades without affecting overall system performance.

🔹 Typical Applications

Metro and railway stations, airports, harbors, stadiums and arenas, commercial buildings, retail crowd control, amusement parks, transit fare collection systems, lobby access control, and public facilities with high pedestrian flow.

🔧 Technical Specifications

• Specifications and dimensions may vary depending on lane configuration and project requirements.
