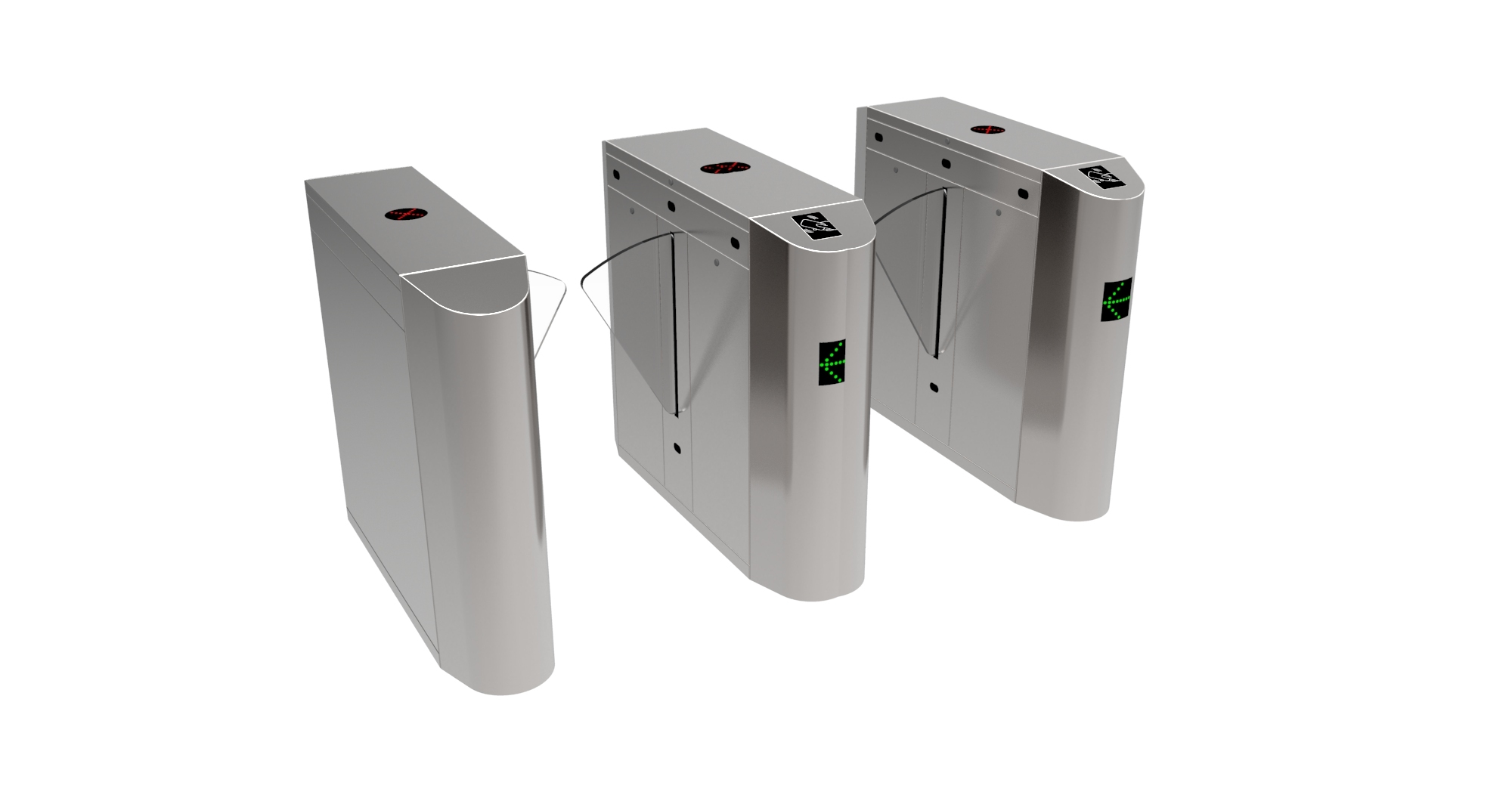

GS Y205 Optical Turnstile Speed Gate for Access Control Integration

GS Y205 Optical Turnstile

EPC-Ready Speed Gate for High-Throughput Access Control Projects

The GS Y205 Optical Turnstile, also known as a Speed Gate, is designed for controlled pedestrian access in commercial buildings, government facilities, transport hubs, and enterprise campuses.

Engineered for system integrators and EPC contractors, the Y205 combines retractable acrylic barriers, advanced optical sensing technology, and flexible control logic to ensure smooth pedestrian flow while effectively preventing tailgating and unauthorized access.

🔍 Advanced Optical Anti-Tailgating Technology

• Multiple infrared sensors monitor pedestrian movement

• Prevents tailgating, reverse passage, crawling, and illegal entry

• Personal surveillance recommended for high-security environments

🔺 Retractable Acrylic Wing Design

• Triangular acrylic glass wings retract fully into the housing

• Passage becomes completely clear after authorization

• Wings automatically close after passage or adjustable timeout

• Opening / closing time adjustable from 0.8 to 1.5 seconds

🚦 LED Direction & Status Indication

• 90 mm diameter LED indicators flush-mounted on the top lid

• Green arrow: authorized passage direction

• Red cross: passage denied or occupied

• Improves pedestrian guidance and operational efficiency

🚨 Emergency, Fire & Safety Logic

• Power failure: wings automatically open for free exit

• Fire alarm input: voltage-free contact triggers fail-safe mode

• Double anti-clipping protection:

  • Infrared photocell anti-clipping

  • Mechanical anti-clipping design


  🔄 Flexible Operating Modes (Integrator Friendly)

• Normally Open (NO) mode: lane open by default, closes on unauthorized entry

• Normally Closed (NC) mode: lane closed by default, opens on authorization

• Auto reset if no passage within valid card-reading time

• Adjustable closing delay from 1–60 seconds after valid authorization

🔗 System Integration & Interfaces

• Input: 12V dry contact

• Potential-free contact interface for card readers or push buttons

• Card reader inhibit and reset output signals available

• Compatible with:

  • IC / ID cards

  • Barcode / magnetic cards

  • Attendance systems

  • Access control platforms


  📌 Surface mounting for customer-supplied readers.

🏢 Typical EPC & Integration Applications

Government buildings, corporate headquarters, office towers, data centers, financial institutions, telecom facilities, educational campuses, and industrial parks.

🔧 Technical Specifications
