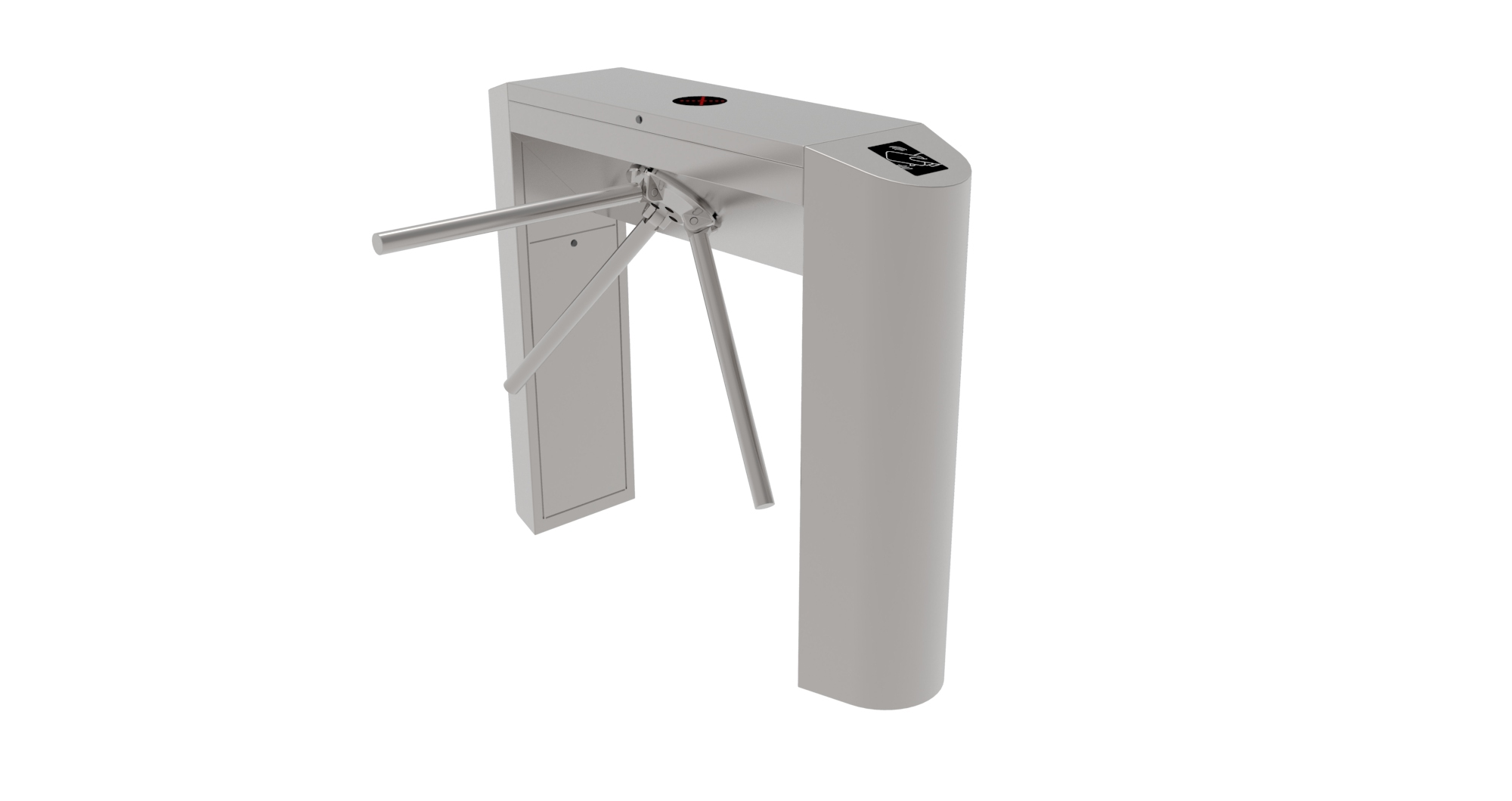

GS Y105 Waist High Tripod Turnstile

GS Y105 Waist High Tripod Turnstile

Reliable & Cost-Effective Pedestrian Access Control

The GS Y105 Waist High Tripod Turnstile is designed to control pedestrian access in security-controlled areas with high efficiency and reliability. It provides bi-directional passage control, smooth operation, and effective anti-tailgating protection, making it suitable for both indoor and outdoor applications.

With a tri-arm (3 × 120°) mechanical structure and an advanced electro-mechanical drive system, the Y105 ensures stable performance under continuous operation conditions.

 🔐 Electro-Mechanical Control Mechanism

Positive locking mechanism prevents multiple passages per authorization
Self-centering design ensures smooth and complete rotation to home position
Anti-reverse (anti-backup) function prevents reverse movement after 60° rotation

🚦 Clear LED Status Indication
 Green arrow indicates authorized passage direction
Red cross indicates unavailable or occupied passage
Improves user guidance and traffic flow efficiency

🚨 Emergency & Fire Safety Function
 Automatic drop-arm function during power failure or emergency
Creates a clear and unobstructed evacuation route
Supports fire alarm and remote fire control integration

🔌 Flexible Access Control Integration
 Supports dry contact signal input
Compatible with RFID, IC/ID card readers, QR code readers, biometric systems, and push buttons
Surface mounting for customer-supplied card readers


📊 Optional Functions
 Optional passage usage counter with LED display
Optional mechanical (non-electrical) operation mode


🏢 Typical Applications
 Government buildings, office entrances, commercial centers, factories, schools, universities, banks, telecom facilities, and public venues.


🔧 Technical Specifications
