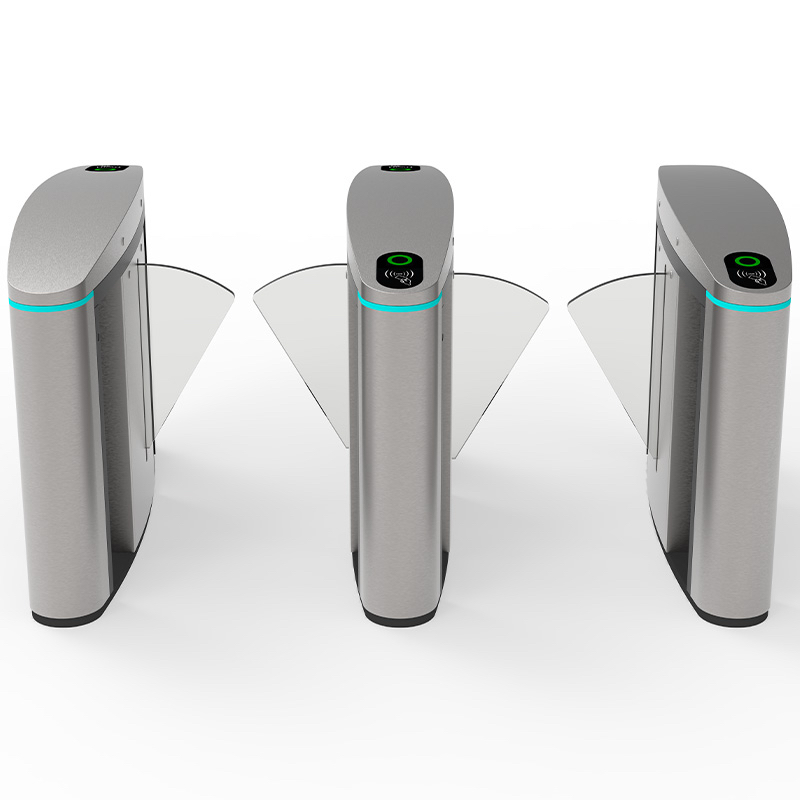

GS H208 Flap Barrier Turnstile Access Control System

GS H208 Flap Barrier Turnstile

Intelligent Passage Management for High-Traffic Projects

The GS H208 Flap Barrier Turnstile is part of GS Automatic’s Intelligent Passage Management System, designed to replace traditional manpower-based access control with a scientific, automated, and efficient solution.

It is widely used in high passenger flow environments where access authorization, counting, and safety monitoring are required, such as transportation systems and large public facilities.

🔹 Robust Stainless Steel Construction

• Cabinet formed by pressed Stainless Steel AISI 304

• Internal structure with reinforced stainless steel frame

• Elegant appearance, corrosion-resistant, and durable

• Designed for long-term operation in demanding environments

🔹 Intelligent Control & Safety Features

• Infrared sensing technology for real-time passage monitoring

• Effective anti-tailgating and intrusion prevention

• Audible alarm (visual alarm optional) for illegal entry

• Automatic flap retraction during power failure or emergency

• Integrated fire alarm interface ensures smooth evacuation

🔹 Flexible Operating Logic (Integrator Friendly)

• Normally Open (NO) and Normally Closed (NC) modes

• Adjustable barrier operation speed based on passenger flow

• Configurable entry / exit operating modes

• Card reading with or without memory

• Timeout reset function for incomplete passages

🔹 Advanced Intelligent Functions

• Rapid and accurate identification of:

  • Magnetic cards

  • Barcode / QR code cards

  • IC cards

  • ID cards

• Real-time failure self-detection with alarm indication

• Direction indicators guide passengers for entry and exit

• Optional passenger counting and display (up to 90,000 records)

🔹 Seamless System Integration

Equipped with standard input/output interfaces, H208 integrates easily with:

• RFID / IC / ID card systems

• Barcode & QR code readers

• Automatic Fare Collection Systems (AFCS)

• Integrated Transport Management Systems (ITMS)

• Centralized access control and monitoring platforms

• Far-end control and management systems

🔹 Lane Configuration & Expansion

• Single lane

• Double lane

• Triple lane

• Multi-lane modular layouts

The system supports strong expansion capability, allowing additional lanes or mixed passage types without affecting overall performance.

🔹 Typical Applications

Metro and railway stations, airports, stadiums and arenas, harbors, commercial buildings, retail crowd control, amusement parks, transit fare collection systems, lobby access control, and interior or perimeter security.

🔧 Technical Specifications

• Specifications and dimensions may vary according to lane configuration and project requirements.
