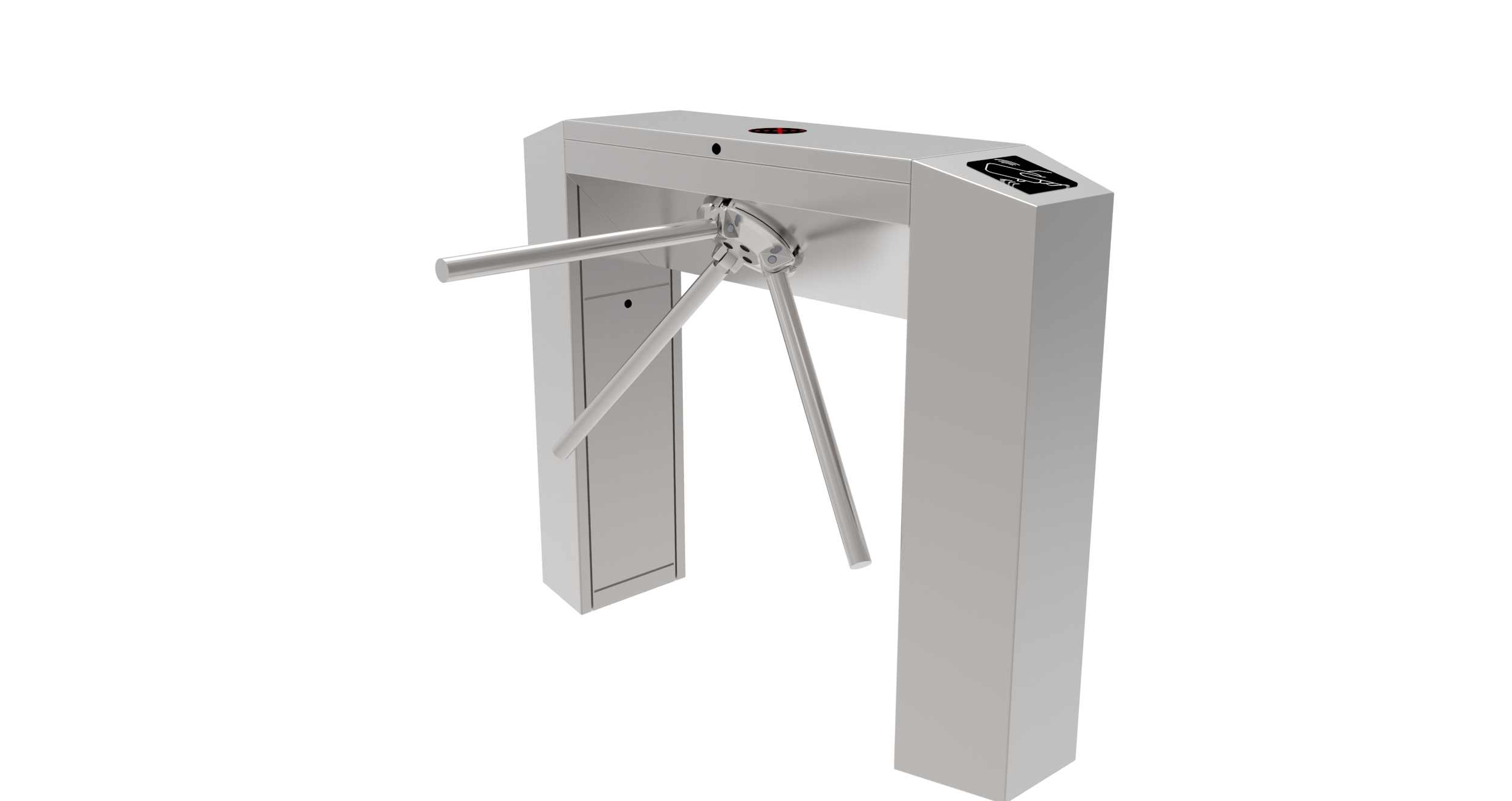

GS E142 Waist High Tripod Turnstile Access Control System

GS E142 Waist High Tripod Turnstile

Cost-Effective Tripod Turnstile for High-Traffic Access Control Projects

The GS E142 Waist High Tripod Turnstile is designed to control pedestrian entry and exit in security-controlled areas with high pedestrian traffic.

Utilizing a tri-arm tripod configuration with 3 × 120° rotation, the E142 provides an effective anti-tailgating solution while maintaining smooth and efficient pedestrian flow.

With its robust electro-mechanical mechanism and flexible operating logic, the E142 is widely used in government facilities, commercial buildings, transportation access points, and industrial projects.

🔹 Reliable Electro-Mechanical Tripod Mechanism

• Electro-mechanical head mechanism located inside the cabinet

• Positive lock action prevents two passages at the same time

• Self-centering mechanism ensures complete rotation to home position

• Anti-backup device prevents reverse rotation after 60° movement

• Designed for long-term, high-frequency operation

🔹 Flexible Passage Control Logic

• Bi-directional electronically controlled passage

• • One-way card reading / one-way no entry

  • Two-way card reading

  • One-way card reading / one-way free passage

  • Two-way free passage (with or without push button)

    Configurable working modes:

• Automatic reset if passage is not completed within preset time (default 10 s)

🔹 Safety, Emergency & Fire Control

• Automatic drop arm function during power failure or emergency

• Creates a clear escape path for emergency evacuation

• Fire alarm interface for remote arm drop / lift control

• Fault self-detection with alarm indication

🔹 System Integration Capability

The GS E142 can be easily integrated with a wide range of third-party systems, including:

• RFID / IC / ID card readers

• Biometric systems

• Coin / token acceptors

• Ticket scanners

• Computer attendance systems

• Electronic / LCD counters

• Push-button consoles and wireless remote controls

📌 Card readers are customer supplied and surface mounted.

🔹 Status Indication & User Guidance

• LED direction indicators

• Green arrow indicates authorized passage

• Red cross indicates unavailable or opposite direction

🔹 Optional Functions

• LED usage counter for passage statistics

• Mechanical free-rotation in one direction (non-electrical mode)

• Card reading with or without memory function

🔹 Typical Applications

Government buildings, offices, banks, retail and commercial facilities, telecommunications, IT centers, leisure facilities, petrochemical sites, educational institutions, and other locations requiring cost-effective pedestrian access control.

🔧 Technical Specifications
