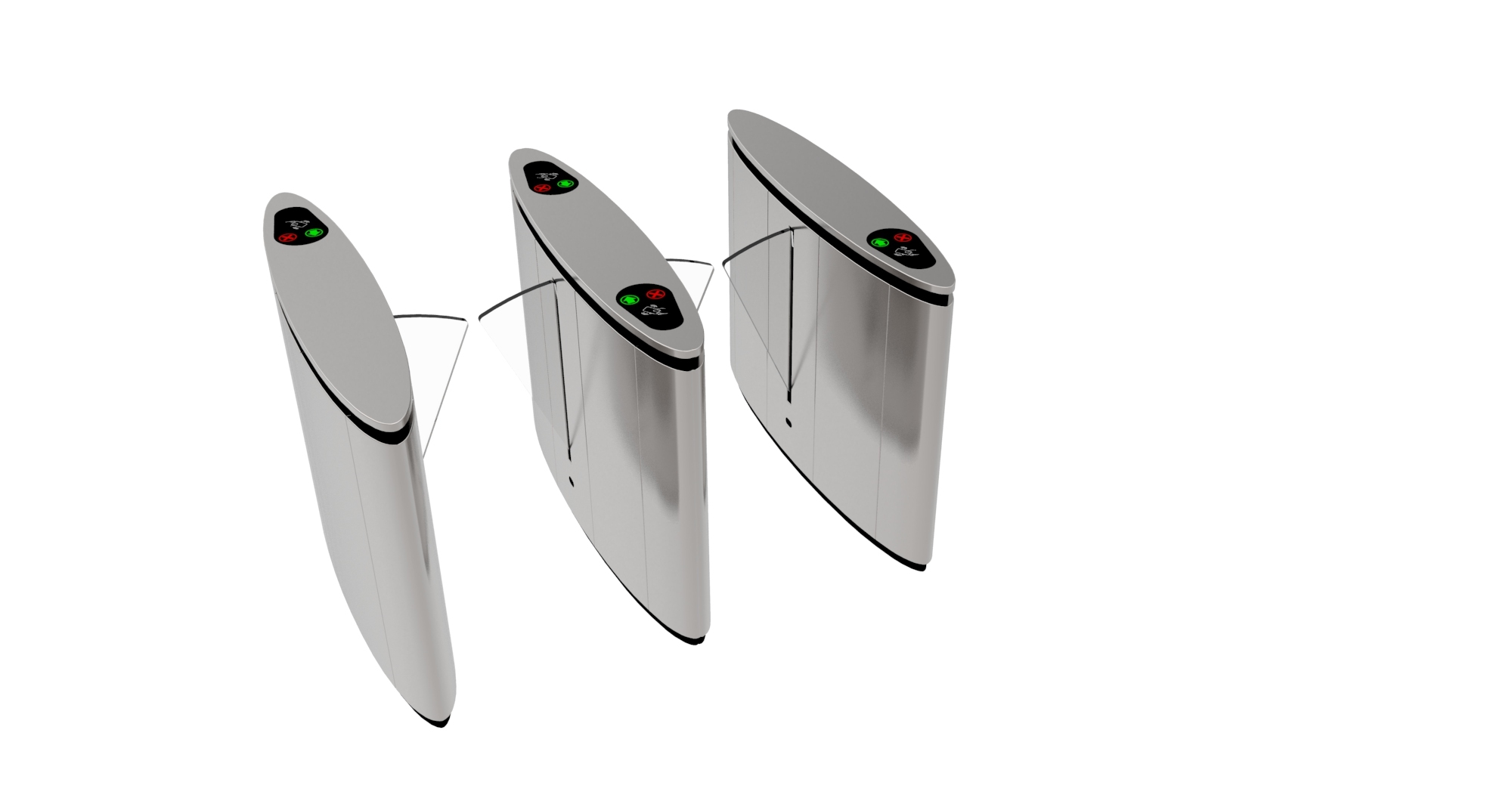

GS A206 Optical Turnstile Speed Gate Access Control System

GS A206 Optical Turnstile

Project-Ready Speed Gate for System Integrators

The GS A206 Optical Turnstile, also known as a Speed Gate, is designed to control pedestrian entry and exit in restricted or semi-restricted areas.

It is widely used in high-traffic commercial and public facilities, where smooth pedestrian flow, access control integration, and anti-tailgating protection are required.

Equipped with ultra-quiet retractable acrylic barriers and advanced optical sensor technology, the A206 provides reliable access control performance while maintaining an elegant appearance suitable for modern architectural environments.

🔍 Optical Anti-Tailgating & Safety Technology

• Multiple infrared optical sensors monitor pedestrian movement

• Prevents tailgating, reverse passage, crawling, and unauthorized entry

• • Infrared photocell anti-clipping

  • Mechanical anti-clipping design

    Double anti-clipping protection:

• Personal surveillance recommended for high-security environments

🔺 Retractable Acrylic Wing Design

• Aisle blocked by triangular retractable acrylic glass wings

• After authorization, wings retract fully into the housing

• Passage becomes completely unobstructed

• Wings close immediately after passage or after adjustable timeout

• Adjustable opening and closing time: 0.8 – 1.5 seconds

🚦 LED Direction & Status Indication

• 90 mm diameter LED indicators flush-mounted on top lid

• Green arrow indicates authorized passage direction

• Red cross indicates lane not available or already in use

• Improves pedestrian guidance and operational efficiency

🚨 Emergency, Fire & Fail-Safe Operation

• Power failure: wings automatically open for free exit

• Fire alarm interface: voltage-free contact supported for fail-safe mode

• Built-in alarm for unauthorized passage attempts

🔄 Flexible Operating Modes (Integrator Friendly)

• Single passage in set direction

• Bi-directional single passage

• Free passage in set direction

• Always free or always locked

• Auto reset function if no passage within valid card-reading time

• Adjustable delay closing time: 1–60 seconds

🔗 Access Control Integration

• Input signal: 12V dry contact

• Potential-free contact for card readers or push buttons

• Card reader inhibit and reset output signals available

• Compatible with:

  • IC cards

  • ID cards

  • Barcode & magnetic cards

  • Attendance and access control systems


  📌 Surface mounting for customer-supplied readers.

🏗️ Materials, Finish & Customization

• Housing:

  • Painted metal sheet

  • Stainless steel AISI 304 / AISI 316

• Barrier wings:

  • Plastic plate

  • Toughened glass

  • Stainless steel frame

• Optional lid: stainless steel or artificial stone (black / brown)

• High-quality powder coating and lacquered finishes available

🏢 Typical Project Applications

Government buildings, office towers, financial institutions, telecom facilities, IT campuses, banks, publishing houses, leisure centers, petrochemical sites, and educational institutions.

🔧 Technical Specifications
