Model: 275-GS600

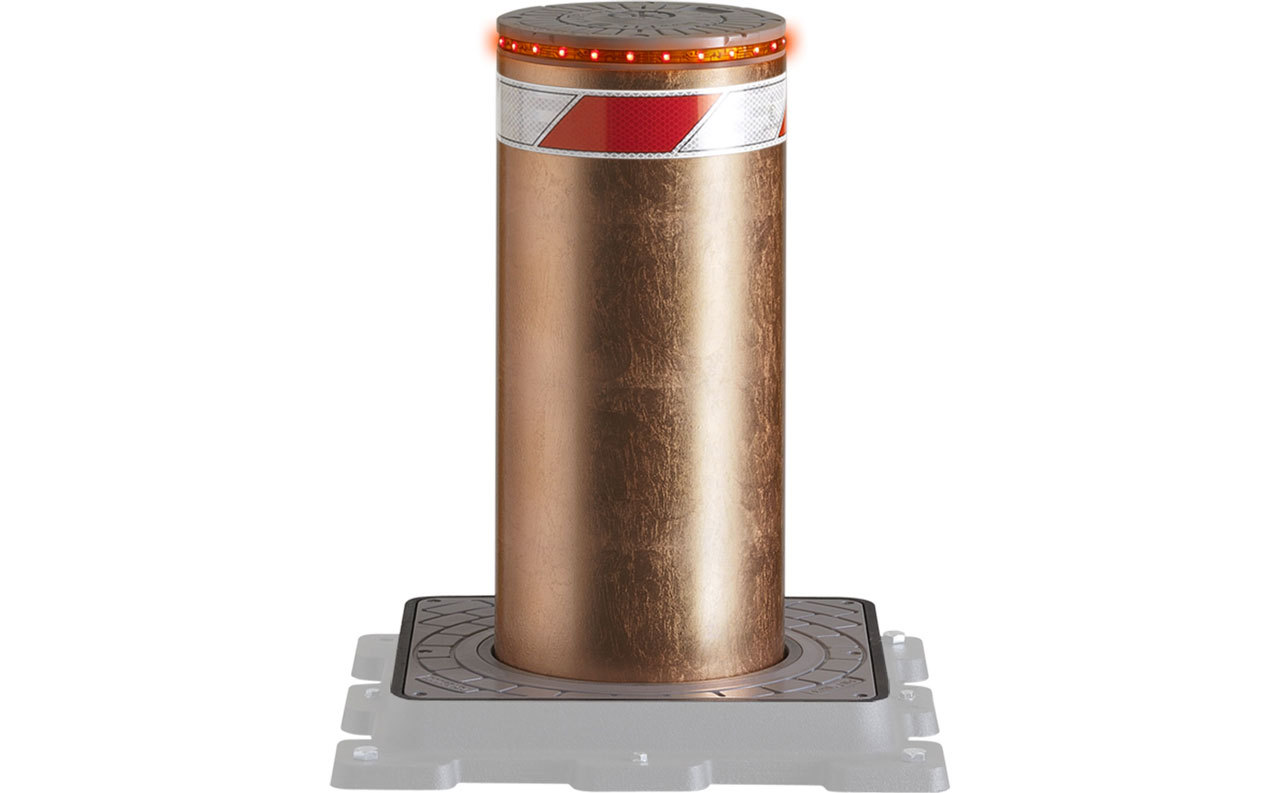

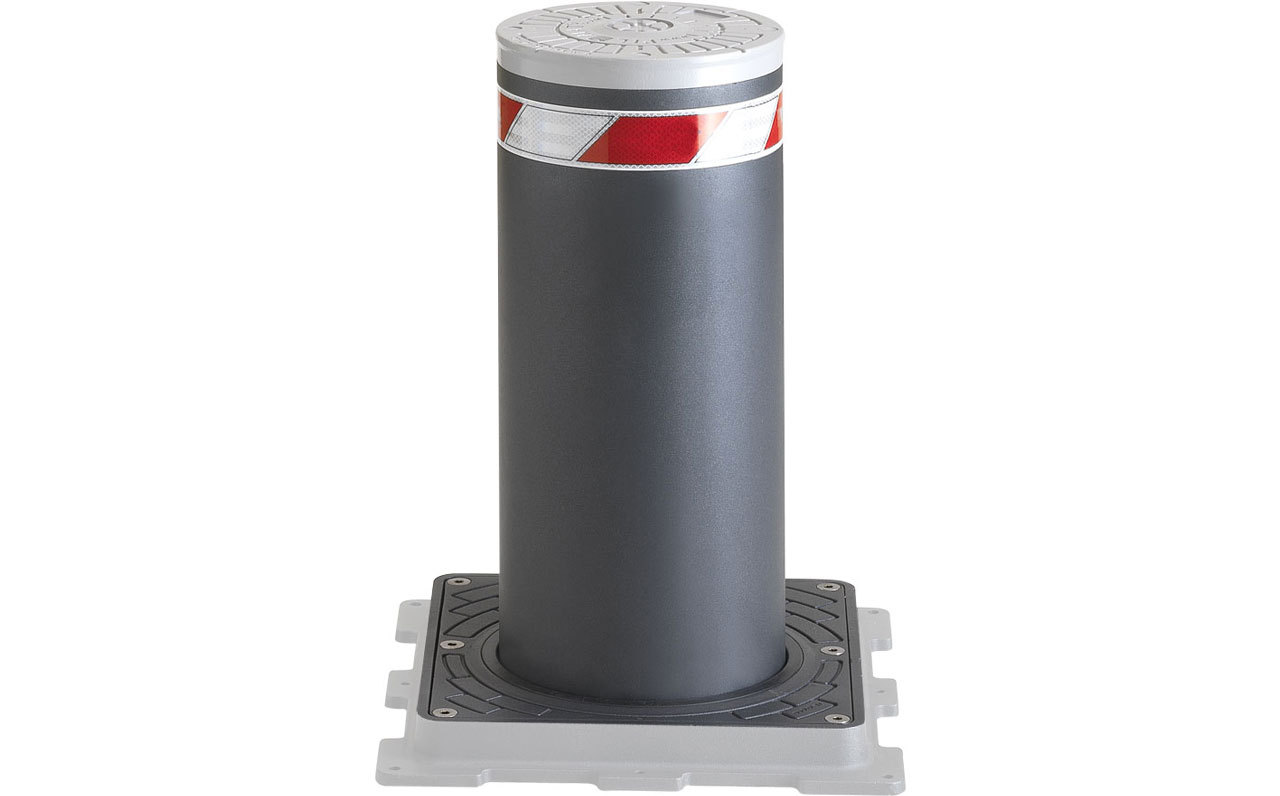

275-GS600 Automatic Rising Bollard is an electro-hydraulic retractable bollard with a built-in hydraulic pump, designed for high-security access control and perimeter protection.
It delivers outstanding impact resistance, smooth operation, and reliable performance in all weather conditions, making it ideal for government, commercial, and critical infrastructure sites.
The 275-GS600 Automatic Rising Bollard is an electric-hydraulic retractable bollard system with a built-in hydraulic pump, engineered for intensive daily operation and high-security vehicle access control.
Designed to combine security, durability, and architectural aesthetics, this bollard provides strong perimeter protection without creating a sense of visual aggression or disruption to public environments.
Its integrated hydraulic system ensures stable, low-noise, and smooth lifting performance, even under extreme weather conditions ranging from -40°C to +60°C.
Built-In Hydraulic Pump Design
Eliminates the need for external hydraulic units, simplifying installation and reducing maintenance—especially suitable for long-distance control setups up to 80 meters.
High Impact & Breakout Resistance
Designed to withstand 30,000J impact force and 150,000J breakout force, offering reliable protection against unauthorized vehicle intrusion.
Extreme Weather Reliability
Proven performance in harsh climates, including severe winter conditions.
Automatic Emergency Lowering
In the event of a power failure, the bollard automatically lowers to allow vehicle passage, ensuring operational safety.
Long Service Life
Rated for up to 5,000,000 cycles, supporting high-traffic locations with up to 2,000 operations per day.
|
Parameter |
Specification |
|---|---|
|
Model |
275-GS600 |
|
Bollard Diameter |
275 mm |
|
Rising Height |
600 mm |
|
Cylinder Material |
AISI 304 Stainless Steel (Standard) |
|
Finish |
Brushed Stainless Steel or RAL Powder Coated |
|
Rising Speed |
10 cm/s |
|
Lowering Speed |
15 cm/s |
|
Hydraulic System |
Built-in Hydraulic Pump |
|
Impact Resistance |
30,000 J |
|
Breakout Resistance |
150,000 J |
|
Protection Grade |
IP67 |
|
Operating Temperature |
-40°C to +60°C |
|
Emergency Lowering |
Yes (Automatic with Blackout Device) |
|
Service Life |
Up to 5,000,000 cycles |
The 275-GS600 bollard supports seamless integration with multiple access control systems, including:
Card access control systems
Parking barrier systems
Computerized management platforms
Charging and ticketing systems
It can also be controlled via wireless remote control with a range of up to 100 meters, depending on site conditions.
Government & military facilities
Airports & transportation hubs
University campuses
Commercial complexes & shopping centers
Hospitals & residential communities
Stadiums & public event venues
Over 29 years of experience in security access solutions
In-house design, manufacturing, and quality control
Proven installations worldwide
Customization available for size, color, and control logic
