High-security automatic hydraulic rising bollard designed for intensive vehicle access control in government, military and critical infrastructure sites. Certified to 7200kg @ 48km/h impact standard (M30/K4).

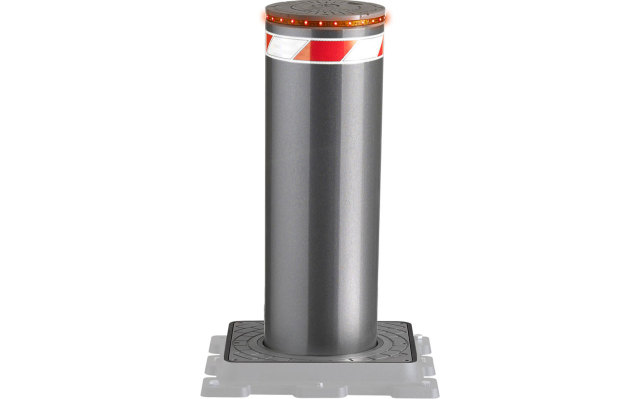

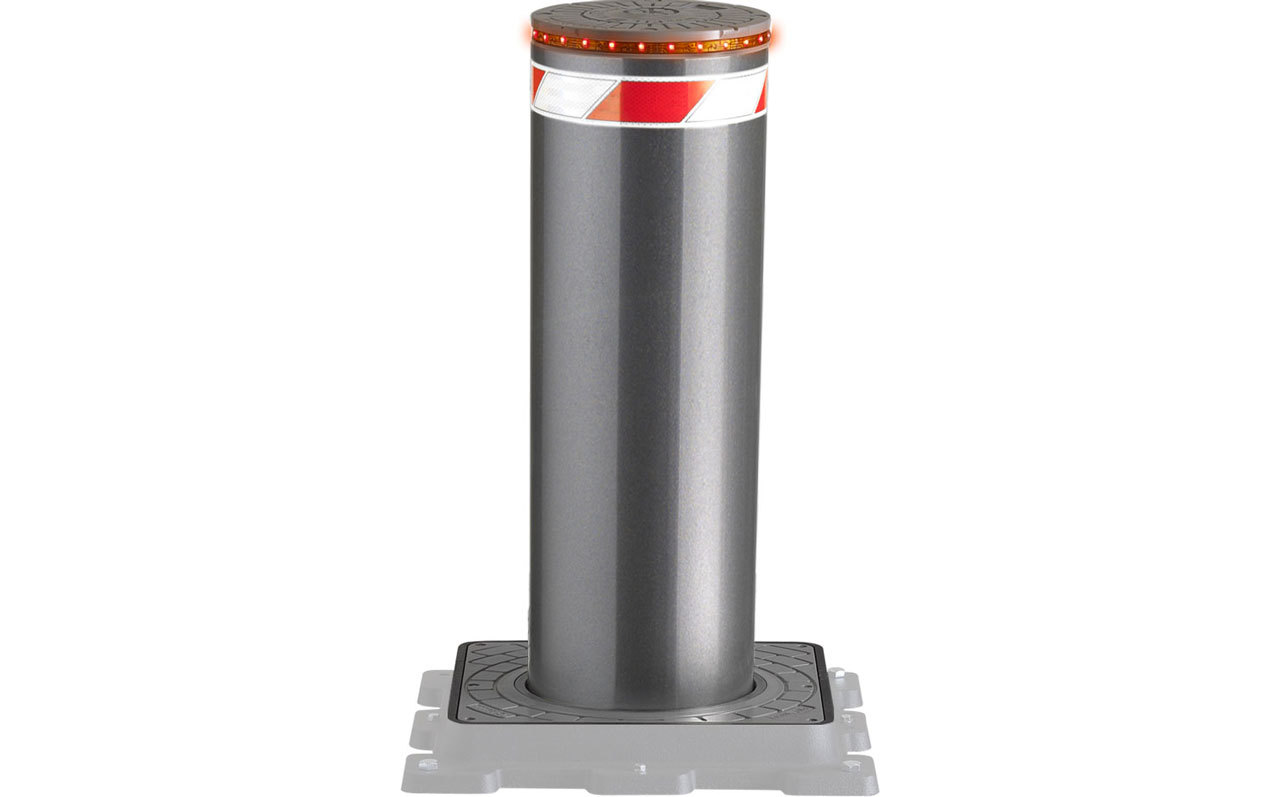

The 220-GS800 Automatic Hydraulic Rising Bollard is a high-security vehicle access control solution designed for intensive use and hostile environments.
It is engineered to physically stop unauthorized vehicles, protect sensitive areas, and manage high-frequency traffic flow at security checkpoints.
Certified to M30 / K4 impact resistance standard (7200kg @ 48km/h), the 220-GS800 bollard provides reliable perimeter protection for sites where security is mission-critical.
Robust Structure & Materials
The bollard cylinder is manufactured from high-strength steel to ensure long-term durability and impact resistance:
304 / 316 stainless steel (brushed finish), or
Q235 steel with RAL color powder coating
The rising section features a 219mm diameter, 6mm thick wall, and 800mm intercept height, ensuring a strong physical barrier against vehicle intrusion.
Optional LED light band and reflective adhesive strips improve visibility in low-light conditions and enhance site safety.
High-Performance Hydraulic Drive
The 220-GS800 uses a hydraulic driving system designed for fast response and continuous operation:
Rising time: 3–5 seconds
Lifting force: 300kg
Designed for high-frequency usage
Built-in emergency lowering function in case of power failure
The system operates reliably in extreme climates, with an operating temperature range from -40°C to +70°C.
Intelligent Control & Integration
The bollard can be integrated with a wide range of access control systems, including:
Remote control
Traffic lights
Inductive loop detectors
Vehicle identification systems
Access control readers
An optional PLC controller allows linkage operation with multiple bollards and intelligent site management.
The control cabinet features self-testing, over-temperature protection, and waterproof outdoor design, making it suitable for permanent outdoor installations.
Typical Applications
The 220-GS800 Automatic Bollard is widely used in:
Government buildings
Airports and transportation hubs
Military bases
Nuclear power plants
Embassies and critical infrastructure
High-security commercial and public facilities
It is especially suitable for high-security vehicle access points requiring fast response and reliable operation.
